Tricuspid valve mean pressure gradient
[mmHg]
Refer to " Manual Trace Measurement ".
TV PPG
Tricuspid valve maximum pressure
gradient [mmHg]
Refer to "Manual Trace Measurement ".
TV Vel
Tricuspid valve v
elocity [cm/s]
Refer to "Velocity Measurement”.
TV PG
Tricuspid valve pressure gradient
[mmHg]
Refer to " Velocity Measurement'.

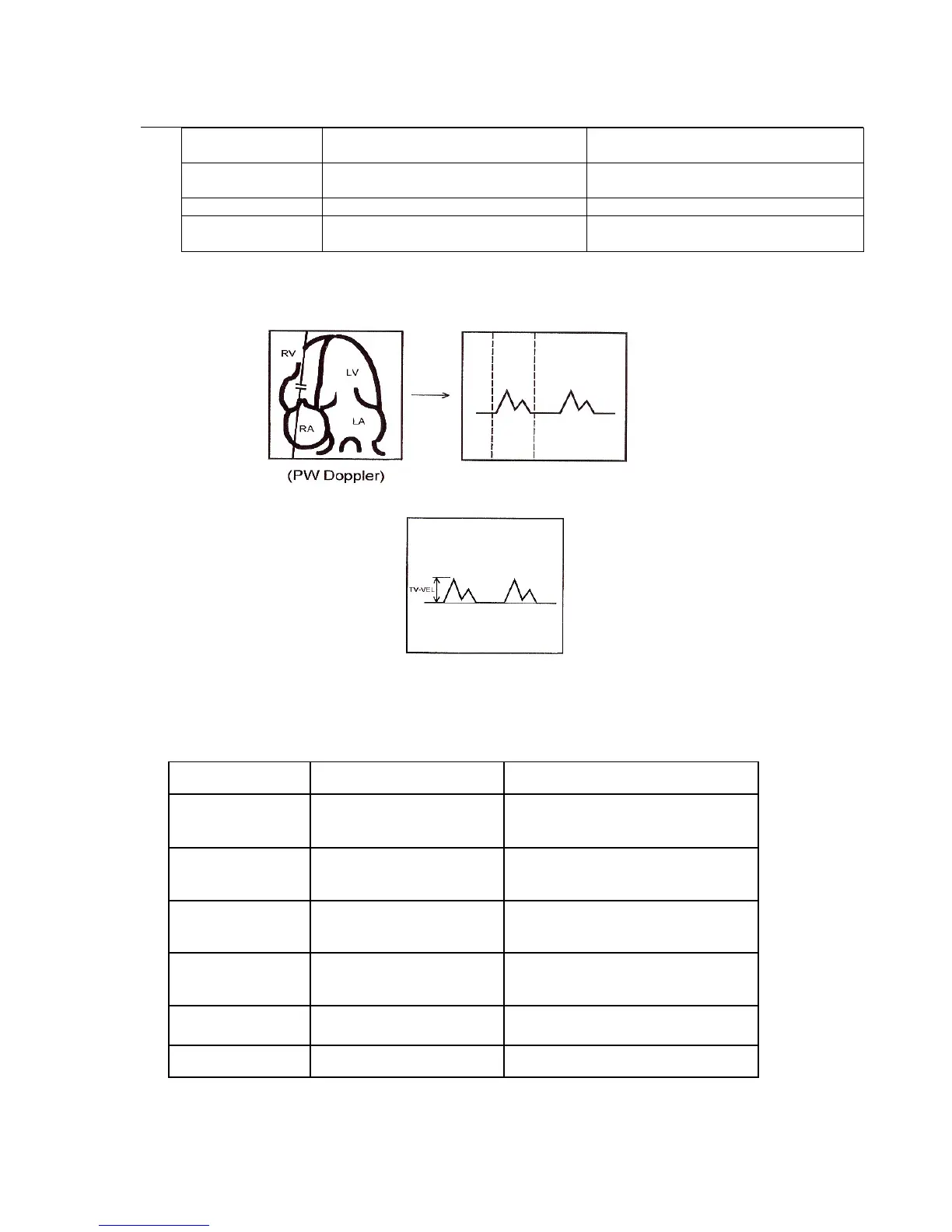

<<Measurement points>>
1) Measure [TV VEL Trace]
2) Measure [TV VEL]
4. PV
Measurement of pulmonary valve function is performed by using a Doppler image.
<<Measurement items>
Meas. item name
Description [Unit]
Meas. method
PV VTI
Pulmonary valve VTI [m]
Refer to "Full Trace Measurement ".
PV VM
Pulmonary valve mean
velocity [cm/s]
Refer to "Full Trace Measurement "
.
PV VP
Pulmonary valve maximum
velocity [cm/s]
Refer to "Full Trace Measurement ".
PV MPG
Pulmonary valve mean
pressure gradient [mmHg]
Refer to "Full Trace Measurement ".
PV PPG
Pulmonary valve maximum
pressure gradient [mmHg]
Refer to “
Velocity
Measurement”
PV Max Vel
Maximum velocity [cm/s]
Refer to "
Velocity
Measurement”
