PATTERN 351-400 Resolution Patterns

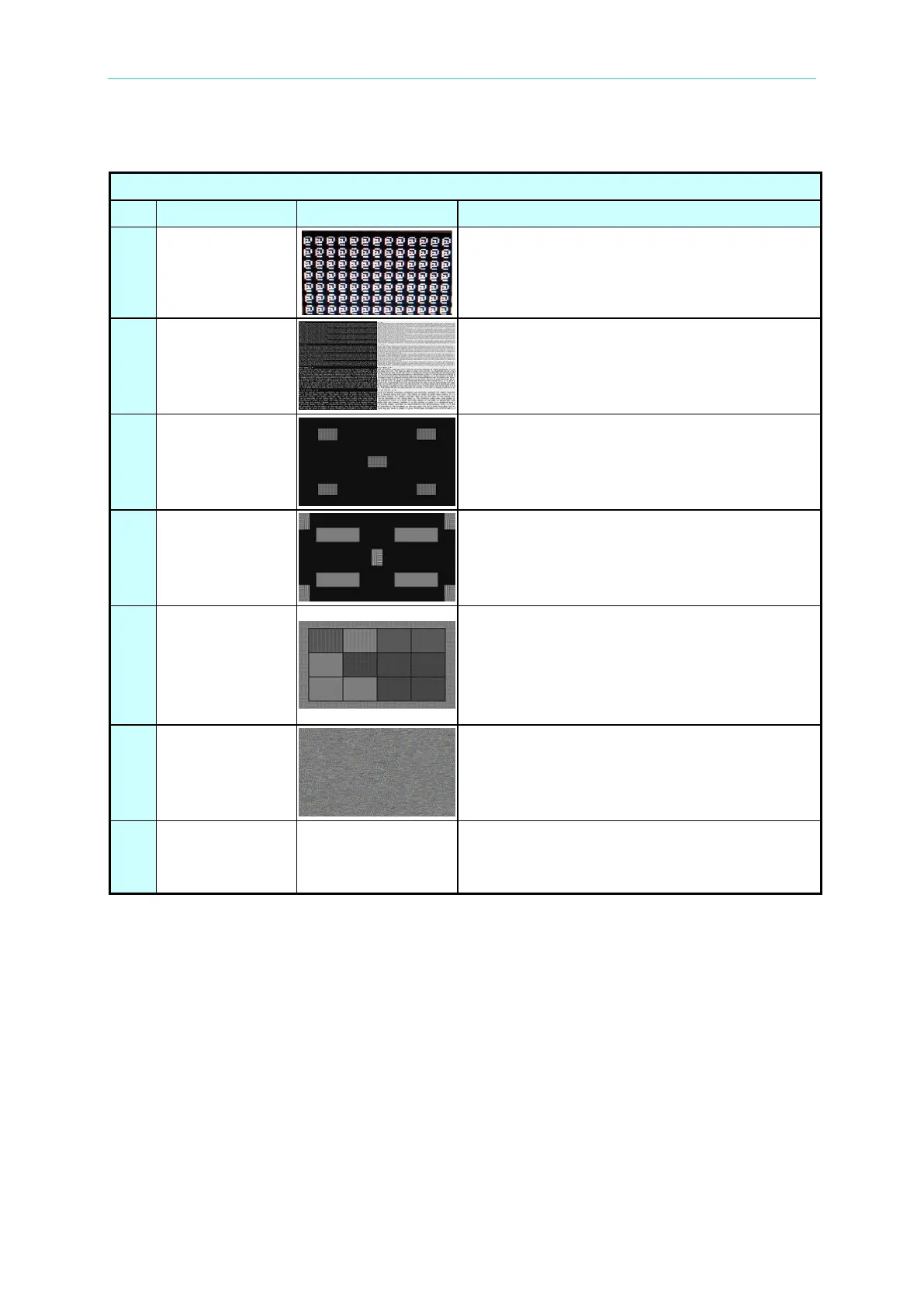

Resolution Pattern (No. 351 ~ No. 400)
NO.
NAME
Description
351
CHARAC/@
This pattern is filled up with @ characters for
Convergence and resolution inspection.
352
SCALED FONT
This pattern is divided into two parts in reversed
colors with 4 types of fonts for resolution and
contrast inspection.
353
FOCUS ME
The 4 corners and center area of the pattern
are filled up with M/E characters for resolution
inspection and project focusing.
354
RESOLUTION 3
The 4 corners and center area of the pattern
are filled in with various alignments of different
lines and inserted 4 dots with blinking for
resolution inspection.
355
RESOLUTION 4
This pattern is composed of various dots and
lines in different alignment for resolution
inspection. Furthermore, it can test the process
capability of Monitor or TV Scaler for various
alignments of dots and lines as well as verify
the algorithm.
356
RANDOM
It is for Digital Video only to testing the eye
pattern. (DVI)
357
~
400
Reserved.
