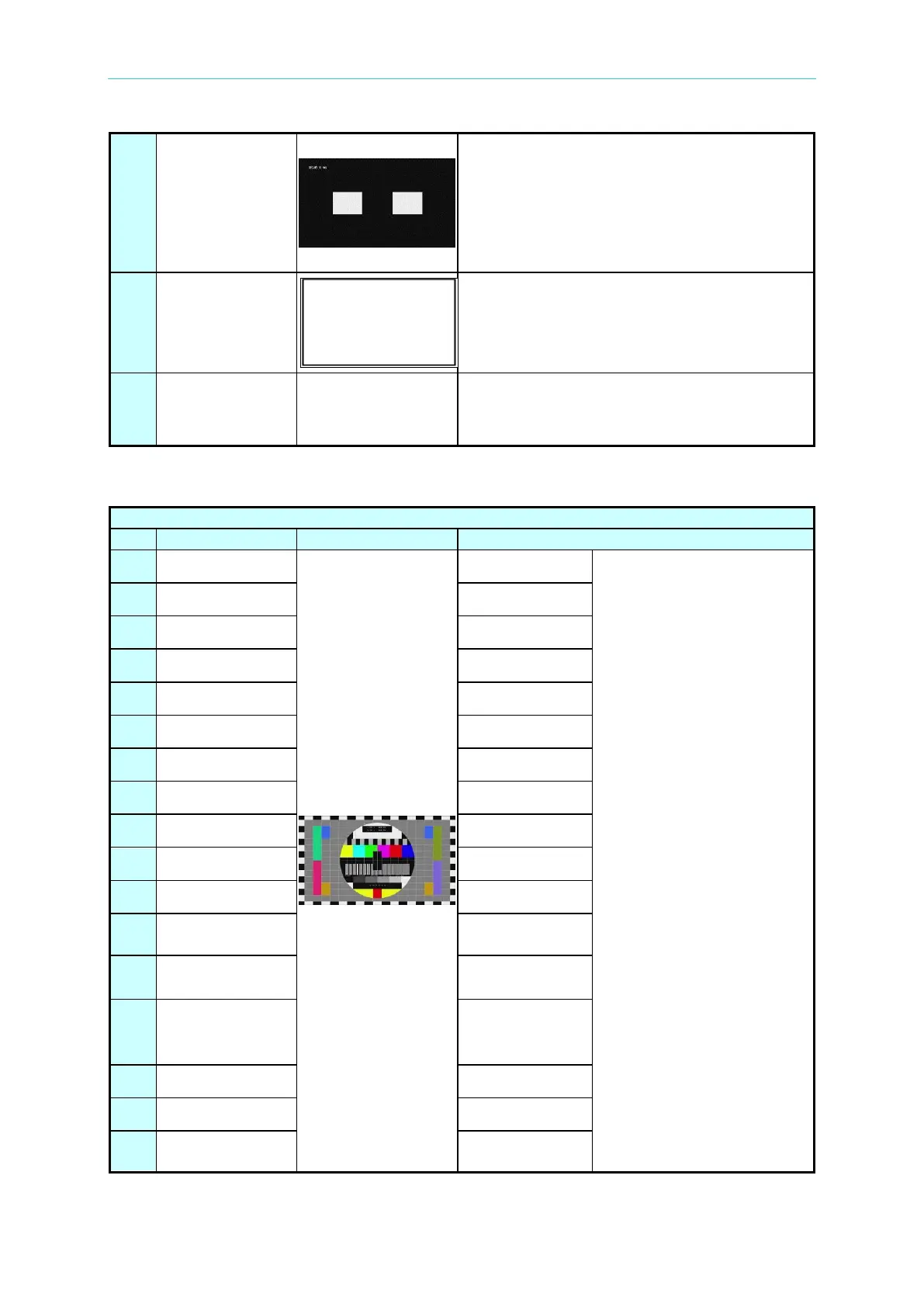

Appendix B Default Patterns List
B-37
The two windows on the pattern start to close
to each other from the left and right frame until
they touched each other. The window’s color
will change, and a sound will generate after a
period of time. The time displays on the upper
left corner and can be modified it in FUNC
LIPSYNC LIPSYNC TIME.
This pattern blinks with sound turned on or
off. The delay between video and audio is
determined by EDID. This pattern can be
easily used to test Lipsync.
PATTERN 601-650 Audio Patterns
Audio Pattern (No. 601 ~ No. 650)
Philips pattern along with
audio is used for this pattern
and the test frequency is
labeled on the top.
2 SEC L – 2SEC R
– 2SEC L/R
SWEEP L VOL
0-2000-0 MV
SWEEP R
VOL2000-0-2000
MV
