Video Pattern Generator 2238 User’s Manual

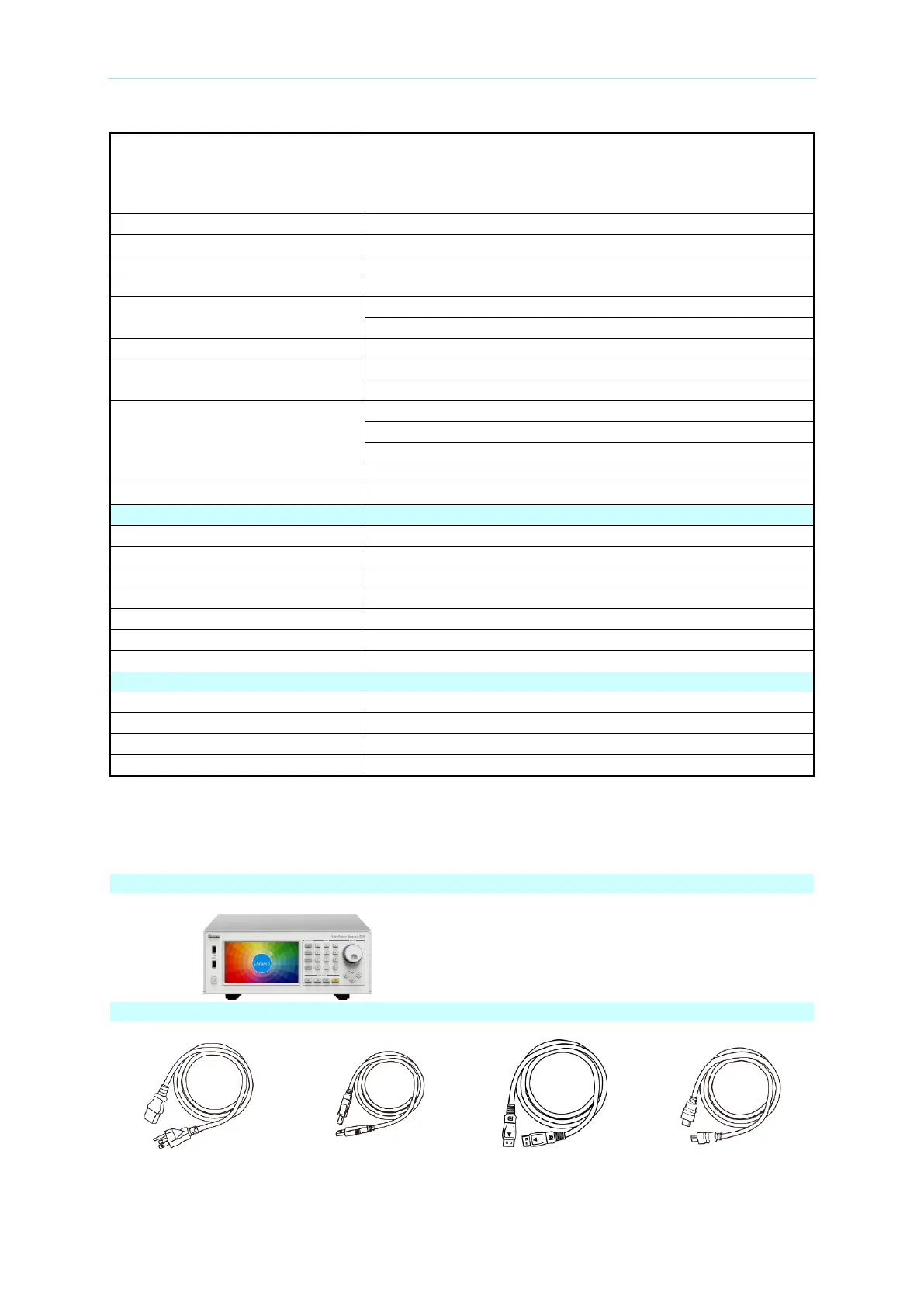

1-4
Side-by-Side (Half)
Frame sequential
Line-by-Line
Checkerboard
Video level
714mV(NTSC), 700mV(PAL/SECAM)
Sync level
300mV
Black level
0 ~100 IRE
Luminance accuracy
± 2%
Chrominance accuracy
NTSC / PAL : ± 3%
SECAM : ± 10 %
Hue accuracy
± 3 degree
Close Caption (NTSC )
C1 / C2 / C3 / C4
T1 / T2 / T3 / T4
V-Chip ( NTSC)
MPAA: G / PG / PG-13 / R / NC-17 / X
FCC: TV-Y / TY-Y7/ TV-G / TY-PG / TY-14 / TV-MA
Canada English: C / C8+ / G / PG / 14+ / 18+
Canada France: G / 8ans+ / 13ans+ /16ans+ /18ans
Teletext ( PAL)
System B Level 1 , 1.5
AUDIO
Channel
2 Channel ( R , L)
Sample rate
32 , 44.1, 48, 88.2, 96, 176.4, 192KHz
Amplitude
0V ~ 2V, 50 mV/step ( at 600 Ohms Load)
Frequency
10 Hz ~20 KHz, 1 Hz/ step
T.H.D
0.2 %
Output waveform
Sin wave
Special control mode
Tone / Sweep / Mute / Repeat / Play Time
CONNECTOR
Analog RGB
D-sub 15 pin x 1
Component
RCA x 3
TV
BNC x 1 / YC x 1
AUDIO
RCA x 2
1.3 Standard Equipment and Accessories
Standard Equipment
2238 VPG
Standard Accessories (Cables)
Power Cord
USB B type
DP Cable
HDMI Cable
