Video Pattern Generator 2238 User’s Manual
B-36

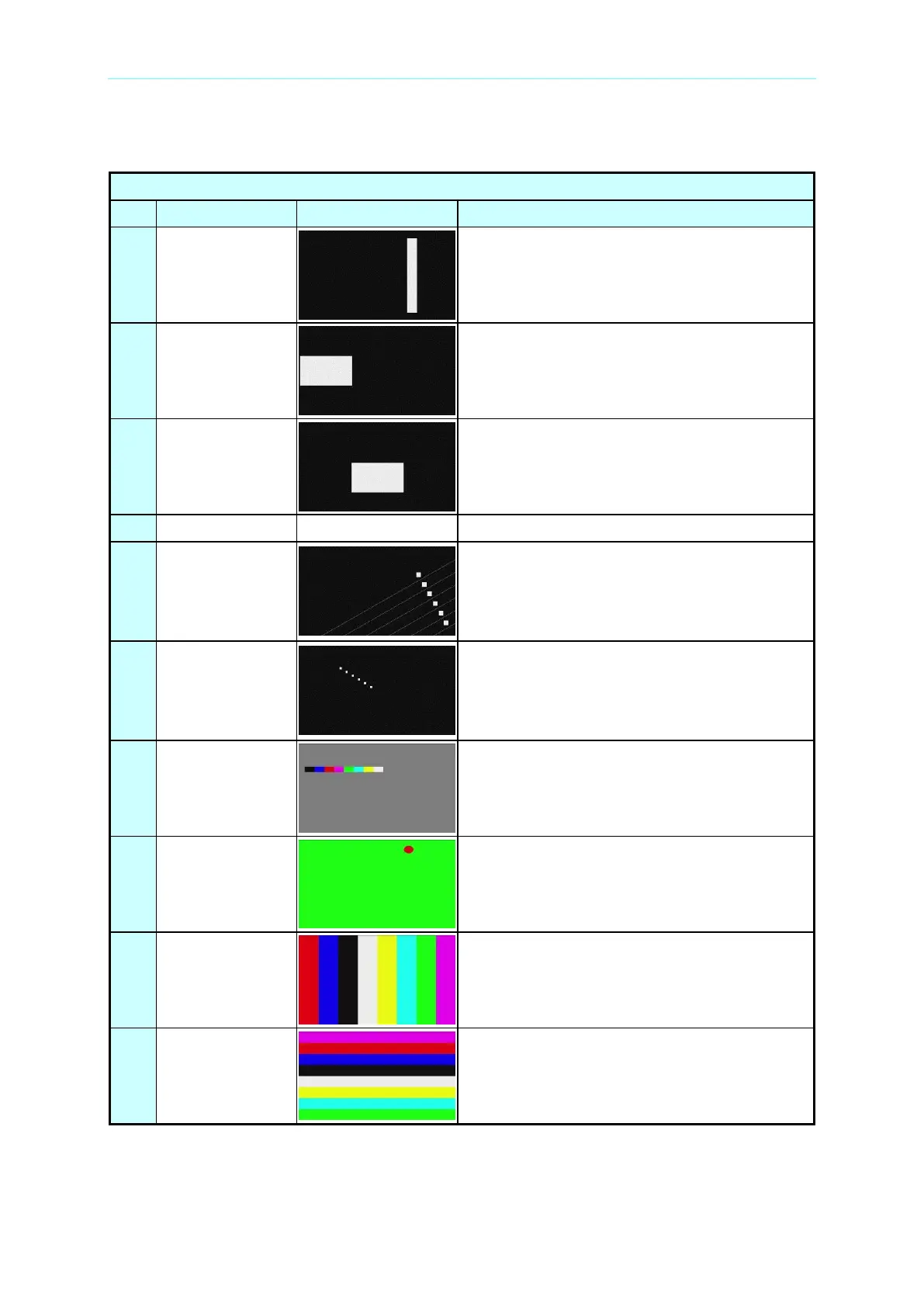

PATTERN 551-600 Dynamic Patterns
Dynamic Patterns (No. 551 ~ No. 600)
NO.
NAME
Description
551
MOTION BAR
The white bar in the pattern moves from left to
right in a speed of 9 pixels per frame to
evaluate the residual image of TV motion
picture.
552
H WINDOW
The white window in the pattern moves from
left to right and vice versa in high speed of 126
pixels per frame to evaluate the residual image
of TV motion picture.
553
V WINDOW
The white window in the pattern moves up and
down and vice versa in high speed of 126 lines
per frame to evaluate the residual image of TV
motion picture.
554
Reserved.
555
MOTION-3
The pattern has 6 white boxes moving in
diagonal direction. The speed of the corner
box is 1 pixel/frame and the moving interval of
each box is 1 time faster to evaluate the
residual image of TV motion picture.
556
MOTION-4
The pattern has 6 white boxes moving in
circle. The speed of the center box is 1
pixel/frame and the moving interval of each
box is 1 time faster to evaluate the residual
image of TV motion picture.
557
MOTION-5
An 8- color 100%ColorBar is moving in a
speed of 8 pixels per frame on a screen of
50% luminance background to evaluate the
residual image of TV motion picture.
558
FLYING BALL
A red ball is moving in a speed of 9 pixels per
frame on a screen with green background to
evaluate the residual image of TV motion
picture.
559
SCROLL-HBAR
The horizontal 8 colors 100%ColorBar
changes color repeatedly to test the TV
response speed to color change.
560
SCROLL-VBAR
The vertical 8 colors 100%ColorBar changes
color repeatedly to test the TV response speed
to color change.
