Video Pattern Generator 2238 User’s Manual
B-44
PATTERN 901-1000 3D Patterns
3D Patterns
Pattern No.
3D static test screen
901~920 (20 sets)
3D static display pictures (3D Max)
931~940 (10 sets)
3D real static photos
921~930 (10 sets)
3D dynamic display animation (3D Max)
940~950 (10 sets)
3D live video
N.A

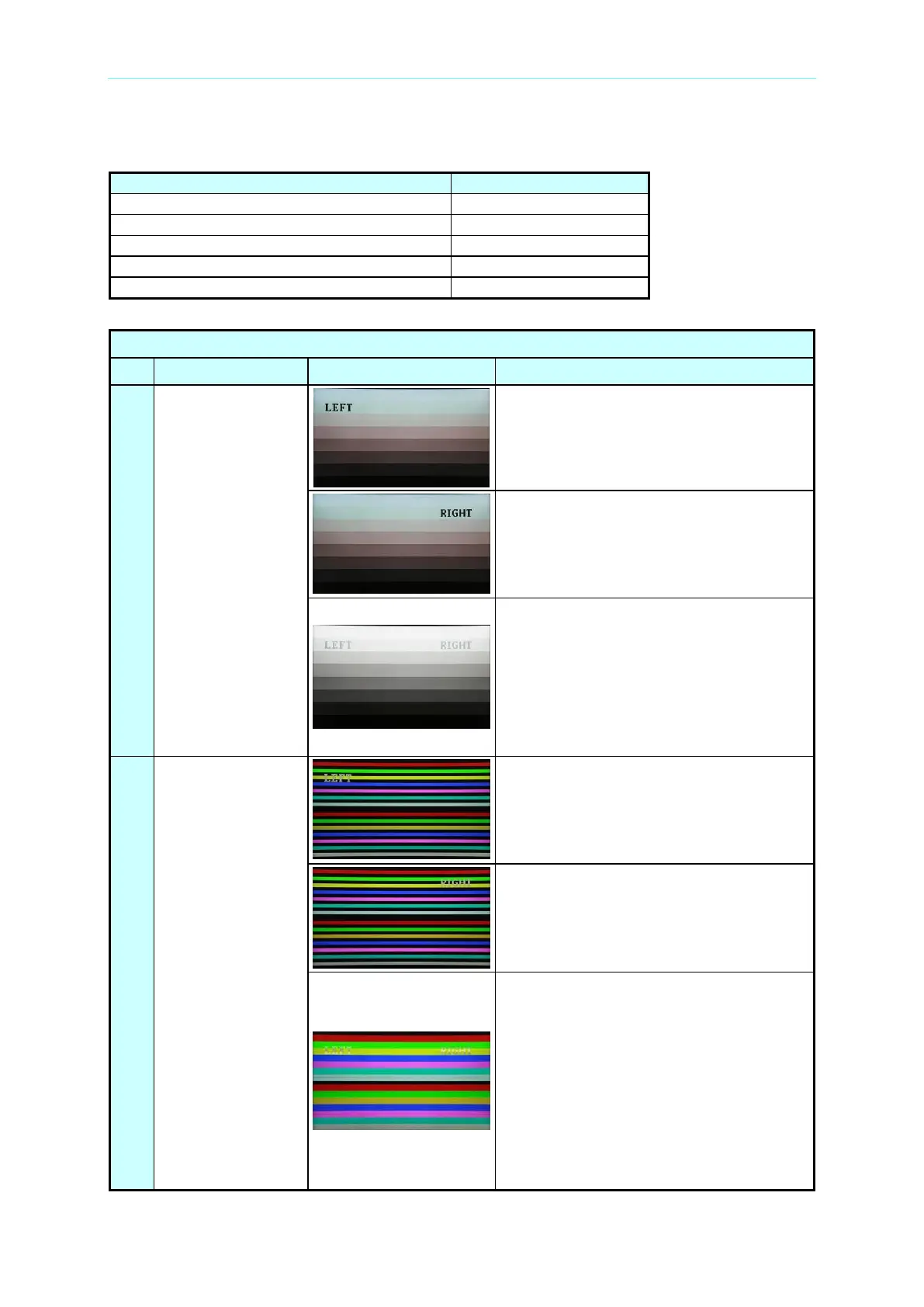

3D Pattern (No. 901 ~ No. 1000)
NO.
NAME
Description
901
3D.L.R.CHECK
The pattern for left eye is a vertical
8-grayscale (100  0%); the brightness
is the same as the pattern for right eye.
The pattern for right eye is a vertical
8-grayscale (100  0%); the brightness is
the same as the pattern for left eye.
When a 3D image is composed, the
vertical 8-grayscale can be viewed
directly without using 3D glasses. The
text “LEFT” and “RIGHT” provide a quick
inspection to check if the left/right eye
images are existed. The vertical
8-grayscale can test grayscale continuity
in 3D mode.
902
3D.MERGE
The pattern for left eye is a color photo
signal in fixed-pitch which interlaced with
the right eye pattern.
The pattern for right eye is a color photo
signal in fixed-pitch which interlaced
with the left eye pattern.
When a 3D image is composed, the
vertical 8-grayscale can be viewed
directly without using 3D glasses. The
text “LEFT” and “RIGHT” provide a
quick inspection to check if the left/right
eye images are existed. The color bar
signal provides 3D mode color display
for testing. The horizontal color bar
interlaced position can inspect if the
horizontal position is correct after the
3D left and right patterns are composed
