Video Pattern Generator 2238 User’s Manual
B-52

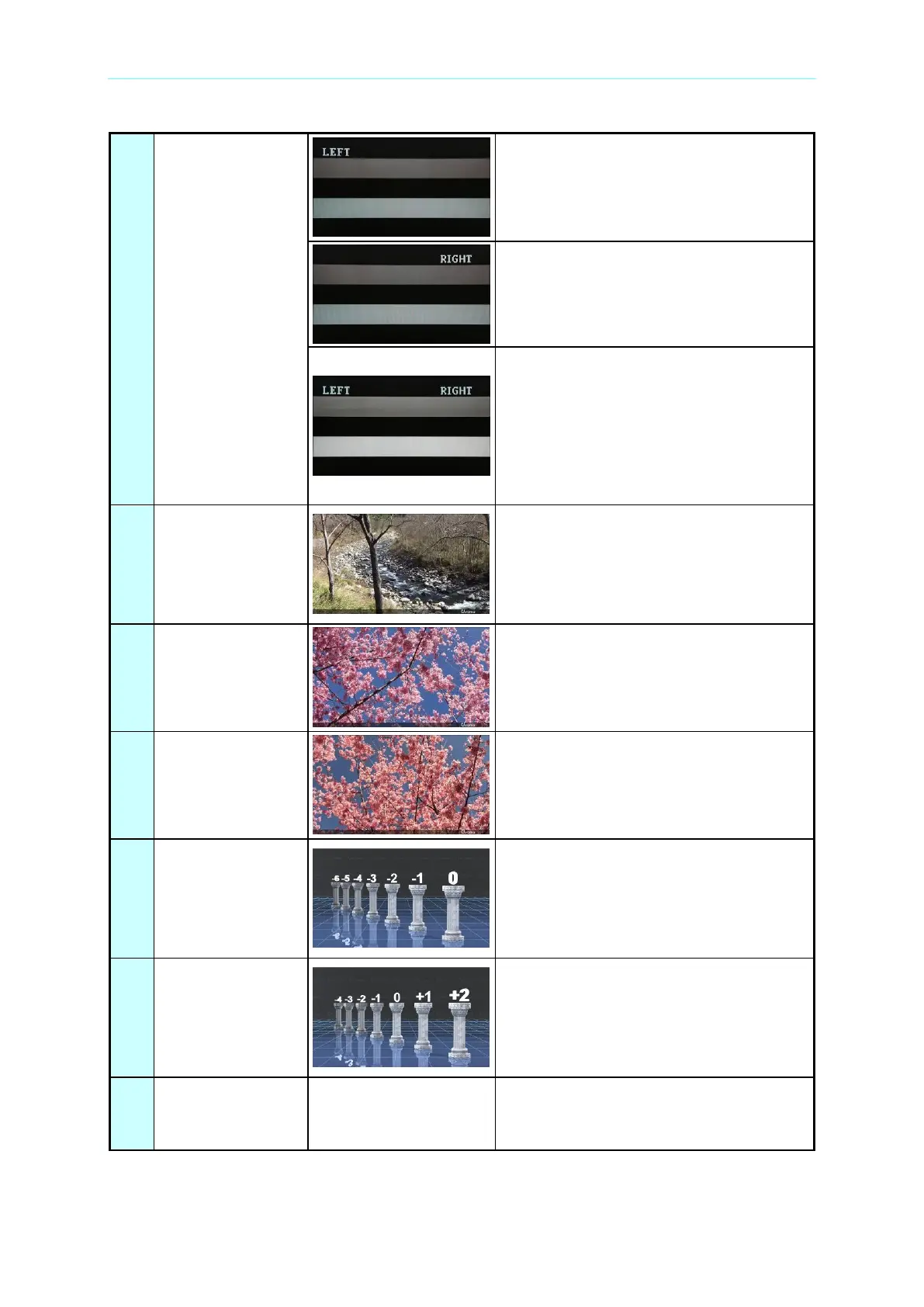

The upper half of the pattern for left eye is
composed of dots and the lower half is
composed of lines. It is the same as the
pattern for right eye.
*Dots and lines are all started from odd.
The upper half of the pattern for right
eye is composed of dots and the lower
half is composed of lines. It is the same
as the pattern for left eye.
*Dots and lines are all started from odd.
When a 3D image is composed, the
white screen can be viewed without
using 3D glasses. The text ”LEFT”
and ”RIGHT” provide a quick inspection
to check if the left/right eye images are
existed. The dots and lines alignments
can be used for resolution test in 3D
mode.
It is a real 3D image. The branches
spread at the front and middle with a
background of river and dry forest show
the depth of field space in 3D. It is to
evaluate the front, middle and rear depth
of field for 3D.
It is a real 3D image. The cherry
blossoms spread in the image are vivid
and multi-layered. It is to evaluate the
rendered effect of 3D layer and detail.
It is a real 3D image. The cherry
blossoms spread in the image are vivid
and multi-layered. It is to evaluate the
rendered effect of 3D layer and detail.
It is a 3D depth of field test image using
pillars with scale to mark equidistant
depth of field. It is focused on 0 which is
located on the right of the pattern. It is to
evaluate the expression of 3D depth of
field.
It is a 3D depth of field test image using
pillars with scale to mark equidistant
depth of field. It is focused on 0 which is
located at the center of the pattern. It is to
evaluate the expression of 3D depth of
field.
