Chrysler Concorde 1993 - BRAKING DISC (ROTOR) REFINISHING LIMITS

thickness markings may be located on the disc as
shown in (Fig. 8) or on an alternate surface.
All rear braking discs have markings for mini-
mum allowable thickness and maximum allow-
able diameter cast on an un-machined surface of
the braking disc (Fig. 9). The thickness markings
may be located on the disc as shown in (Fig. 9) or
on an alternate surface.
This marking includes 0.76 mm (0.030 inch) allow-
able disc wear beyond the recommended 0.76
mm(0.030 inch) of disc refacing.

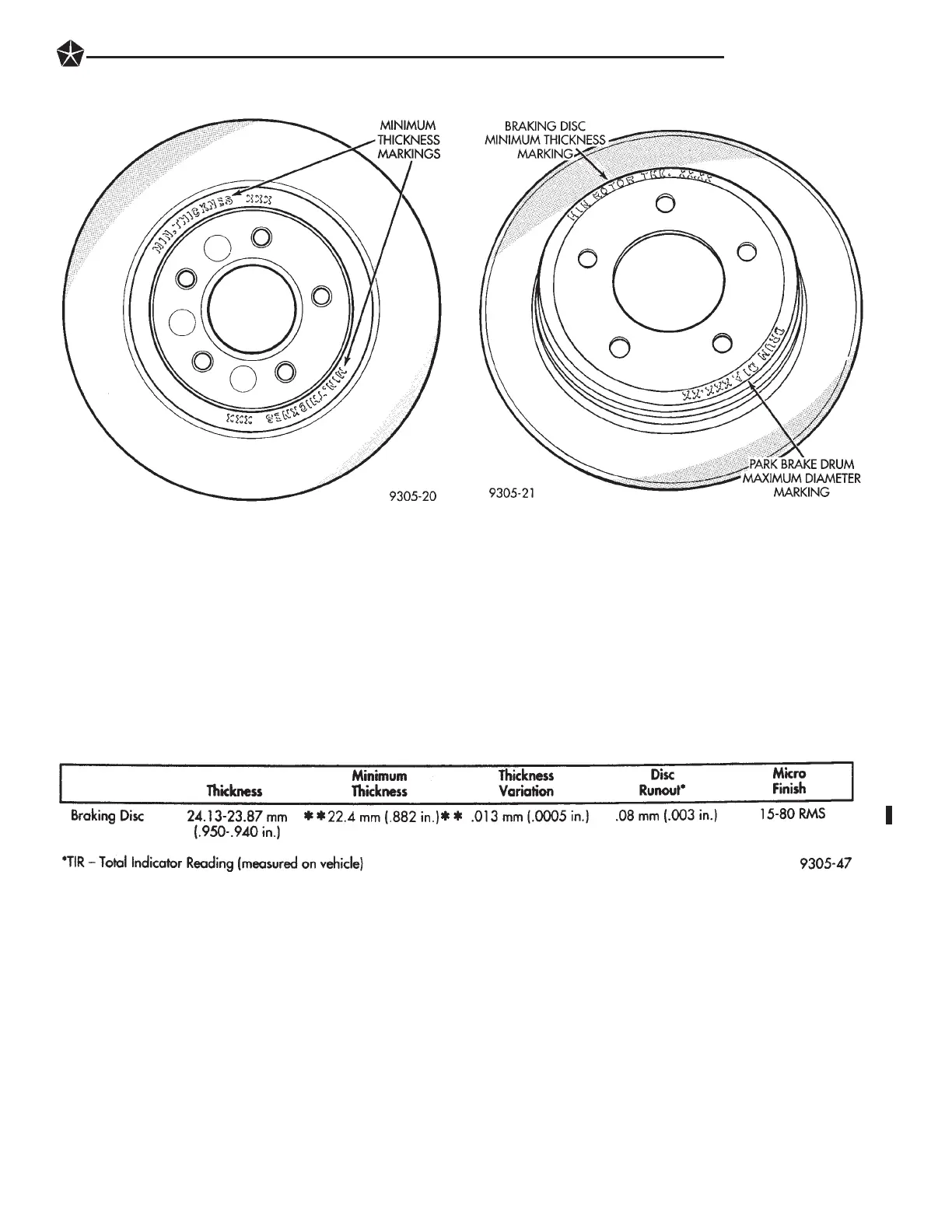

Fig. 8 Front Braking Disc Minimum Thickness
Markings
Fig. 9 Rear Braking Disc Minimum Thickness
Markings
BRAKING DISC (ROTOR) REFINISHING LIMITS
BRAKES 5 - 49
1993 Concorde/Intrepid/Vision
Publication No. 81-270-3140
TSB 05-12-94 June 10, 1994
