(7) Remove the coil spring and the spring compres-
sor as an assembly from the strut unit (Fig. 5).
(8) Remove lower spring isolator from strut assem-
bly lower spring seat (Fig. 6).
Inspect all disassembled components for signs of
abnormal wear or failure replacing any components
as required. Inspect strut unit for signs of abnormal
oil leakage and for loss of gas charge. To check for
loss of gas charge in strut unit. Push strut shaft into
body of strut and release, strut shaft should return to
its fully extended position. If strut shaft does not re-
turn to its fully extended position replace strut unit.
STRUT REASSEMBLY
(1) Install original or new, lower spring isolator on
strut unit (Fig. 6).
(2) Install compressed coil spring onto strut assem-
bly aligning paint mark on spring with paint mark
on strut assembly (Fig. 7).
(3) Install the strut bearing into the bearing seat
(Fig. 8). Bearing must be installed into seat with
notches on bearing facing down (Fig. 8).

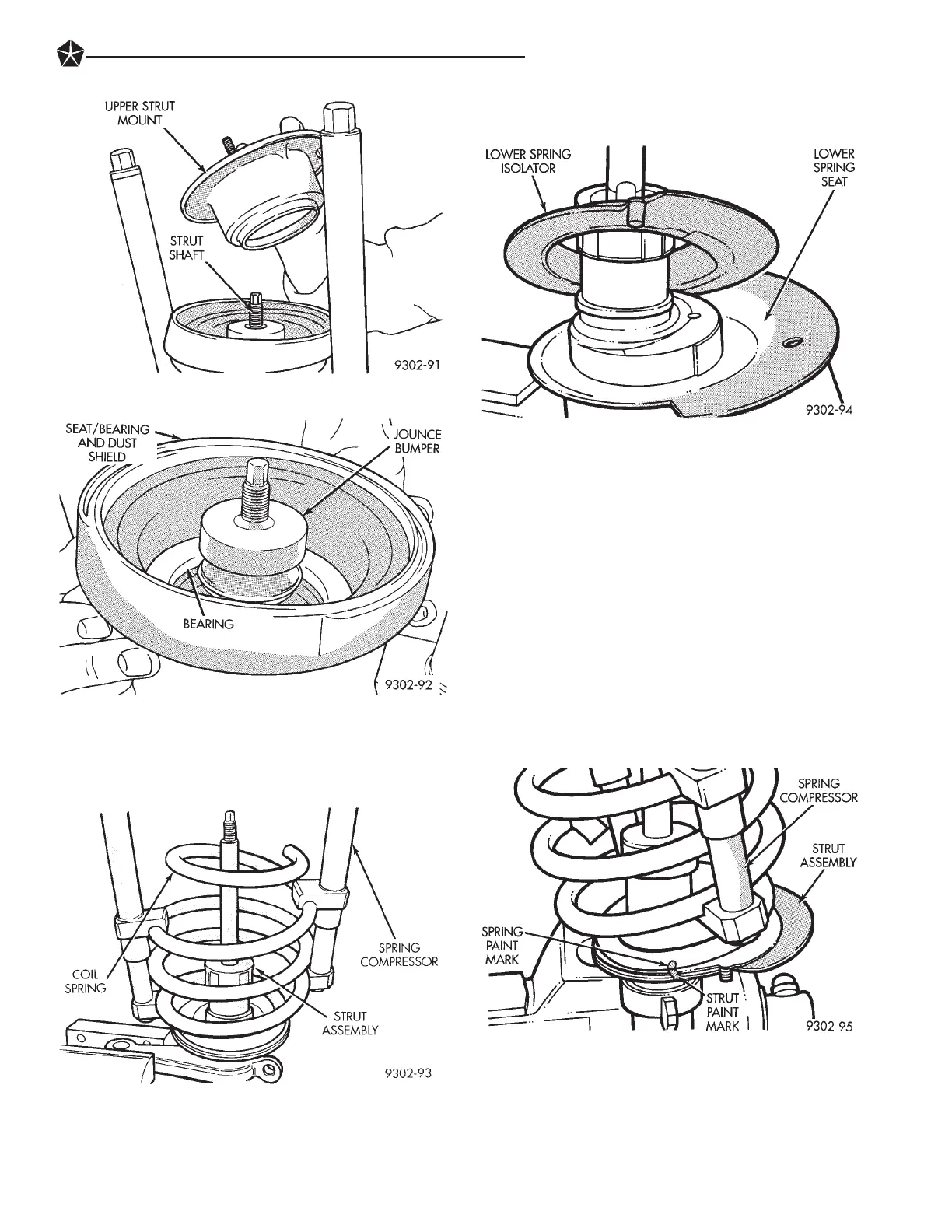

Fig. 3 Upper Strut Mount Removal
Fig. 4 Jounce Bumper and Seat/Bearing And Dust
Shield
Fig. 5 Removing Coil Spring And Compressor From
Strut
Fig. 6 Lower Spring Isolator
Fig. 7 Spring Installation On Strut Assembly
