SIDE MARKER, PARK AND TURN SIGNAL LAMP
BULB
REMOVAL (FIG. 2)
(1) Release hood latch and open hood.
(2) Disengage clip holding lamp to headlamp mod-
ule.
(3) Pull lamp forward and separate lamp from ve-
hicle.
(4) Remove socket from lamp.
(5) Pull bulb from socket.
INSTALLATION
(1) Push bulb into socket.
(2) Install socket in lamp.
(3) Place lamp in position on vehicle.
(4) Push lamp rearward and engage clip to hold
lamp to headlamp module.
(5) Verify lamp operation.
FOG LAMP BULB
REMOVAL (FIG. 3)
(1) Remove fog lamp from vehicle.
(2) Remove rear cover from fog lamp.
(3) Disengage wire clip holding bulb in fog lamp.
(4) Hinge wire clip out of bulb removal path.
(5) Pull bulb from lamp.
(6) Disengage wire connector from body wire har-
ness.
INSTALLATION
CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result.
(1) Engage wire connector to body wire harness.
(2) Insert bulb into lamp.
(3) Hinge wire clip over bulb base.
(4) Engage wire clip to hold bulb in fog lamp.
(5) Install rear cover on fog lamp.
(6) Install fog lamp on vehicle.
(7) Verify fog lamp operation and alignment.
CENTER HIGH MOUNTED STOP LAMP BULB
REMOVAL (FIG. 4)
(1) Release trunk latch and open trunk lid.
(2) From under rear deck panel, remove lamp
socket from CHMSL.
(3) Pull bulb from socket.
INSTALLATION
(1) Insert bulb into socket.
(2) Install lamp socket in CHMSL.
(3) Verify CHMSL operation.
TAIL, STOP, BACK-UP AND TURN SIGNAL LAMP
BULB
REMOVAL (FIG. 5)
(1) Remove tail lamp from vehicle.
(2) Remove socket from lamp.
(3) Pull bulb from socket.
INSTALLATION
(1) Insert bulb into socket.
(2) Install socket in lamp.
(3) Install tail lamp in vehicle.

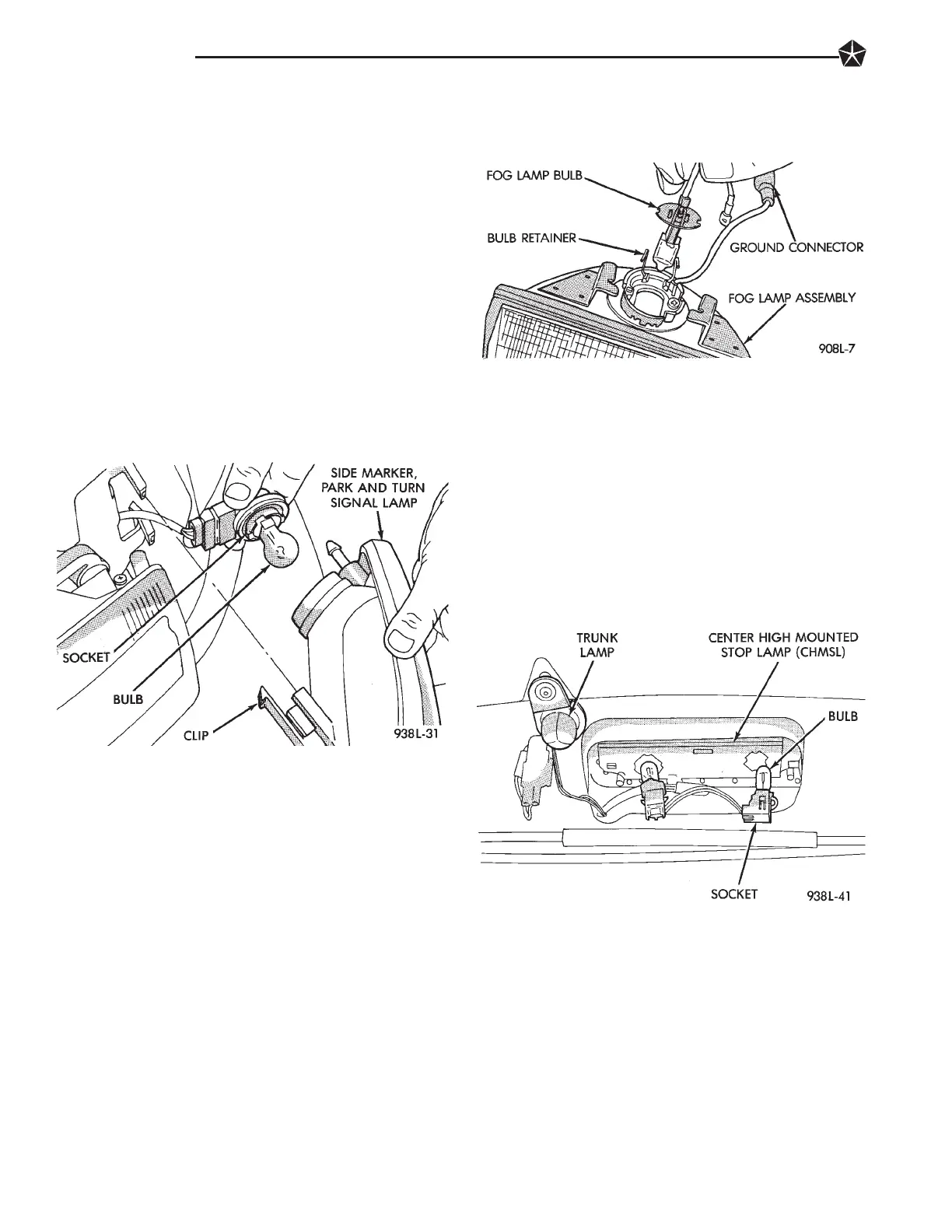

Fig. 2 Side Marker, Park and Turn Signal Bulb
Fig. 3 Fog Lamp Bulb
Fig. 4 CHMSL Bulb
