in On or Accessory position, push deck lid unlock
switch. Should latch fail to lock or unlock replace
latch assembly.
DECK LID SOLENOID REMOVAL
(1) Raise trunk lid to the full up position.
(2) Remove latch cover attaching screws then re-
move cover.
(3) Remove two mounting solenoid screws and re-
mote key cable retainers then remove solenoid.
(6) For installation reverse above procedures.
KEYLESS ENTRY SYSTEM
The system allows locking and unlocking of vehicle
door(s) and trunk lid by remote control using a hand
held radio transmitter. The ignition switch must be
OFF before the trunk lid can be unlocked with the
transmitter.
The receiver may receive signals from two trans-
mitters. Each transmitter has its own code, and the
code has been stored in memory. If the transmitter is
replaced or a second transmitter is add, the code on
both units have to be placed in memory.
OPERATION
The transmitter has three buttons for operation
(Fig. 3). They are LOCK, UNLOCK and TRUNK re-
lease.
• The UNLOCK button will unlock the driver’s door
and enable illuminated entry. Pushing and releasing
the button once will unlock the driver’s door. Push-
ing and releasing the button two times, within five
seconds interval, will unlock all doors.
• The LOCK button will lock all doors. Upon press-
ing the LOCK button, the horn will sound a short
CHIRP to notify that the all door lock signal was re-
ceived and set.
• The TRUNK UNLOCK button will slightly ajar
the trunk lid.
The receiver is capable of retaining Vehicle Access
Code (VAC) even when power is removed.
Each remote keyless entry module (RKE) must
have at least one and no more than two transmitters.
TRANSMITTER CONTROL RANGE
Operation range is within 9 meters (30 ft.) of the
receiver.
TRANSMITTER BATTERY
The transmitter has two three volt batteries, which
can be removed and replaced without special tools.
The battery is available at local retail stores and rec-
ommended battery is Duracell DL 2016 or equiva-
lent. Battery life is about one to two years (Fig. 3).
PROGRAM REMOTE KEYLESS ENTRY
TRANSMITTER
(1) Remove the upper center bezel from the instru-
ment panel and locate the traction control black con-
nector (Fig. 4). The connector will either be
connected to the switch or the back of the plastic
housing. Disconnect the connector.
(2) Turn ignition switch to the ON position.
(3) Ground pin 4 of the traction control connector
(Fig. 5). This is the programming line for the Remote
Keyless Entry Module. The door locks will lock and
unlock, to indicate the receiver is ready to receive
transmitter code. The trunk solenoid will not cycle at
this time.
(4) Press any button on the transmitter to set code.
The locks will cycle to confirm programming. If there

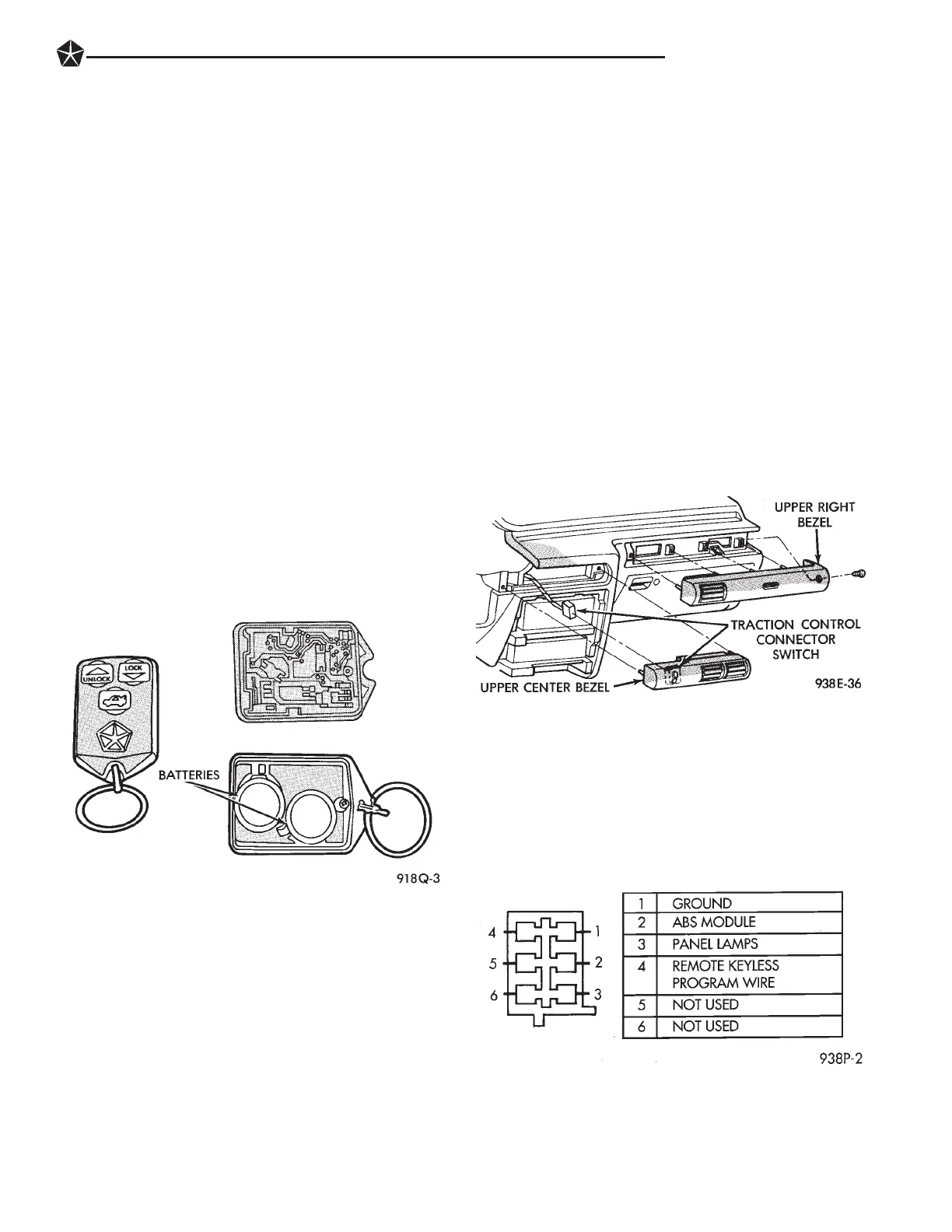

Fig. 3 Transmitter
Fig. 4 Upper Center Bezel
Fig. 5 Traction Control Switch Connector
POWER LOCKS 8P - 3
