(7) Lower vehicle and lower engine and transaxle
onto cradle.
(8) Raise vehicle.
(9) Install bolts to hold transaxle crossmember to
cradle.
(10) Lower vehicle.
(11) Remove engine support device.
(12) Install nuts to hold engine mounts to cradle.
(13) Align front suspension if necessary.
FRAME DIMENSIONS
Frame dimensions are listed in metric scale then
converted to inch scale listed in parenthesis. All di-
mensions are from center to center of Principal Lo-
cating Point (PLP), or from center to center of PLP
and fastener location.
VEHICLE PREPARATION
Position the vehicle on a level work surface. Using
screw or bottle jacks, adjust the vehicle PLP heights
to the specified dimension above a level work sur-
face. Vertical dimensions can be taken from the work
surface to the locations indicated (Fig. 5, 6, 7 and 8).

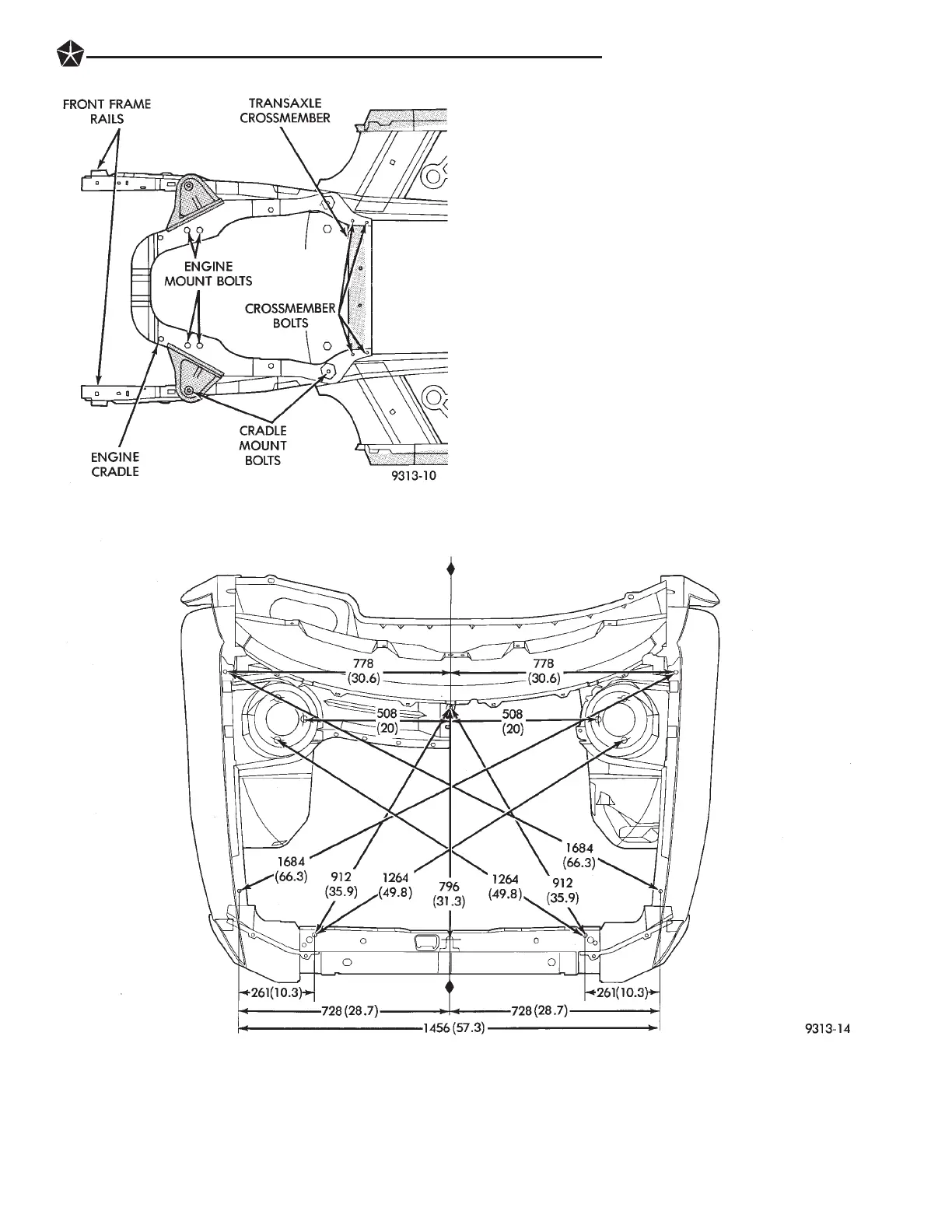

Fig. 4 Engine Cradle
Fig. 5 Engine Compartment Top View
FRAME AND BUMPERS 13 - 3
