(3) Install bolts to hold front of the seat track to
floor kick-up.
(4) Engage front seat wire harness connector to
body harness connector.
(5) Verify front seat operation.
FRONT SEAT TRACK AND RECLINER
REMOVAL (FIG. 67 AND 68)
(1) Remove front seat from vehicle.
(2) Remove seat cushion side cover and disconnect
power seat switch, if equipped.
(3) Turn bottom of seat upward.
(4) Remove bolts holding backrest recliners to seat
back.
(5) Remove bolts holding seat back to cushion.
(6) Separate seat back from cushion.
(7) Remove bolts holding seat track to cushion frame.
(8) Separate seat track from seat cushion.
INSTALLATION
(1) Place seat track In position on seat cushion.
(2) Install bolts to hold seat track to cushion frame.
(3) Place seat back in position on cushion.
(4) Install bolts to hold seat back to cushion.
(5) Install bolts to hold backrest recliners to seat
back.
(6) Turn bottom of seat downward.
(7) Install seat cushion side cover and engage
power seat switch, if equipped.
(8) Install front seat from vehicle.
FRONT SEAT BELT BUCKLE
REMOVAL (FIG. 69)
(1) Remove front seat as necessary to gain access
to seat belt buckle anchor bolt.
(2) Remove bolt holding buckle and reinforcement
to front seat track.
(3) Separate seat belt buckle from vehicle.
INSTALLATION
(1) Place seat belt buckle in position on vehicle.
(2) Install bolt to hold buckle and reinforcement to
front seat track or floor.
(3) Install front seat, if it was removed.

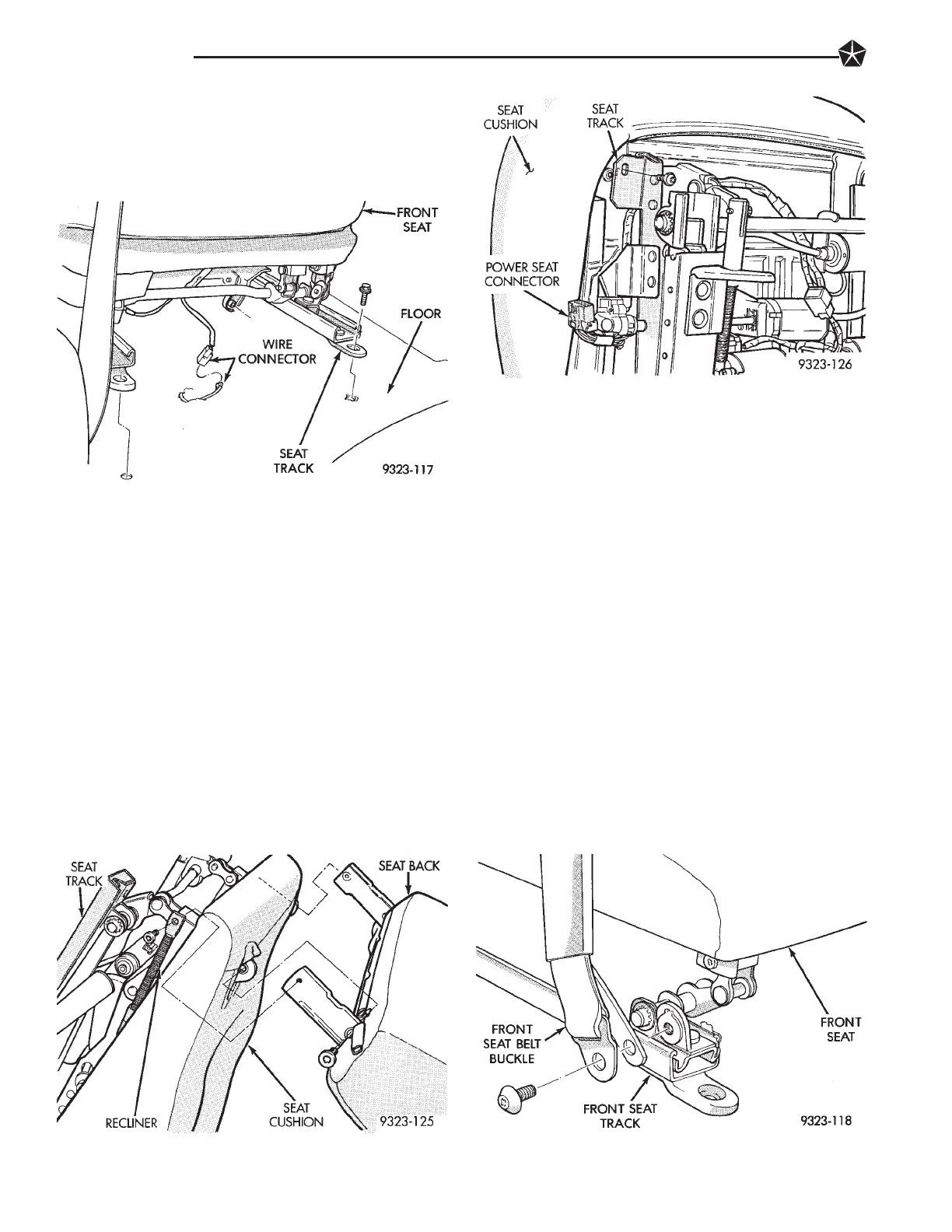

Fig. 67 Recliner Pivot Bolt
Fig. 68 Front Seat Track—Typical
Fig. 66 Front Seat—Typical
Fig. 69 Front Seat Belt Buckle—Typical
