REPLACE
(1) Install park brake cable assembly, through ca-
ble mounting in park brake pedal mechanism.
(2) Align park brake cable slug with attaching
hole on park brake assembly (Fig. 20). Install park
brake cable into cable attaching hole in park brake
assembly, and rotate cable into place. Be sure cable
is properly seated in the cam surface track of foot le-
ver assembly (Fig. 20).
(3) Install park brake cable to park brake pedal
mechanism retaining clip (Fig. 21). Be sure retaining
clip is fully installed on park brake cable.
(4) Install park brake pedal mechanism onto the 2
loosened mounting bolt on cowl panel (Fig. 22). In-
stall the park brake pedal assembly retaining bolt
into door frame (Fig. 22). Torque all 3 park brake as-
sembly mounting bolts to 27 NIm (19 ft. lbs.).
(5) Connect the brake warning light wire from ve-
hicles wiring harness, onto switch located on park
brake pedal mechanism (Fig. 22).
(6) Route front park brake cable along floor of ve-
hicle. Install end of front park brake cable into
mounting hole in reaction bracket. Install front park
brake cable to reaction bracket retaining clip. Tap
retaining clip with hammer until fully installed on
cable. Install front park brake cable into equalizer
(Fig. 23).
(7) Install the park brake cable routing clip to
floor pan attaching screw (Fig. 24). Torque the rout-
ing clip to floor pan attaching screw to 4 NIm (35 in.
lbs.). Install front park brake cable into routing clips
on floor pan crossmember.
(8) Ensure that park brake cable is properly routed
in cam surface track of park brake pedal assembly
(Fig. 25). Using a pair of pliers, firmly grasp lock pin
previously installed in park brake mechanism. Re-
move lock pin from park brake pedal mechanism, us-
ing a firm and rapid pull. When locking pin is
removed from park brake pedal mechanism, the park
brake mechanism and park brake cables will auto-
matically adjust. See parking brake adjustment

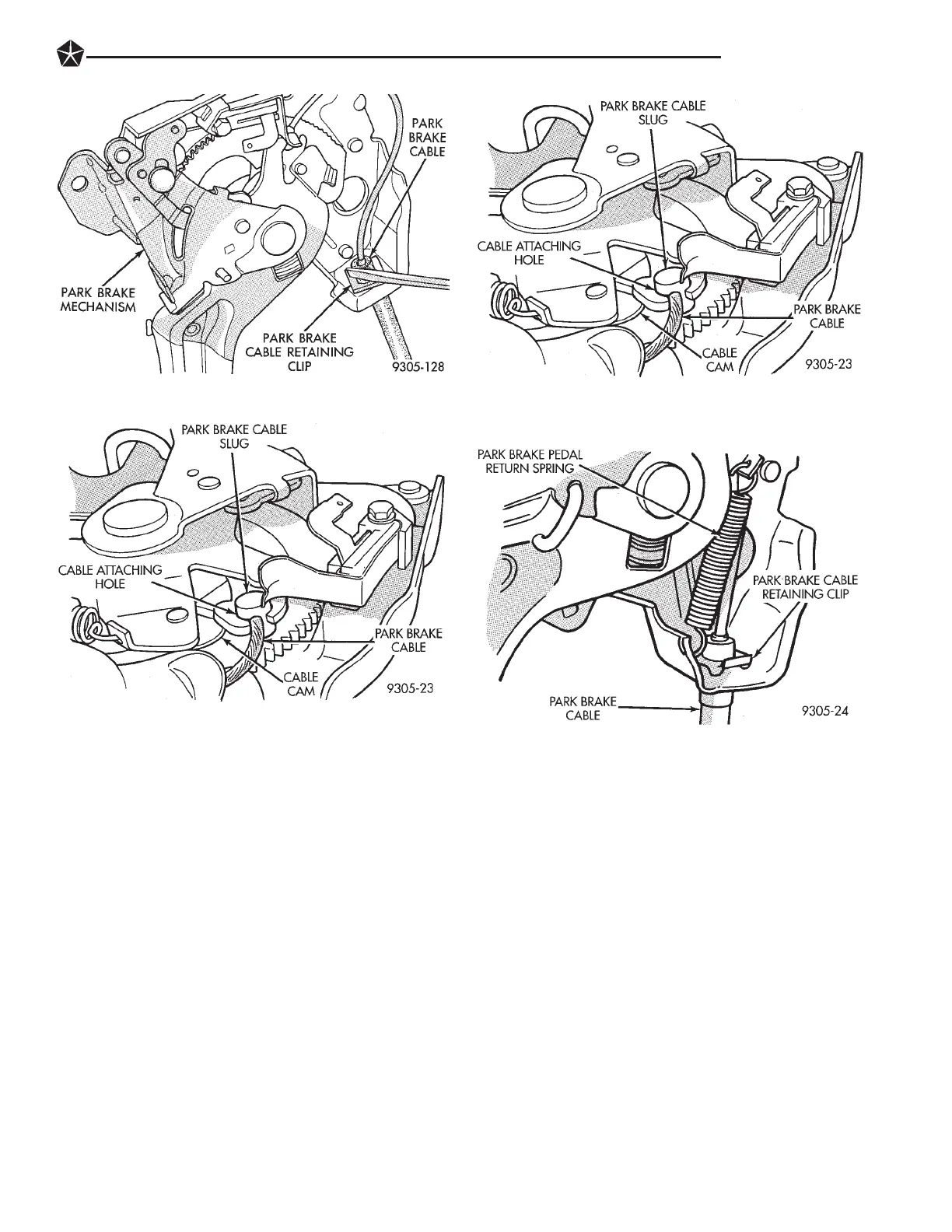

Fig. 18 Park Brake Cable Retaining Clip
Fig. 19 Park Brake Cable Removal From Park Brake
Mechanism
Fig. 20 Park Brake Cable Installed On Pedal
Assembly
Fig. 21 Park Brake Cable Installed In Mechanism
BRAKES 5 - 57
