FRONT SHOULDER BELT TURNING LOOP
REMOVAL (FIG. 70)
(1) On back of turning loop cover, disengage clips
holding cover to turning loop.
(2) Separate cover from turning loop.
(3) Remove bolt holding turning loop to shoulder
belt height adjuster.
(4) Separate turning loop from adjuster.
INSTALLATION
(1) Place turning loop in position on adjuster.
(2) Install bolt to hold turning loop to shoulder belt
height adjuster.
(3) Install cover on turning loop.
FRONT SHOULDER BELT ADJUSTER
REMOVAL (FIG. 71)
(1) Remove upper B-pillar trim.
(2) Remove bolts holding shoulder belt adjuster to
B-pillar.
(3) Separate adjuster from B-pillar.
INSTALLATION
(1) Place adjuster in position on B-pillar.
(2) Install bolts to hold shoulder belt adjuster to
B-pillar.
(3) Install upper B-pillar trim.
FRONT SEAT BELT RETRACTOR
REMOVAL (FIG. 72)
(1) Remove shoulder belt turning loop from height
adjuster.
(2) Remove upper B-pillar trim.
(3) Remove lower B-pillar trim.
(4) Remove push-in fastener holding seat belt re-
tractor to floor kick-up below B-pillar.
(5) Separate seat belt retractor from vehicle.
INSTALLATION
(1) Place seat belt retractor in position on vehicle.
(2) Install push-in fastener to hold seat belt retrac-
tor to floor kick-up below B-pillar.
(3) Install lower B-pillar trim.
(4) Install upper B-pillar trim.
(5) Install shoulder belt turning loop on height ad-
juster.

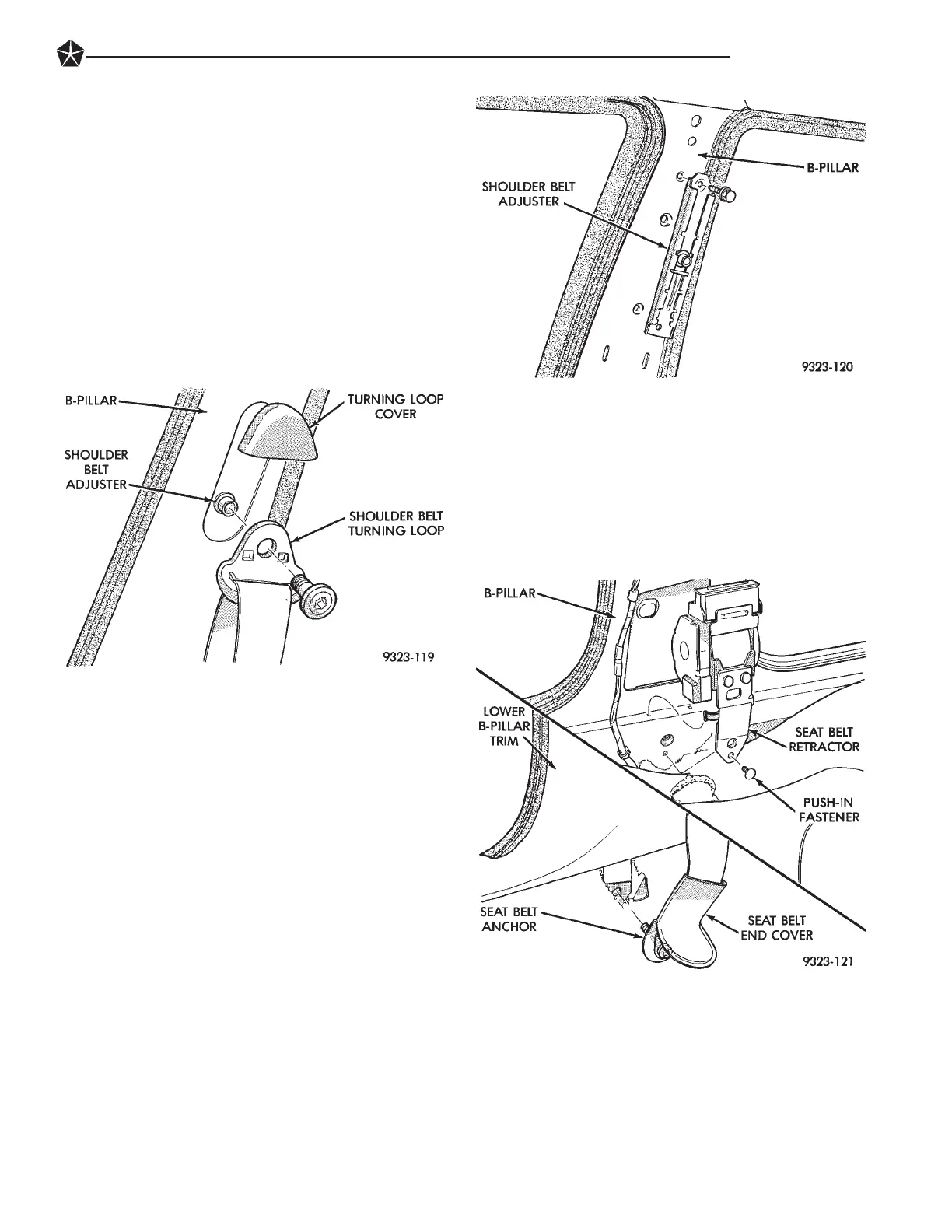

Fig. 70 Front Shoulder Belt Turning Loop
Fig. 71 Front Shoulder Belt Adjuster
Fig. 72 Front Seat Belt Retractor
BODY 23 - 31
