(8) Install the driveshaft requiring boot replace-
ment back into the vehicle. See Servicing Driveshaft
in this section of the service manual for the required
drive shaft installation procedure.

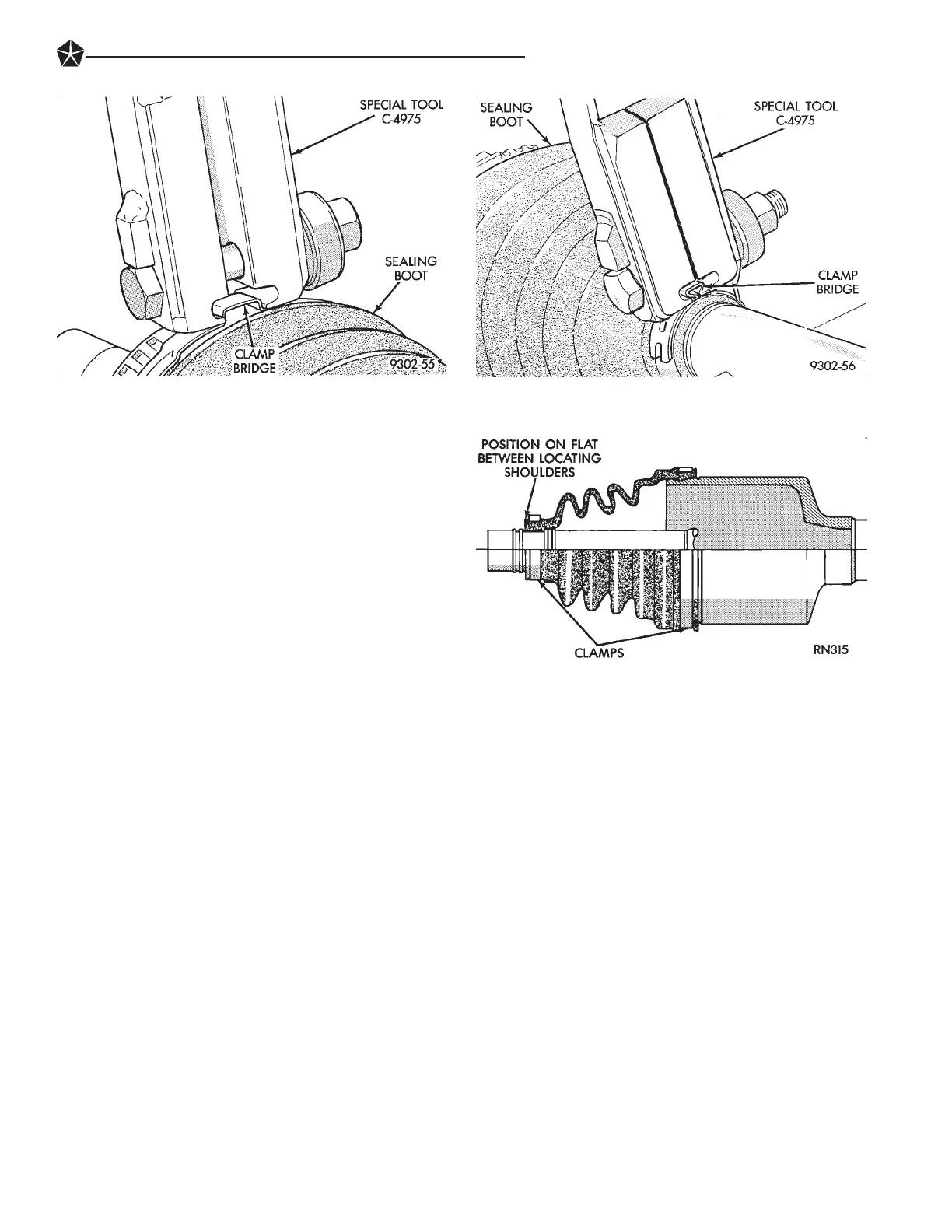

Fig. 6 Boot and Clamp Positioning
Fig. 4 Crimping Tool Installed On Sealing Boot
Clamp
Fig. 5 Sealing Boot Retaining Clamp Installed
SUSPENSION AND DRIVESHAFTS 2 - 51
