5.7.18.1.- Conguration of digital inputs, Tariff mode.
When selecting the tariff mode the two inputs operate in the same mode; they cannot be
programmed independently (Figure 303).
Table 15 shows the selection of the tariff according to the digital inputs.

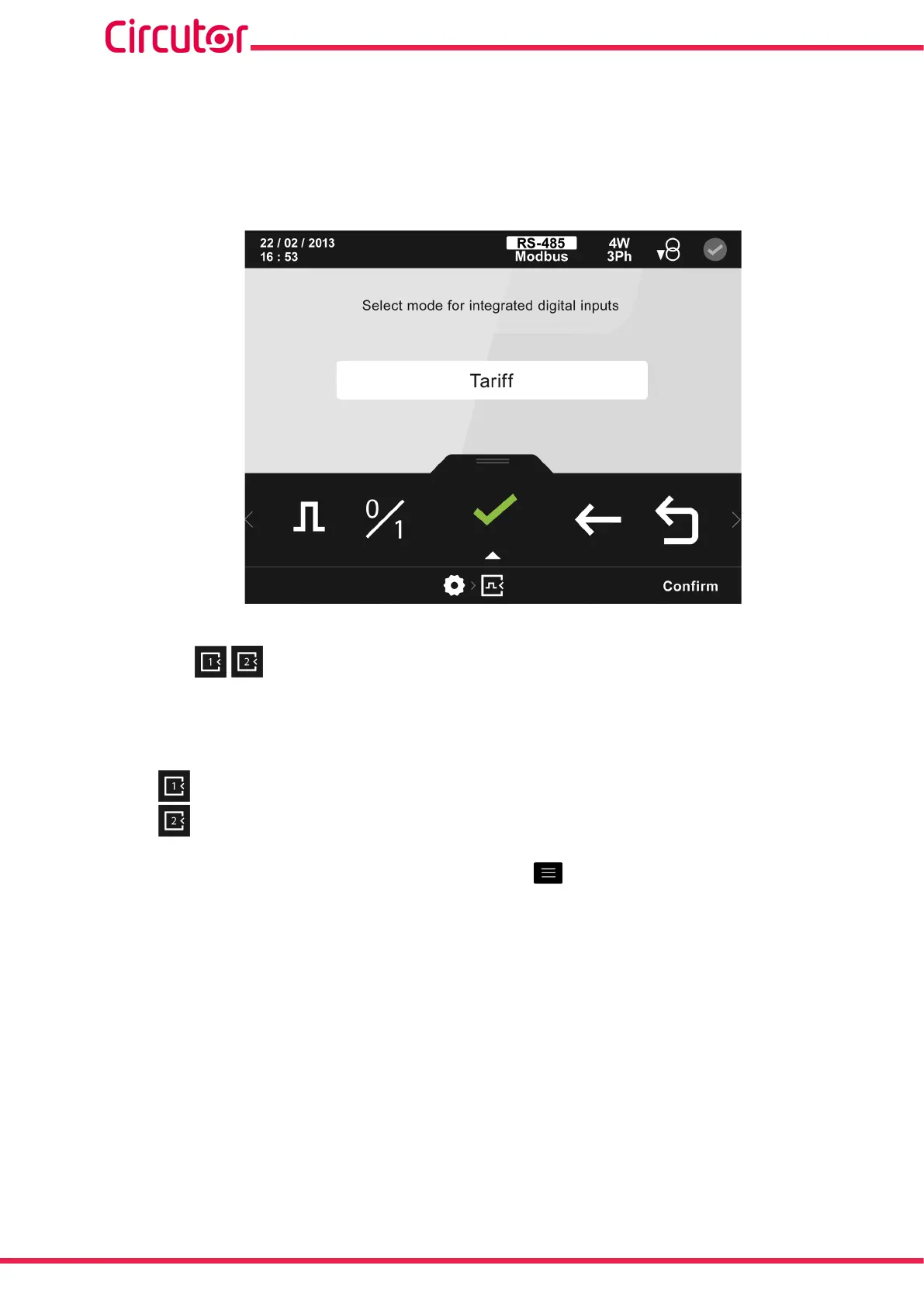

Figure 303: Digital inputs conguration screen (tariff mode).
5�7�18�2�- Conguration of digital inputs, impulse mode.
After selecting the conguration of an input in impulse mode, you must select the input that you
want to congure in this mode:
Digital input 1.
Digital input 2.
When selecting the input to congure with the key (Figure 304), you can programme the
following parameters:
 The input name.
 The units.
 The decimals.
 The energy meter factor.
212
CVM-A1000 - CVM-A1500
Instruction Manual
