The following options appear in the lower area:
>
>
>
<
<
<
varh
8
1
Back
Main
menu
Output 1...8

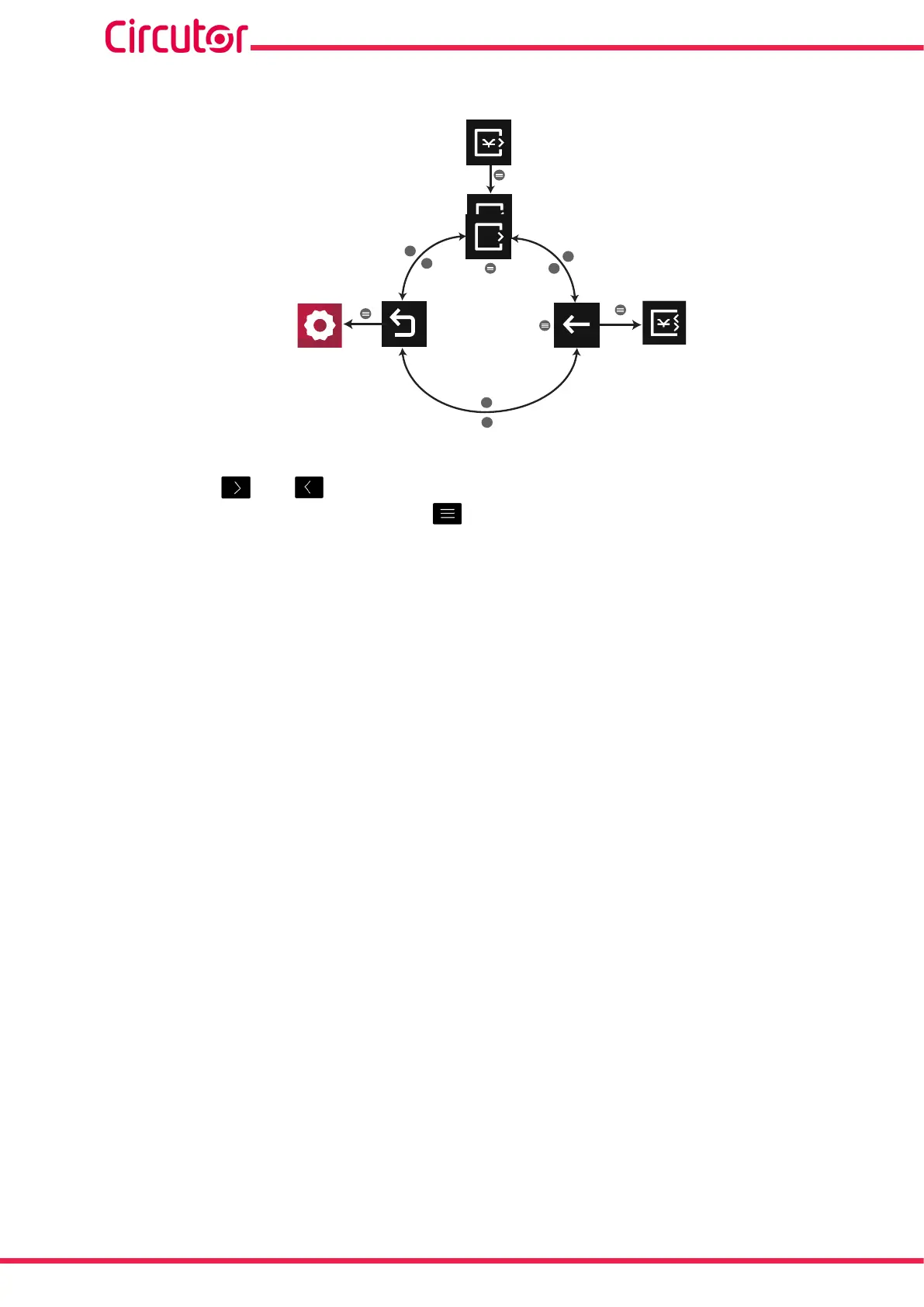

Figure 349: Setup menu : transistor digital outputs
Use the keys and to select the different options.
To conrm the selection, press the key .
The conguration of the transistor digital outputs in the expansion modules is the same as the
conguration of the transistor digital outputs integrated in the device, see “5.7.17.- TRANSISTOR
DIGITAL OUTPUTS.”
7�3�4�- COMUNICACIONES MODBUS
The address of the Modbus memory map depends on the position of the expansion module in
the device.
Slot 1 will be the position of the expansion module installed just behind the standard device,
and Slot 2 the next position...
As the maximum number of expansion modules that can be connected to the device is 4, there
will only be 4 slots.
7�3�4�1� - Programming of transistor digital outputs
The following functions are implemented for these variables:
Function 0x04: reading registers.
Function 0x10: Writing multiple registers.
282
CVM-A1000 - CVM-A1500
Instruction Manual
