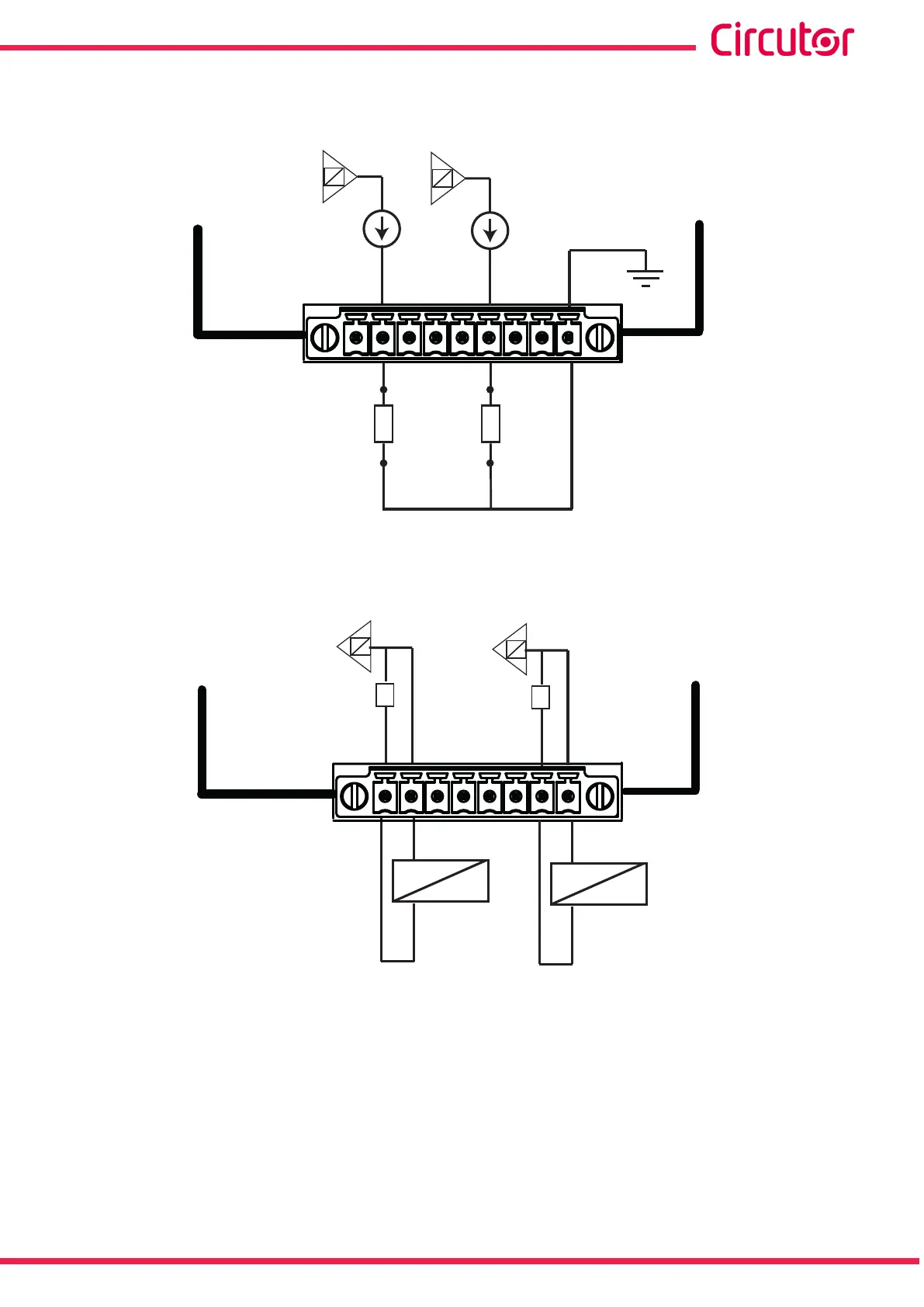

7�4�2�- CONNECTION DIAGRAMS
A�- Analogue outputs
1
9
External load
D
A
D
A
Figure 352:Connection diagram, analogue outputs�
B�- Analogue inputs
10
17
D
A
D
A
Sensor
0/4 ...20 mA
Sensor
0/4 ...20 mA
+ +- -
150Ω 150Ω
Figure 353: Connection diagram, analogue inputs�
295
Instruction Manual
CVM-A1000 - CVM-A1500
