varh
8
1
Back
Main
menu
Input1...4

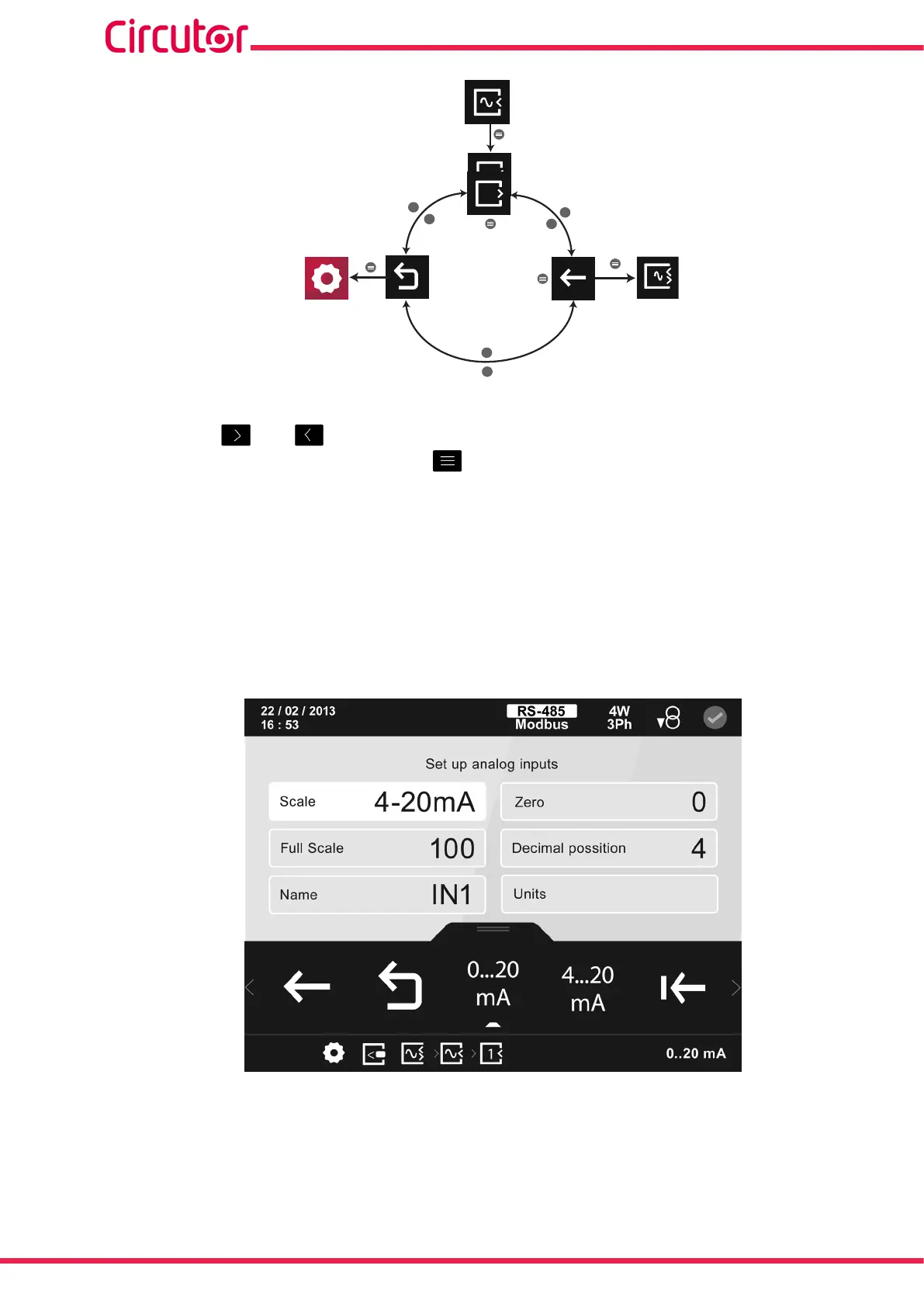

Figure 358: Setup menu :Analogue inputs�
Use the keys and to select the different options.
To conrm the selection, press the key .
When selecting the input to congure, Figure 359, the conguration parameters are:
 The analogue input scale.
 The zero.
 The full scale.
 The decimal position.
 The analogue input name.
 The units.
Figure 359: Analogue inputs conguration screen.
The parameter selected is indicated in white.
The following options appear in the lower area:
298
CVM-A1000 - CVM-A1500
Instruction Manual
