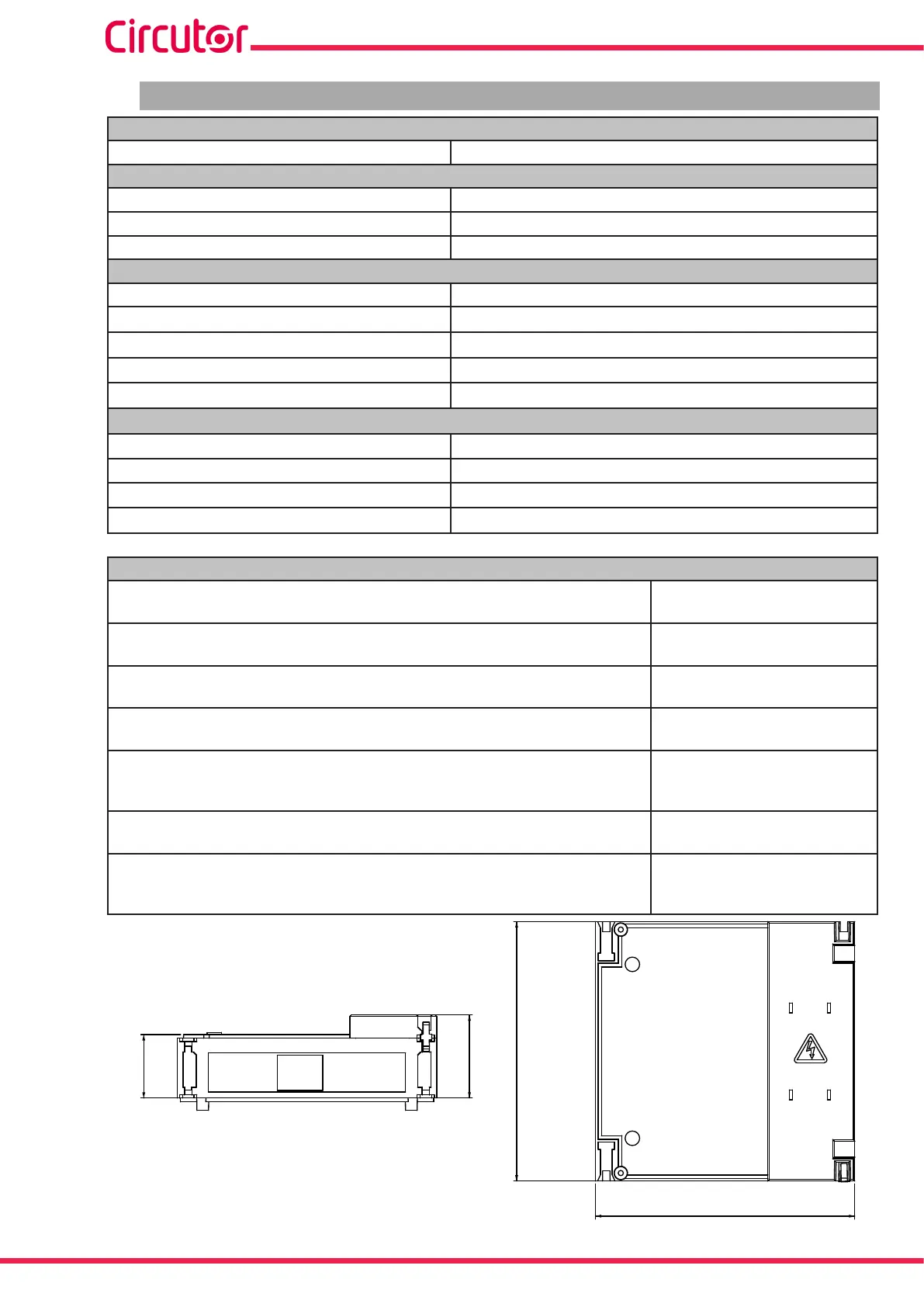

10.8.- MODBUS TCP (Switch) COMMUNICATIONS
General features
Maximum power of the module 2 W
Communications : Modbus TCP
Connector RJ-45
Protocol Modbus/TCP
Baud rate Ethernet 10BT / 100BT
Environmental features
Operating temperature -10ºC ... +50ºC
Storage temperature -20ºC ... +80ºC
Relative humidity (without condensation) 5 ... 95%
Maximum altitude 2000 m
Protection degree
(103)
IP30
Mechanical features
Dimensions (mm) Figure 410
Weight 80 g
Enclosure V0 self-extinguishing plastic
Assembly Panel
(103)
This pollution degree hasn’t been tested by UL.
Standards
Safety requirements for electrical equipment for measurement, control
and laboratory use -- Part 1: General requirements
IEC/EN 61010-1:2010
(Third Edition)
Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Im-
munity for industrial environments
UNE-EN 61000-6-2:2006
Electromagnetic compatibility (EMC) -- Part 6-4: Generic standards -
Emission standard for industrial environments
UNE-EN 61000-6-4:2007
Insulation coordination for equipment within low-voltage systems -- Part
1: Principles, requirements and tests�
IEC 60664-1:2007
Safety requirements for electrical equipment for measurement, control
and laboratory use -- Part 2-030: Particular requirements for testing and
measuring circuits
IEC 61010-2-030:2010
(First Edition)
Safety requirements for electrical equipment for measurement, control,
and laboratory use - Part 1: General requirements
UL 61010-1 3rd edition, 2012-
05
Safety Requirements for Electrical Equipment for Measurement, Control
and Laboratory Use - Part 1: General Requirements (Adopted IEC 1010-
1:1990 with modications)
CAN/CSA-C22.2 No. 61010-1,
3rd edition, 2012-05
89.5
89.5
21.85
28.65
Figure 410: Expansion module dimensions�
