5�1�1�1�1�1�1�- Graphic view

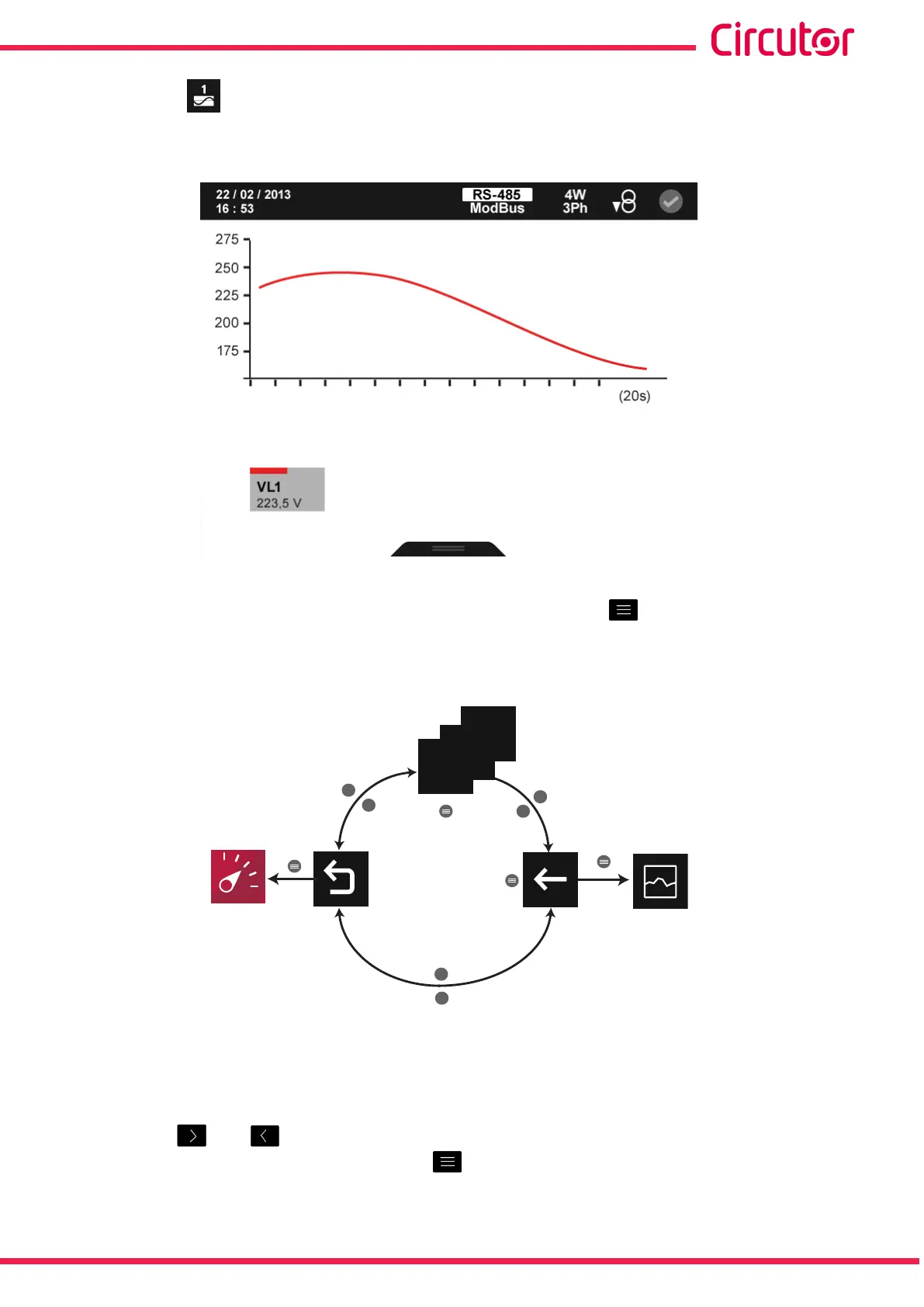

Figure 51 shows the graphical display screen.
Figure 51: Instantaneous parameters, graphic view (displays 1 parameter)�
The menu in the lower area disappears after 3 seconds. Press the key to display the lower
area again.
The lower area menu options are:
300s
>
>
>
<
<
<
varh
8
1
60s
20s
Back
Main
menu
Display time
Figure 52: Graphical representation display menu�
The display time (X-axis), of the chart can be 20, 60 or 300 seconds.
Note: The option selected is not displayed on the menu.
Use the keys and to browse the different options.
To access the option selected press the key .
63
Instruction Manual
CVM-A1000 - CVM-A1500
