Chapter6 Configuring IE2100 CNS Agents
Understanding IE2100 Series Configuration Registrar Software

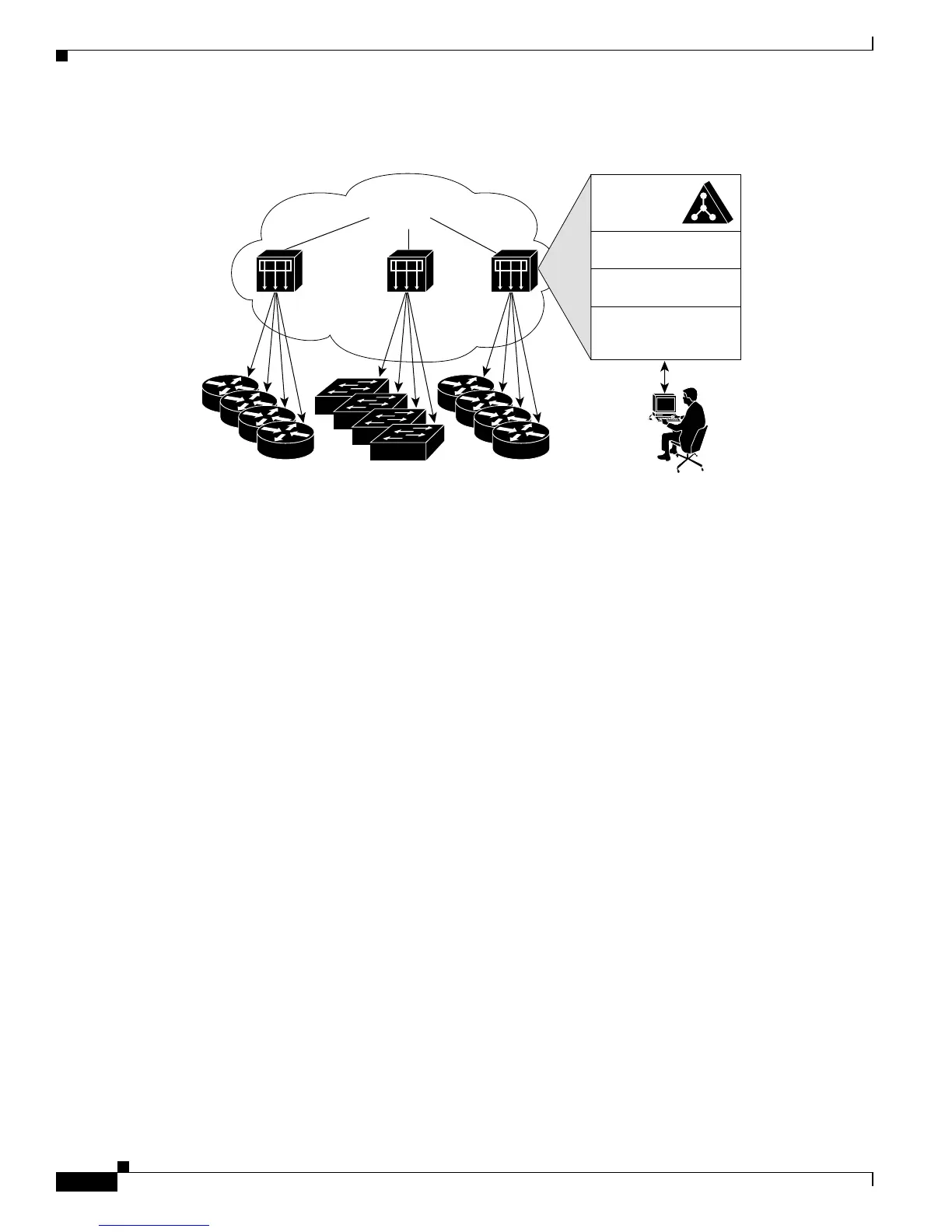

Figure 6-1 Configuration Registrar Architectural Overview
These sections contain this conceptual information:
• CNS Configuration Service, page 6-2
• CNS Event Service, page 6-3
• What You Should Know About ConfigID, DeviceID, and Host Name, page 6-3
CNS Configuration Service
The CNS Configuration Service is the core component of the Configuration Registrar. It consists of a
configuration server that works with CNS configuration agents located on the switch. The CNS
Configuration Service delivers device and service configurations to the switch for initial configuration
and mass reconfiguration by logical groups. Switches receive their initial configuration from the CNS
Configuration Service when they start up on the network for the first time.
The CNS Configuration Service uses the CNS Event Service to send and receive configuration change
events and to send success and failure notifications.
The configuration server is a web server that uses configuration templates and the device-specific
configuration information stored in the embedded (standalone mode) or remote (server mode) directory.
Configuration templates are text files containing static configuration information in the form of CLI
commands. In the templates, variables are specified using lightweight directory access protocol (LDAP)
URLs that reference the device-specific configuration information stored in a directory.
The configuration agent can perform a syntax check on received configuration files and publish events
to indicate the success or failure of the syntax check. The configuration agent can either apply
configurations immediately or delay the application until receipt of a synchronization event from the
configuration server.
Configuration
registrar
Service provider network
Order entry
configuration management
Data service
directory
Configuration server
Event service
Web-based
user interface
71444

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
