1-20
Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide
78-11380-10
Chapter 1 Overview
Network Configuration Examples

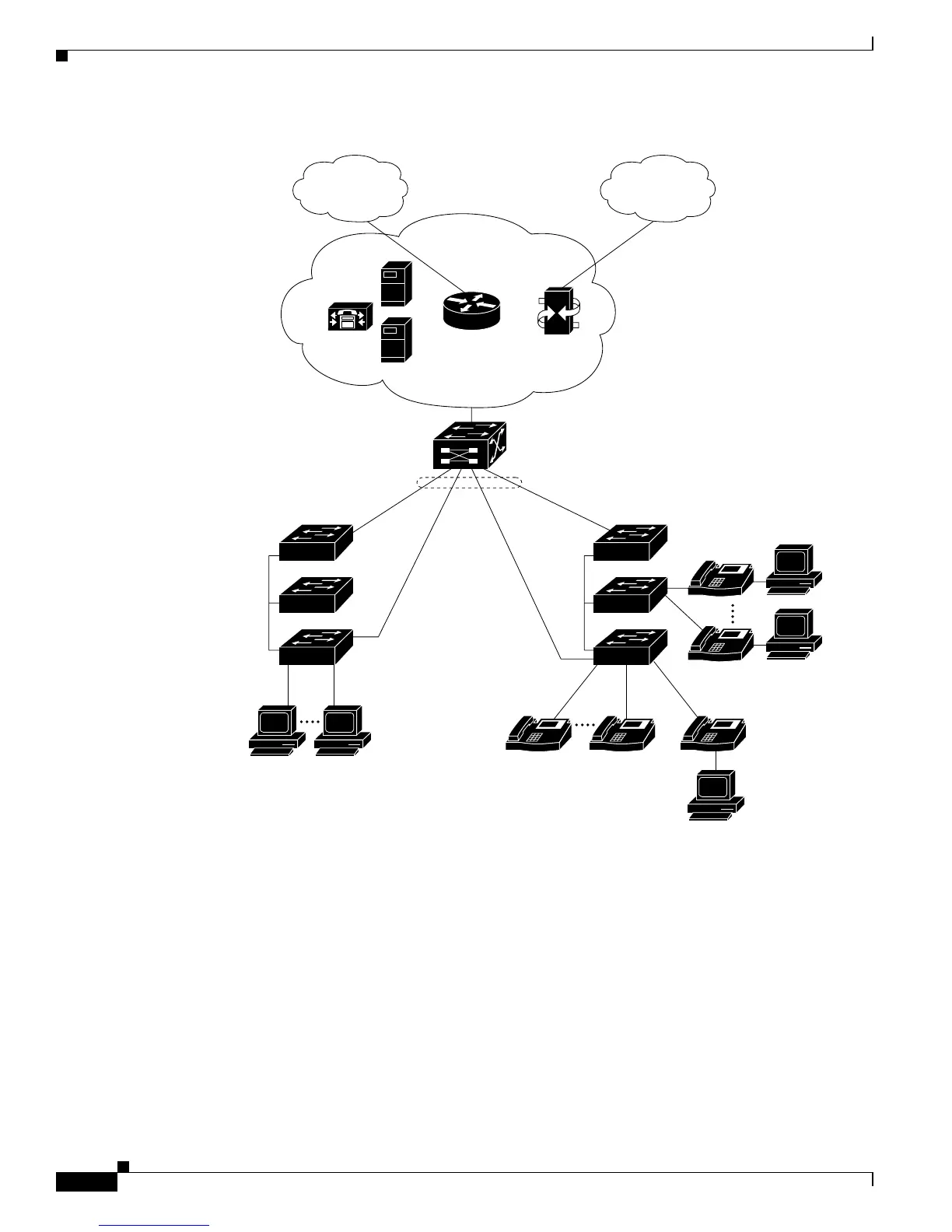

Figure 1-6 Large Campus Configuration
Multidwelling Network Using Catalyst 2950 Switches
A growing segment of residential and commercial customers are requiring high-speed access to Ethernet
metropolitan-area networks (MANs). Figure 1-7 shows a configuration for a Gigabit Ethernet MAN ring
using Catalyst 3550 multilayer switches as aggregation switches in the mini-point-of-presence (POP)
location. These switches are connected through 1000BASE-X GBIC ports.
The resident switches can be Catalyst 2950 switches, providing customers with high-speed connections
to the MAN. Catalyst 2900 LRE XL or 2950 LRE Layer 2-only switches also can be used as residential
switches for customers requiring connectivity through existing telephone lines. The Catalyst LRE
switches can then connect to another residential switch or to an aggregation switch. For more
information about these switches, refer to the Catalyst 2950 Desktop Switch Hardware Installation
Guide.
Catalyst
6500 switch
Cisco access
gateway
Servers
Cisco
CallManager
Cisco 7200
or 7500 router
WAN
IP telephony
network or
PSTN
IP IP IP
IP
60995
Catalyst 3550-24PWR
cluster
1 Gbps
(2 Gbps
full duplex)
IP
Cisco IP Phones
Cisco IP Phones
Workstations running
Cisco SoftPhone software
Catalyst 2950, 2900 XL,
3500 XL, and 3550
GigaStack cluster

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
