18-5
Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide
78-11380-10
Chapter 18 Configuring VTP
Understanding VTP

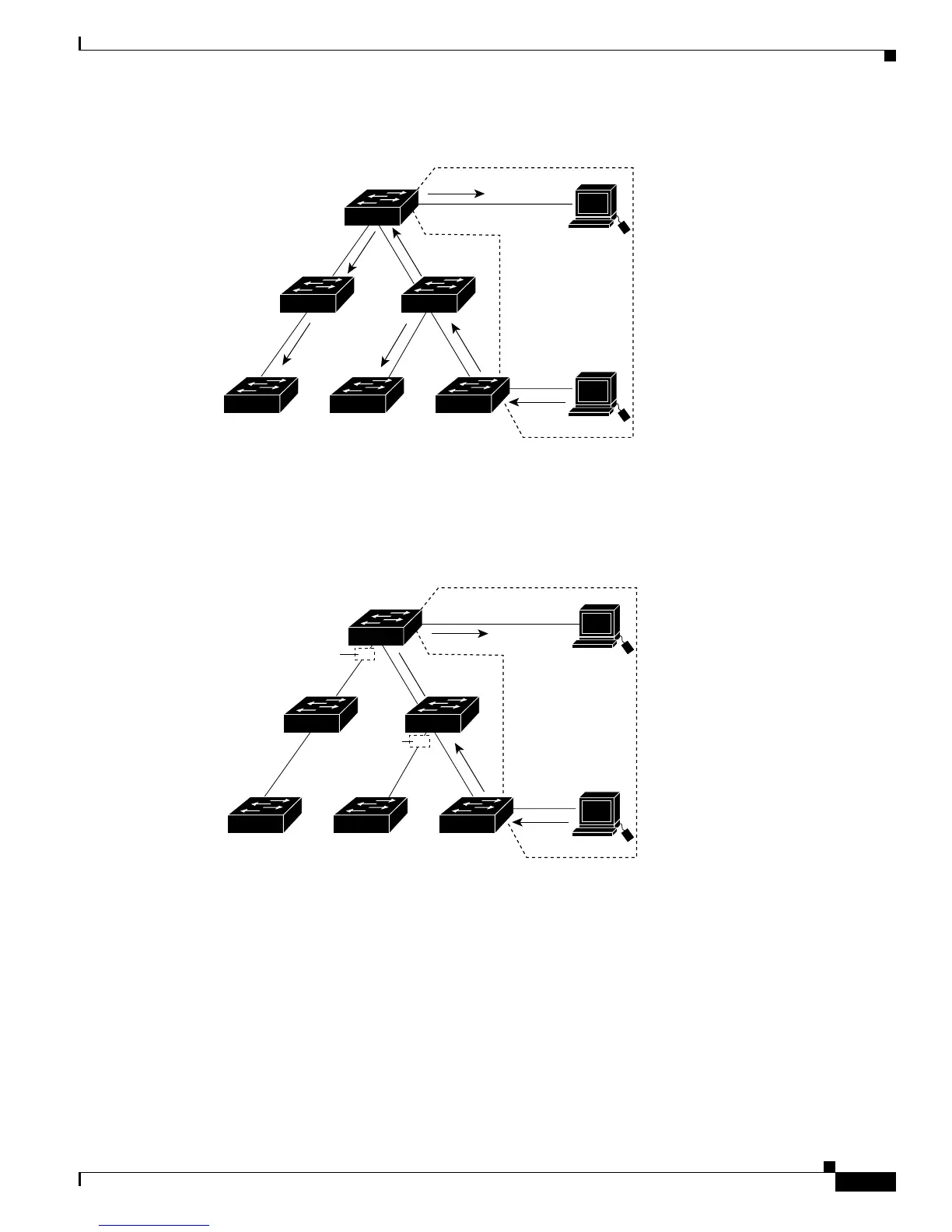

Figure 18-1 Flooding Traffic without VTP Pruning
Figure 18-2 shows a switched network with VTP pruning enabled. The broadcast traffic from Switch A
is not forwarded to Switches C, E, and F because traffic for the Red VLAN has been pruned on the links
shown (Port 5 on Switch B and Port 4 on Switch D).
Figure 18-2 Optimized Flooded Traffic with VTP Pruning
Enabling VTP pruning on a VTP server enables pruning for the entire management domain. Making
VLANs pruning-eligible or pruning-ineligible affects pruning eligibility for those VLANs on that device
only (not on all switches in the VTP domain). See the “Enabling VTP Pruning” section on page 18-14.
VTP pruning takes effect several seconds after you enable it. VTP pruning does not prune traffic from
VLANs that are pruning-ineligible. VLAN 1 and VLANs 1002 to 1005 are always pruning-ineligible;
traffic from these VLANs cannot be pruned. Extended-range VLANs (VLAN IDs higher than 1005) are
also pruning-ineligible.
Switch D
Switch E
Switch CSwitch F Switch A
Switch B
Port 1
Port 2
Red
VLAN
89240
Switch D
Switch E
Switch CSwitch F Switch A
Switch B
Port 1
Port 2
Red
VLAN
89241
Port
4
Flooded traffic
is pruned.
Port
5
Flooded traffic
is pruned.

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
