Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide
78-11380-10
Chapter 1 Overview
Network Configuration Examples

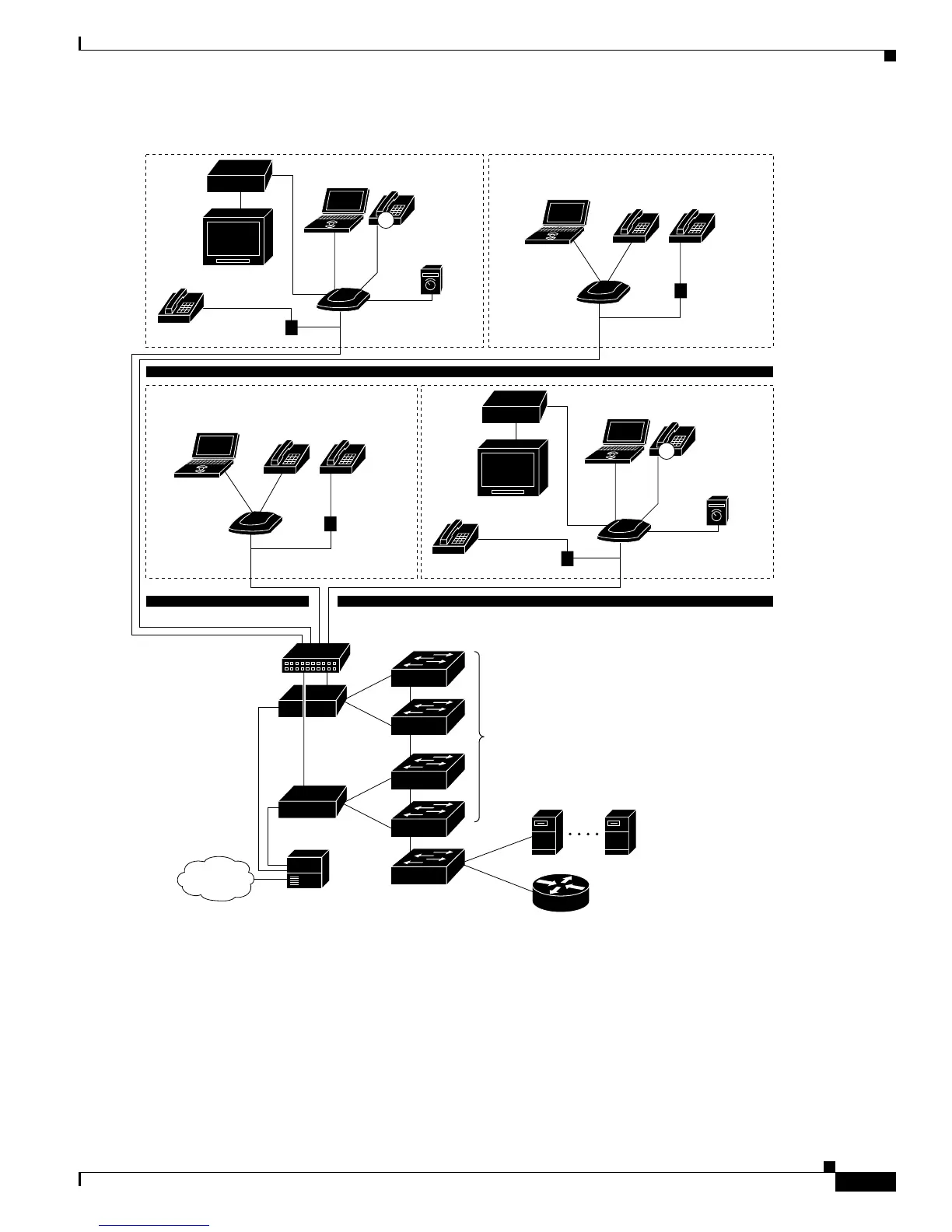

Figure 1-4 Network Hotel Configuration
Cisco 575
LRE CPE
PSTN
PBX
Floor 3
Floor 4
Rooms
and
users
Rooms
and
users
Cisco
LRE 48
POTS
splitters
Cisco 2600 router
Servers
Catalyst 2950ST-8 LRE and
2950ST-24 LRE switches
Catalyst 2950 or
Catalyst 3550 switch
Patch panel
89514
POTS telephones
Laptop
Cisco 575
LRE CPE
Laptop
POTS telephones
Required
microfilter
Required
microfilter
Required
microfilter
Cisco 585
LRE CPE
IP
phone
Laptop
Environmental
controls
Required
microfilter
Set-top
box
TV
IP
POTS telephone
POTS telephone
Cisco 585
LRE CPE
IP
phone
Laptop
Environmental
controls
Set-top
box
TV
IP

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
