Cisco ASR 1000 Series Hardware Installation Guide

3-9
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 3 Cisco ASR 1000 Series Routers Embedded Services Processors
Features of the Cisco ASR 1000 Series Embedded Services Processors
Note The Cisco ASR 1000 Series embedded services processors have the same faceplate and status
information except for the name label, such as Cisco ASR1000-ESP40, Cisco ASR1000-ESP20, Cisco
ASR1000-ESP10, Cisco ASR1000-ESP10-N, and Cisco ASR1000-ESP5.

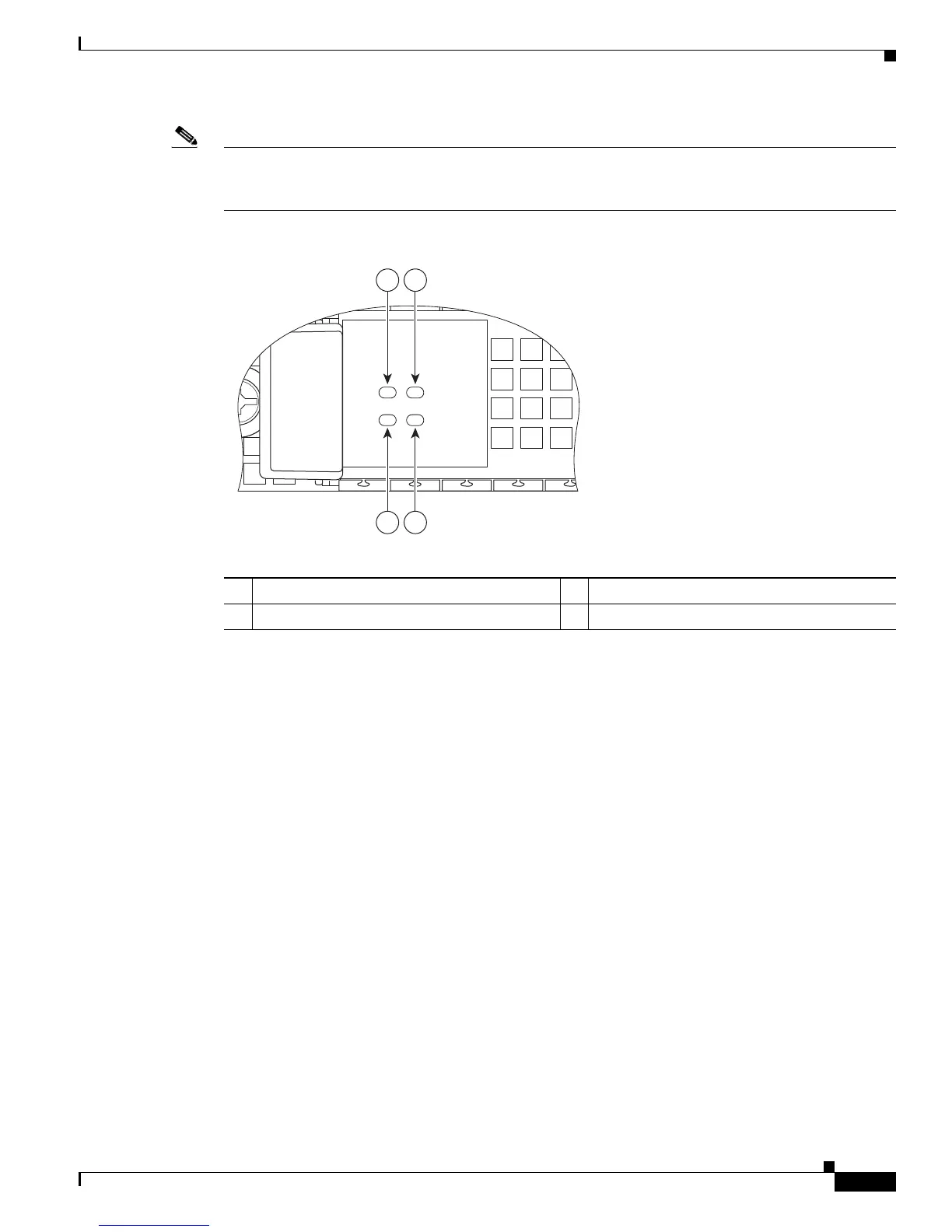

Figure 3-3 Cisco ASR1000-ESP Faceplate LEDs
1 PWR—Power LED 3 STAT—Status LED
2 ACTV—Active LED 4 STBY—Standby LED
STBY
ACTV
STAT
ASR1000-ESP10
PWR
280080
4
3
2
1
