Chapter 6 Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation
• The Cisco ASR 1006 Router needs adequate ventilation. Do not install it in an enclosed cabinet
where ventilation is inadequate.
• Keep the cable-management brackets ready if you plan to install it on the front of the chassis.
• An adequate chassis ground (earth) connection exists for your router chassis (see the “Attaching a
Chassis Ground Connection” section on page 6-19).
• Always follow proper lifting practices as outlined in the “Chassis-Lifting Guidelines” section on
page 5-23 when handling the chassis.
Equipment Shelf or Tabletop Installation
To mount your Cisco ASR 1006 Router on an equipment shelf or tabletop, follow these steps.
Step 1 Remove any debris and dust from the tabletop or platform, as well as the surrounding area.
Step 2 Lift the chassis into position on the equipment shelf or tabletop (see Figure 6-5).
Warning At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep
your back straight and lift with your legs, not your back. Statement 164

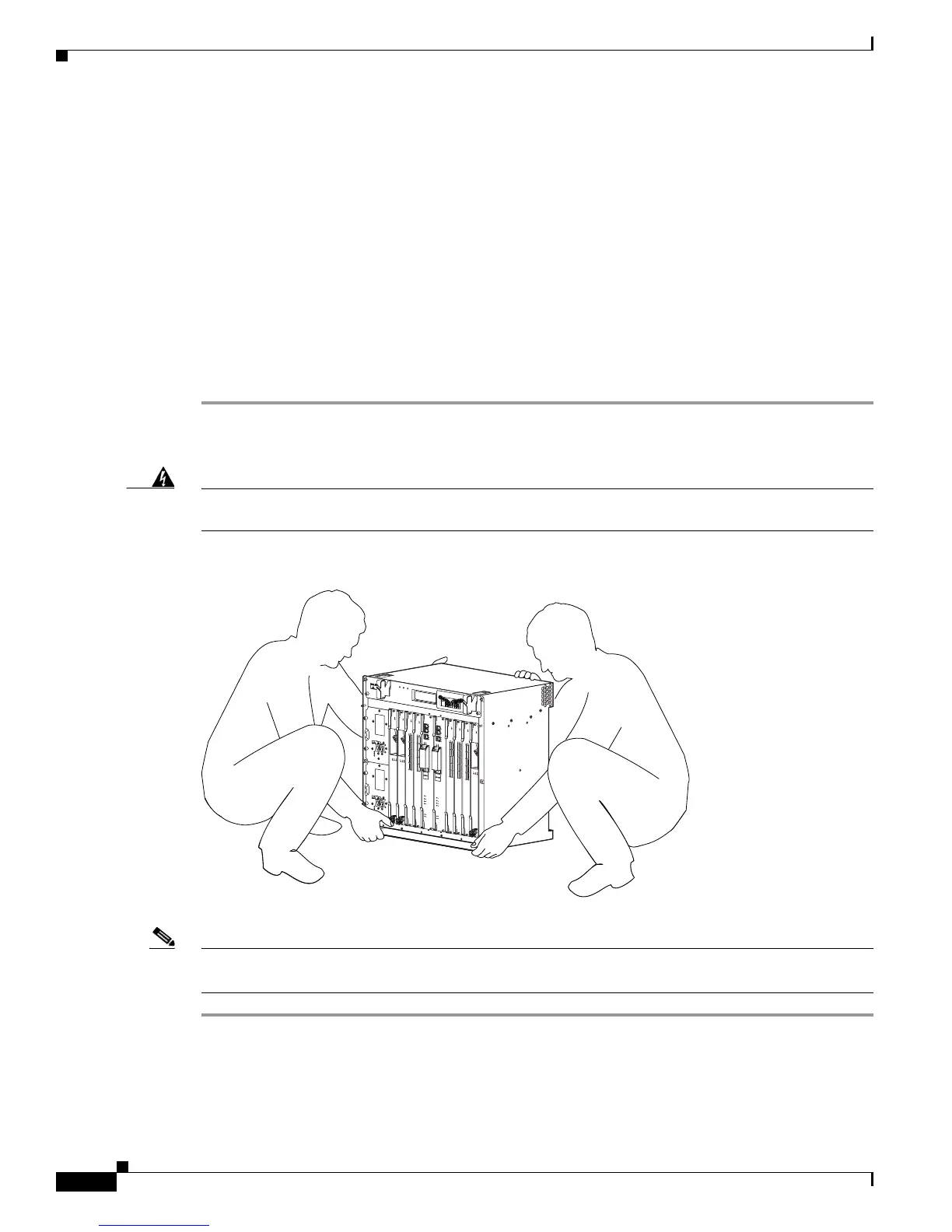

Figure 6-5 Lifting the Chassis
Note The chassis in Figure 6-5 does not represent the Cisco ASR 1000 Series Router. This is only an example
of how to lift a Cisco chassis.
Step 1 Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first
holes beyond the vent holes) and use the package of black screws that shipped with the chassis.
Step 2 Align the front rack-mount bracket to one side of the chassis.
Step 3 Insert and tighten the screws on one side.
30007
1
3
2
4
0
A
P
R
