Cisco ASR 1000 Series Hardware Installation Guide

4-9
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 4 Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
SPA Interface Processor Slot Numbering
For detailed information about specifying SIP subslot location for a SPA and specifying slot location for
a SIP, see Cisco Aggregation Services Router 1000 Series SIP and SPA Software Configuration Guide.
Cisco ASR 1001 Router
In the Cisco ASR 1001 Router, the Cisco ASR1000-SIP10 supports:
• One flexible integrated daughter card I/O slot
• One half-height SPA bay

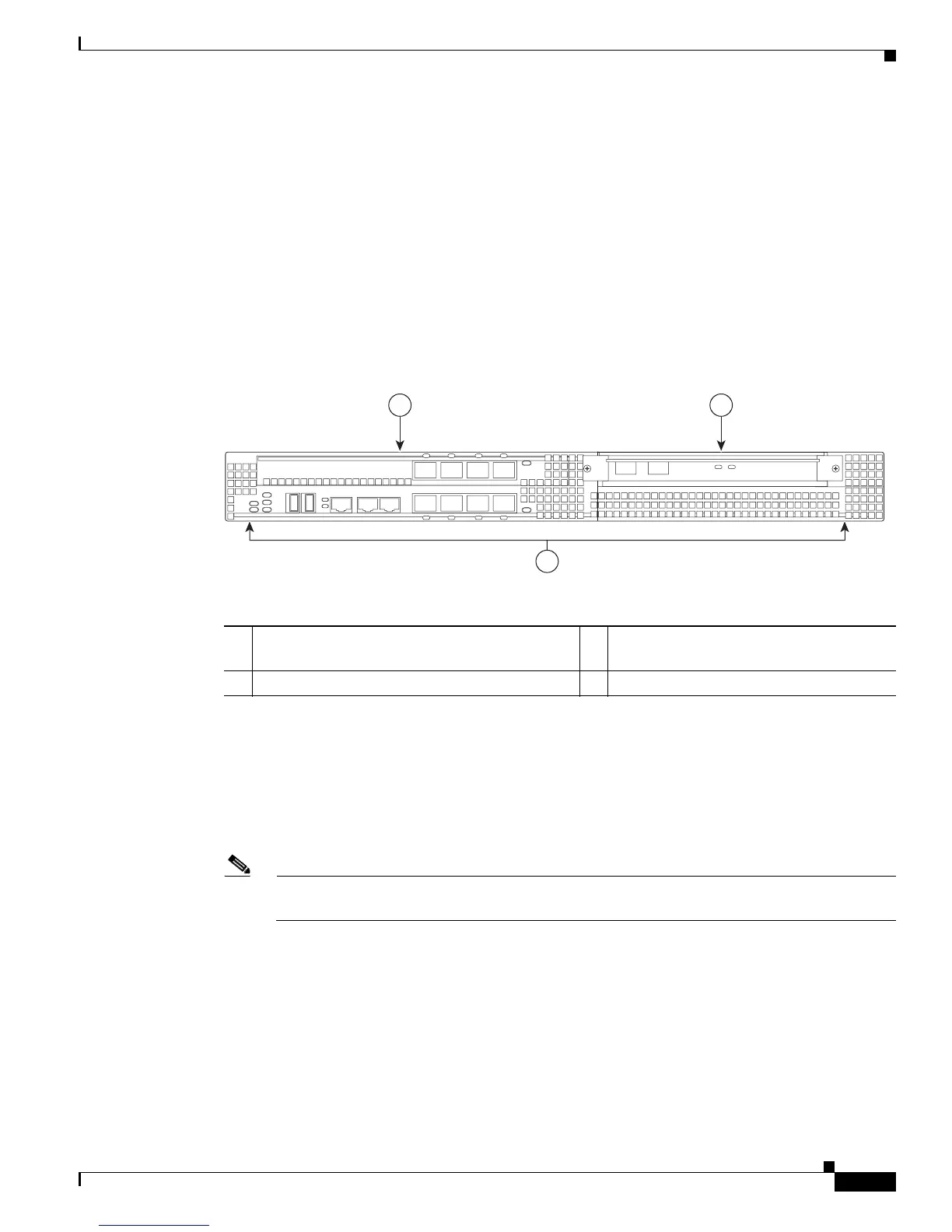

Figure 4-7 shows slot numbering on the Cisco ASR 1001 Router.
Figure 4-7 Cisco ASR 1001 Router Slot Numbering
Cisco ASR 1002-X Router
In the Cisco ASR 1002-X Router, the integrated SIP supports:
• Three removable half-height SPAs in Bays 1, 2, and 3
• A built-in 6xGE SPA
Note The SPAs on the Cisco ASR1002-X support online insertion and removal. However, the SIP on
the Cisco ASR 1002-X Router is built into the chassis and is not a field-replaceable unit.
Figure 4-8 shows the slot numbering for the Cisco ASR 1002-X Router.
1 Slot 2 connected to the flexible integrated
daughter card
3 Slot 0 connected to the built-in 4x1GE SPA
on the mainboard
2 Slot 1 connected to the half-height SPA slot — —
281352
ASR1001
Daughter Board I/O Space
SPA 2xOC12
PWR
STAT
CRIT
MAJ
MIN
MGMT
CONS
AUX
0 USB 1
0/0 0/1 0/2GE0 0/3
2/0 2/1 2/2
GE0
2/3
STAT
STAT
01
10
1 2
3

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
