Cisco ASR 1000 Series Hardware Installation Guide

6-20
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 6 Cisco ASR 1006 Router Overview and Installation
Attaching a Chassis Ground Connection
Have the recommended tools and supplies available before you begin this procedure.

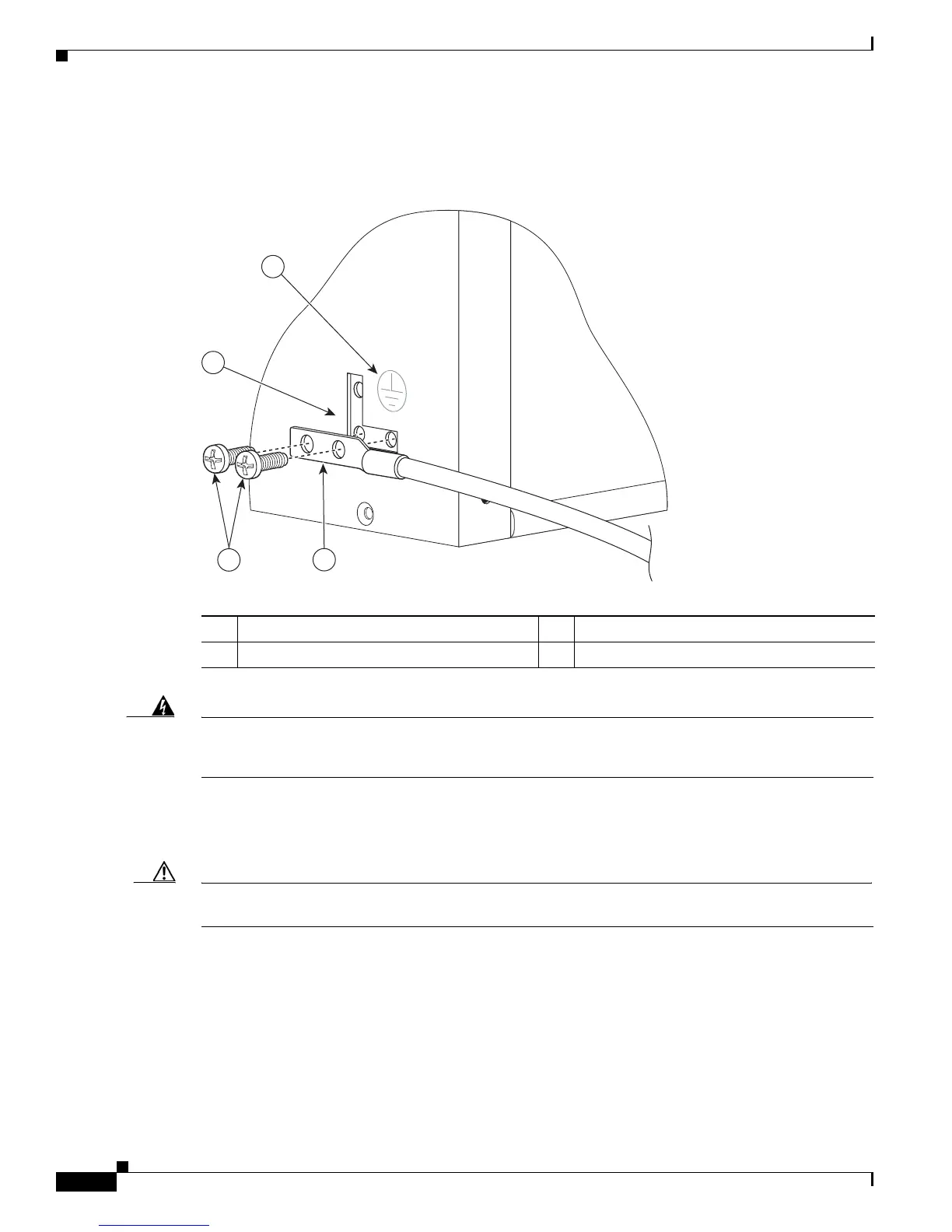

Figure 6-13 shows how to attach the ground lugs on the Cisco ASR 1006 chassis.
Figure 6-13 Installing the Cisco ASR 1006 Router Ground Connection
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Before you connect power or turn on power to your chassis, you must provide an adequate chassis ground
(earth) connection for the chassis. A chassis ground connector is provided on each Cisco ASR 1006
Router. There is a stud on the side of the chassis and on the DC power supply (primary grounding stud).
Caution The grounding wire is always the first to be installed or connected and the last to be removed or
disconnected.
Recommended Tools and Supplies
The following tools, equipment, and supplies necessary to connect the system ground to the chassis:
• Phillips screwdriver
• Dual-lug chassis ground component
• Grounding wire
280034
3
4
2
1
1 Chassis ground studs and lead wire 3 Ground connector on the chassis
2 Grounding screws 4 Ground symbol
