Chapter 6 Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation
Step 4 Repeat Step 2 through Step 3 on the other side of the chassis. Use at least 4 screws to secure the
rack-mount brackets to the chassis.
Note The cable-management brackets are installed on the chassis after you install the chassis rack-mount
brackets.
Step 5 Gather the two cable-management brackets and screws shipped with the chassis. Figure 6-6 shows the
cable-management brackets attached on the front of the Cisco ASR 1006 Router when the chassis is
placed on a table top or equipment shelf.
Note Make certain that the cable-management ‘U’ feature device has the open end pointing upwards
when you attach it to the chassis.

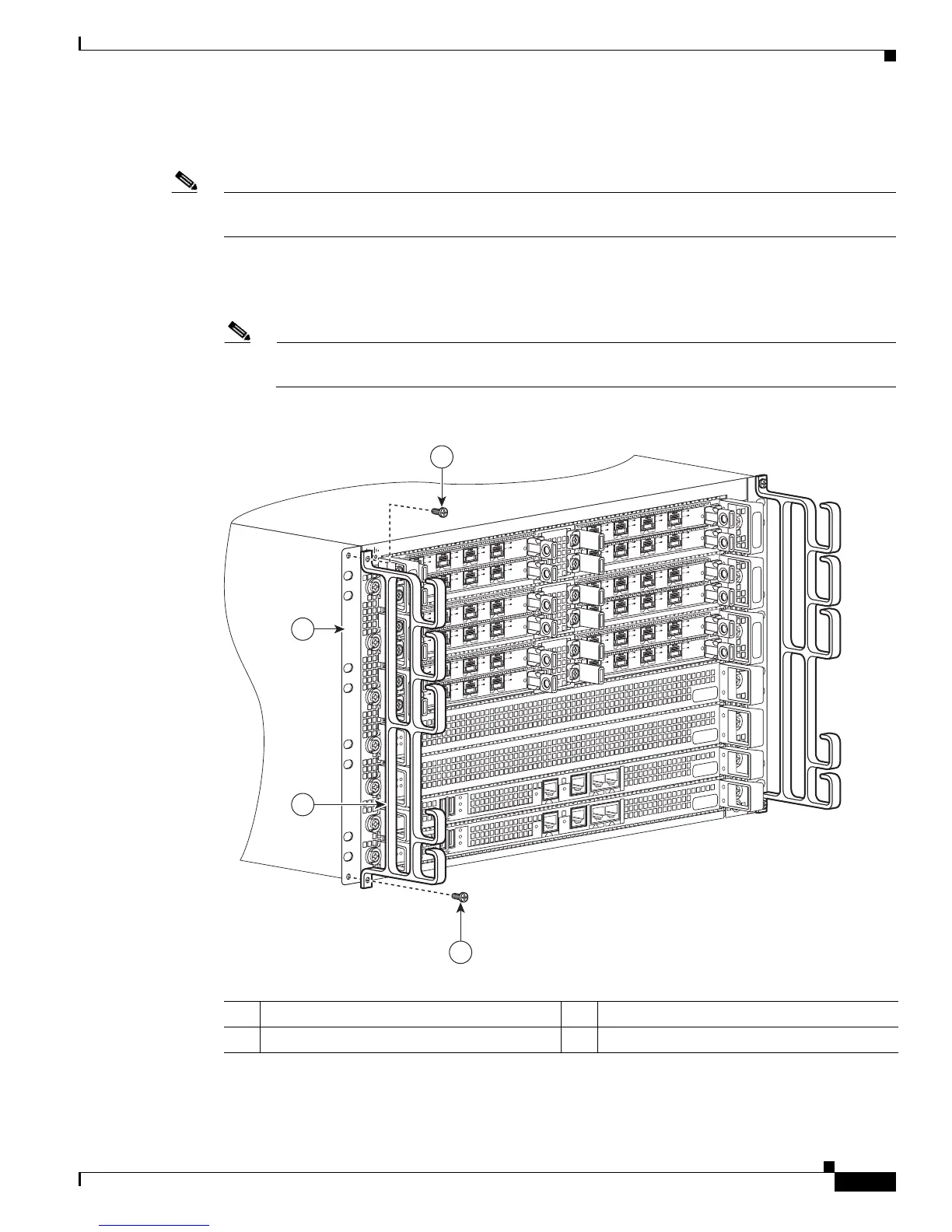

Figure 6-6 Attaching the Cable-Management Brackets to the Cisco ASR 1006 Router
Step 6
Screw the cable-management bracket to each side of the rack-mount brackets already attached to the
chassis. For each cable-management bracket, use two screws from the package of four screws.
1 Cable-management screws 3 Chassis front rack-mount bracket
2 Cable-management bracket — —
280036
