Chapter 6 Cisco ASR 1006 Router Overview and Installation
Cisco ASR 1006 Router Description
Cisco ASR 1006 Router Slot Numbering
The Cisco ASR 1006 Router is designed with each slot numbered as shown in Figure 6-3.

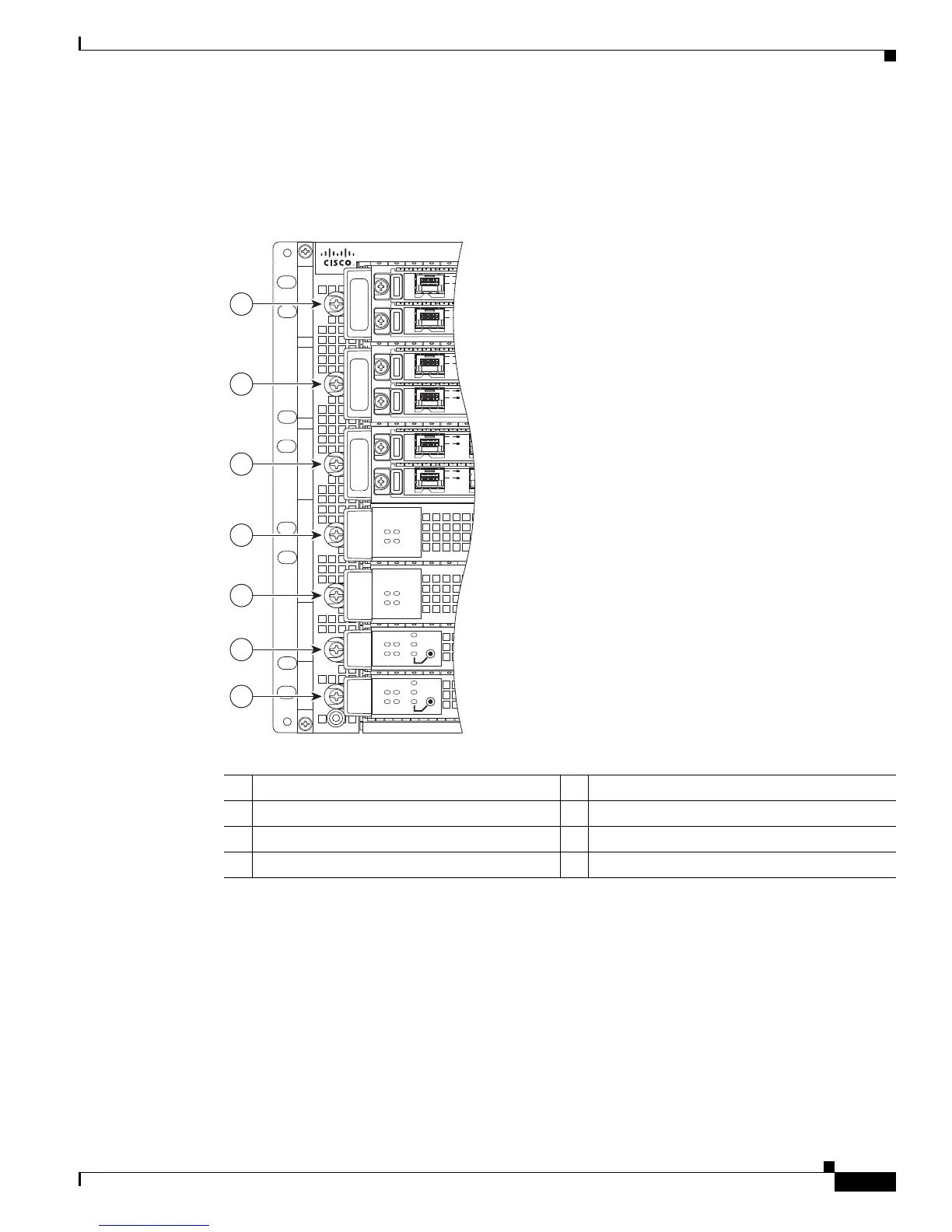

Figure 6-3 Cisco ASR 1006 Router — Slot Numbering
The Cisco ASR 1006 Router contains three Cisco ASR 1000 Series SPA Interfaces (SIPs) that support
four subslots for the installation of SPAs.
1 Slot RP0 with ASR 1000 Series RP1 5 ASR 1000 Series SIP slot 0
2 Slot RP1 with ASR 1000 Series RP1 6 ASR 1000 Series SIP slot 1
3 Slot FP0 with ASR 1000 Series ESP 7 ASR 1000 Series SIP slot 2
4 Slot FP1 with ASR 1000 Series ESP — —
