Cisco ASR 1000 Series Hardware Installation Guide

8-6
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 8 Cisco ASR 1002 Router Overview and Installation
Cisco ASR 1002 Router Description
Note The shared port adapters (SPAs) on the Cisco embedded ASR1000-SIP10 in the Cisco
ASR 1002 Router do support online insertion and removal.
The Cisco ASR 1002 Router embedded ASR1000-RP1 also provides the circuitry for the built-in 4xGE
SPA.
Cisco ASR1000-ESP5 and ASR1000-ESP10 Description
The Cisco ASR 1002 Router supports the Cisco ASR1000-ESP5 or Cisco ASR1000-ESP10 embedded
services processors. The Cisco ASR 1002 Router does not support the Cisco ASR1000-ESP20.

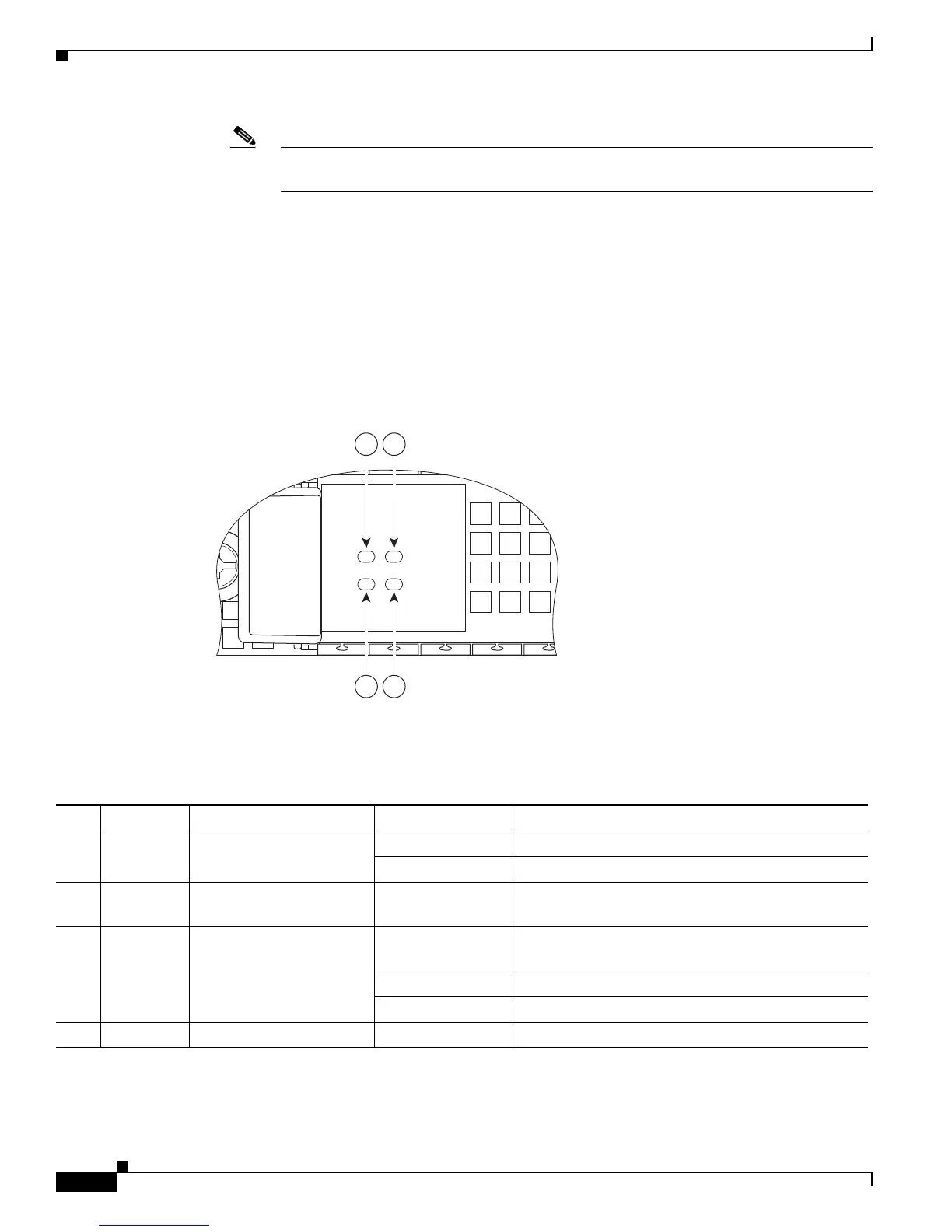

Figure 8-5 shows the LEDs on the Cisco ASR1000-ESP10.
Figure 8-5 Cisco ASR1000-ESP10 LEDs
Table 8-1 describes the Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 LEDs.
Table 8-1 Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 LEDs
STBY
ACTV
STAT
ASR1000-ESP10
PWR
280080
4
3
2
1
No. LED Label LED Color Behavior in the Power-Up State
1 PWR Power Solid green All power supplies are within operational limits.
Off Off, the router is in standby mode.
2 ACTV Active Green The embedded services processor is green when
active.
3 STAT STATUS Green Code has successfully downloaded and is
operational.
Yellow BOOT ROM has successfully loaded.
Red Not booted.
4 STBY Standby None Will always be off.
