Cisco ASR 1000 Series Hardware Installation Guide

8-46
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 8 Cisco ASR 1002 Router Overview and Installation
Connecting a Terminal to the Cisco ASR1000-RP1 Console Port
A crossover cable reverses pin connections from one end to the other. In other words, it connects pin 1
(at one end) to pin 8 (at the other end), pin 2 to pin 7, pin 3 to pin 6, and so on. You can identify a
crossover cable by comparing the two modular ends of the cable. Hold the cable ends in your hand,
side-by-side, with the tabs at the back. Ensure that the wire connected to the outside (left) pin of the left
plug (pin 1) is the same color as the wire connected to the outside (right) pin of the right plug (pin 8).
Use the following procedure to connect a video terminal to the console port on a route processor.
Note Each Cisco ASR 1000 Series Route Processor 1 must have a console port connection (typically to a
terminal server) if you are running a redundant configuration in the chassis.
Step 1 Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco embedded
ASR1000-RP1 (see Figure 8-36).

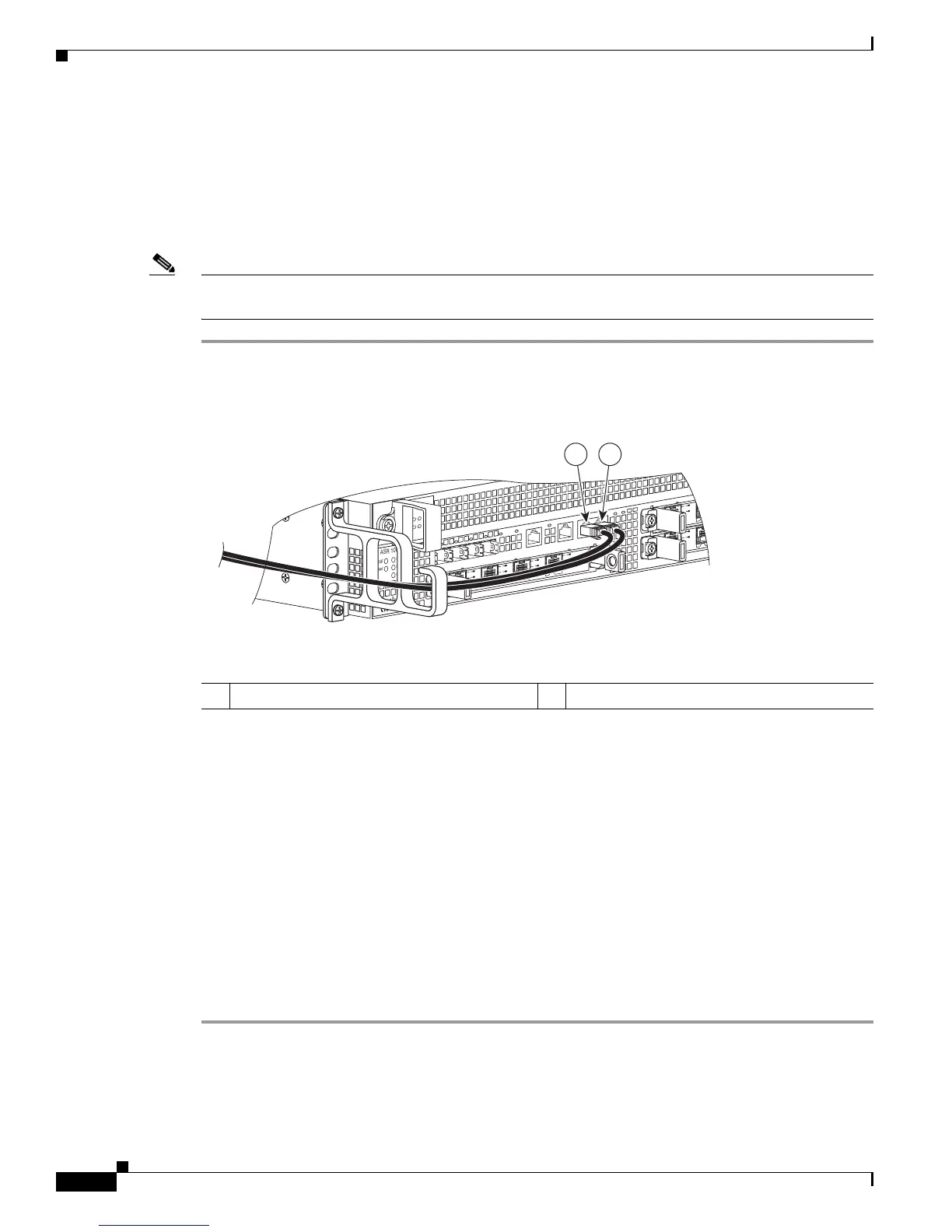

Figure 8-36 Cisco ASR 1002 Router Console Port Connection on Cisco Embedded ASR1000-RP1
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45
cable to the RJ-45 adapter (see Figure 8-36).
Step 3 Connect the adapter to your video terminal to complete the cable connection.
Step 4 Power on your video terminal.
Step 5 Configure your video terminal to match the following default console port settings:
• 9600 baud
• 8 data bits
• No parity generation or checking
• 1 stop bit
• No flow control
Step 6 Go to the “Connecting Cables” section on page 8-47 to continue the installation.
1 CON port connection 2 AUX port connection
280285
ASR 1002
stat
pwr
min
maj
crit
0
1
C
/
A
A
/
L
0
1
C/
A
A/
L
S
TAT
Q
E0
Q
E
1
Q
E
2
Q
E3
B
O
O
T
CA
R
RI
E
RLI
N
K
P
WR ST
A
TM
T
S
M
G
MT
AU
X
CO
N
S
P
A
-
4X
O
C
3-
P
O
S
S
T
AT
U
S
0
1
2
3
C
/
A
A
/
L
C
/
A
A
/
L
C/A
A
/
L
C
/
A
A
/
L
1 2

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
