9-2
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 9 Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Description
The Cisco ASR 1002-F Router supports:
• The same features and components as the Cisco ASR 1002 Router
• An integrated 4xGE SPA interface
• Fixed 2.5 GB of system bandwidth and 4 GB DRAM
• A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002
Built-in Gigabit Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in
Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide.
Note Only Cisco software release four code supports the Cisco ASR 1002-F Router. Do not use earlier
versions of Cisco software.
This section contains the following topics:
• Front View, page 9-2
• Rear View, page 9-2
• Power Supplies in the Cisco ASR 1002-F Router, page 9-9
Front View

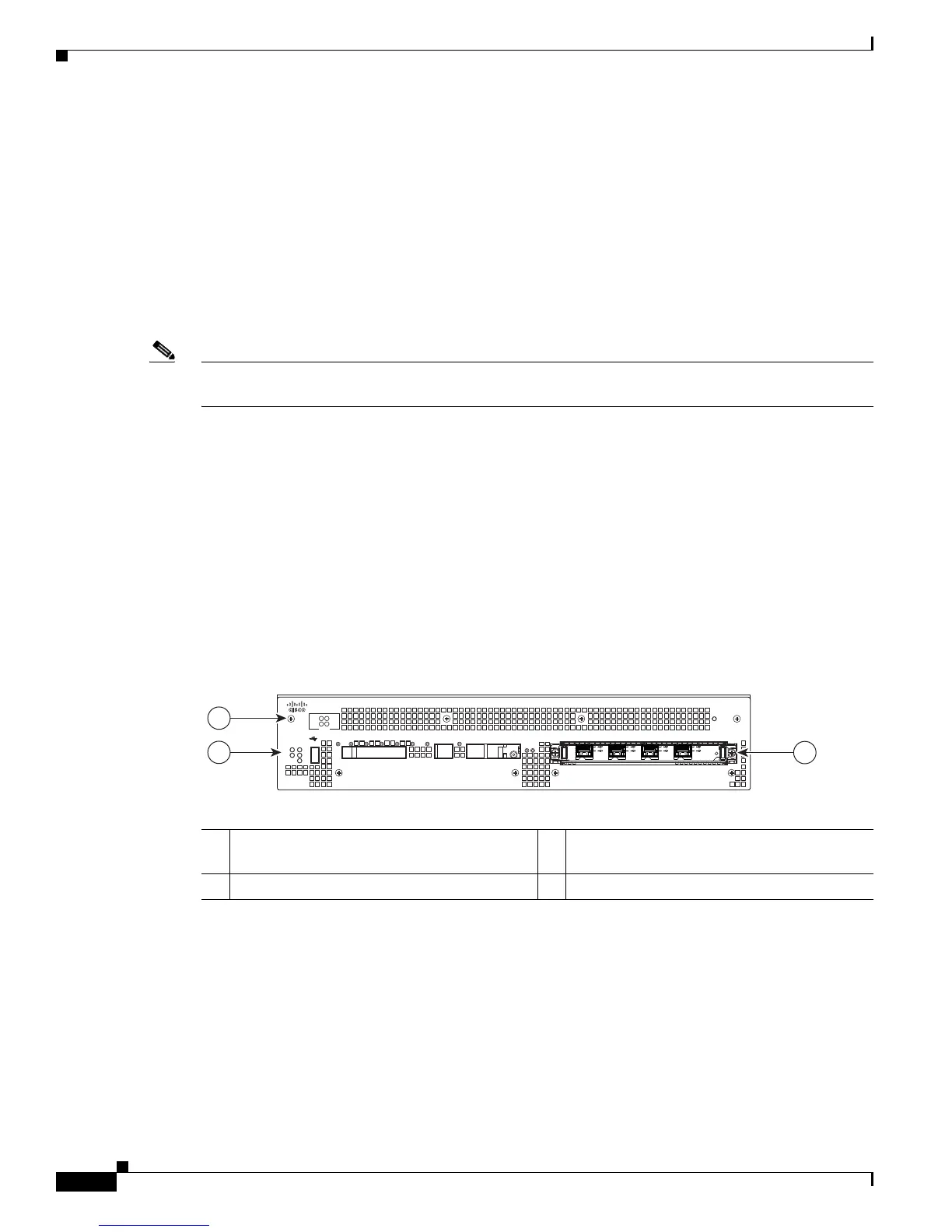

Figure 9-1 shows the front of the Cisco ASR 1002-F Router with the Cisco ASR 1002-ESP-F, Cisco ASR
1000 route processor, and a SPA-4XOC12-POS installed.
Figure 9-1 Cisco ASR 1002-F Router—Front View
Rear View
Figure 9-2 shows the rear of the Cisco ASR 1002-F Router with AC power supplies installed.
1 Integrated Cisco ASR 1002-ESP-F 3 Cisco ASR 1002-SIP10-F with a SPA
installed
2 Integrated Cisco RP — —
274680
PWR
STAT
ESP
STBY
ACTV
PWR
STAT
MIN
MAJ
CRIT
0
1
STAT
GE0 GE1 GE2 GE3
BOOT BITS
LINK MGMT
CC
CON
AUX
CARRIER
PWR
STAT
CLASS 1 LASER PRODUCT
ASR1002-F
S
TAT
US
SPA-4XOC3-POS
C
/
A
A
/
L
C
/
A
A
/
L
C
/
A
A
/
L
C
/
A
A
/
L
0
1
2
3
3
1
2
