Chapter 9 Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Description

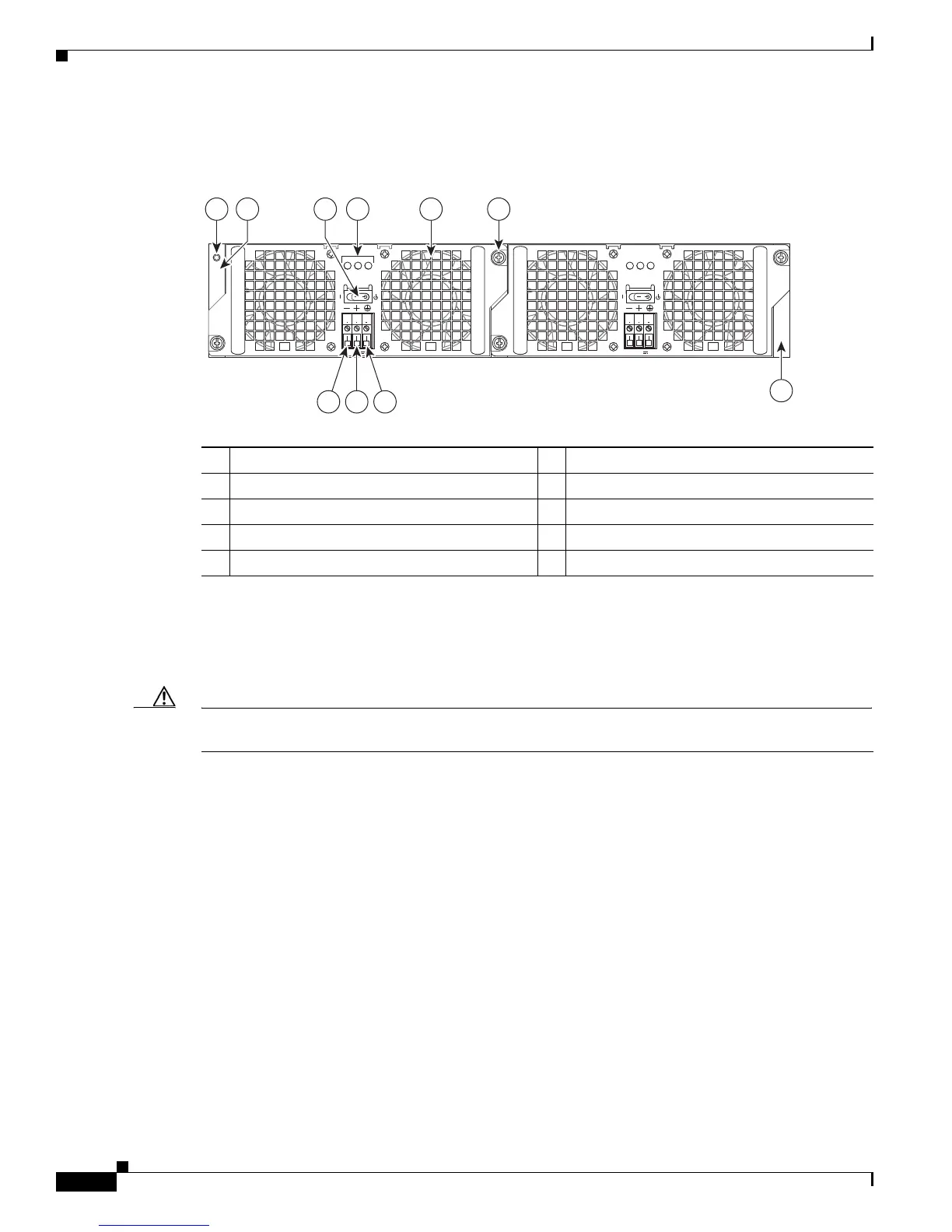

Figure 9-3 shows the rear of the Cisco ASR 1002-F Router with DC power supplies installed.
Figure 9-3 Cisco ASR 1002-F Router With DC Power Supplies—Rear View
Internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. The fans are located at the rear of the chassis. A two-hole ground connector lug
is located on the side of the chassis. Two power supplies, either two AC power supplies or two DC power
supplies, are accessed from the rear of the router.
Caution Use only AC power supplies or DC power supplies in the Cisco ASR 1002-F Router. Do not mix power
supply types.
Cisco ASR 1002-F Router Slot Numbering
The Cisco ASR 1002-F Router contains:
• One Cisco integrated RP— R0
• One integrated Cisco ASR1000-ESP-F forwarding processor— F0
• One integrated ASR1002-SIP10-F—slot 0
• 4-Gigabit Ethernet built-in interface—slot 0/0
• SPA-5x1GE-V2—slot 0/1
1 Chassis ESD socket 6 Captive installation screw
2 DC power supply slot 0 label 7 DC power supply slot 1 label
3 DC power supply Standby/On (|) switch 8 Ground lead
4 DC power supply LEDs 9 Positive lead
5 Fan 10 Negative lead
280289
OUTPUT INPUT
FAIL
OK OK
FAN
-48V/-60V 16A
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
OUTPUT INPUT
FAIL
OK OK
FAN
-48V/-60V 16A
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
9 810
4 5 63
0
1
7
1
2
