10-35
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 10 Cisco ASR 1002-X Router Overview and Installation
Cisco ASR 1002-X Router Power Supplies
Note The color coding of the –48 VDC input power supply leads depends on the color coding of the –48 VDC
power source at your site. Typically, green or green/yellow is used for ground. Ensure the lead color
coding you choose for the –48 VDC input power supply matches the LED color coding used at the –48
VDC power source.
Warning
When you install the unit, the ground connection must always be made first and disconnected last.
Statement 1046
This section describes how to connect the –48 VDC power supply in the Cisco ASR 1002-X Router:
Step 1 At the rear of the router, check that the power supply Standby switch is in the Standby (see Figure 10-24)
position.

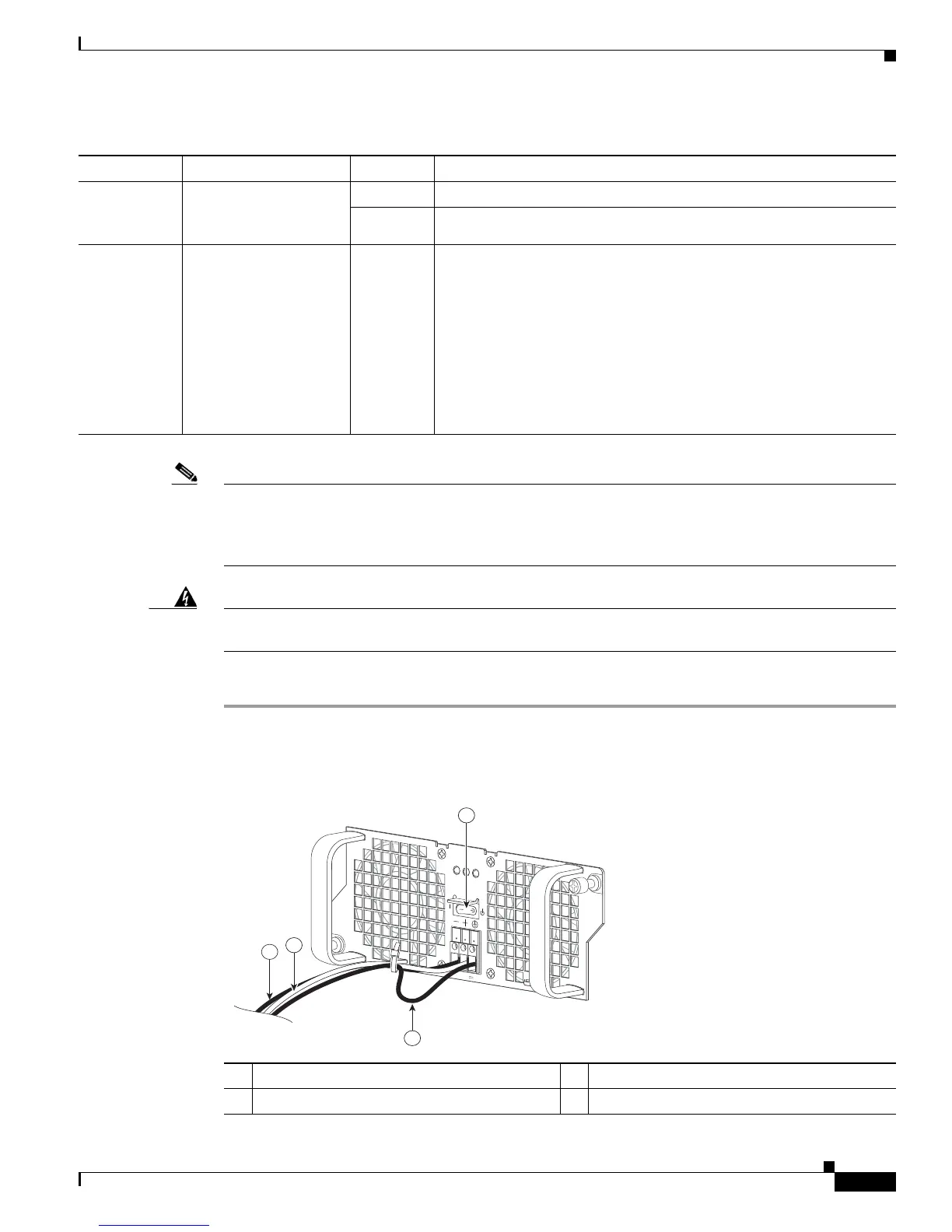

Figure 10-24 Cisco ASR 1002-X Router –48 VDC Power Supply Terminal Block Cable Connections
FAN OK A bi-color LED
indicates power supply
fan status
Green The LED turns s green when all the fans are operational.
Red The LED turns red when a fan failure is detected.
OUTPUT
FAIL
Power supply activity Red When the LED is off, it signals that the –48 VDC output voltage is
within the normal operating range. Output voltage between the
minimum and maximum limits will not create an output fail alarm,
and output voltages below the minimum or above the maximum will
create an output fail alarm.
The Led turns red to indicate that the –48 VDC output is out of the
specified range.
When you turn the power supply on, the LED turns red for 2 to 3
seconds to test the LED operation before going off.
Table 10-10 Cisco ASR 1002-X Router –48 VDC Power Supply LEDs
LED Label LED Color Description
1 Ground lead with service loop and tie wrap 3 Negative lead
2 Positive lead 4 –48 VDC power supply Standby switch
OUTPUT INP
U
T
FAIL
O
KOK
FAN
-48V/-6
0V
16A
Thi
s un
it mig
h
t
h
ave mor
e
th
a
n
one power supply connection.
All con
n
e
ctions m
u
st
be rem
o
v
ed
to
d
e-e
nergize the unit.
3
1
2
280290
4
