Cisco ASR 1000 Series Hardware Installation Guide

12-15
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 12 Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Description
AC Power Supply for Cisco ASR 1001 Router
The AC power supply input inlet is an IEC connector. The current rating on the connector is 10 A. The
AC power supply is secured into the chassis with two captive screws mounted on the faceplate.

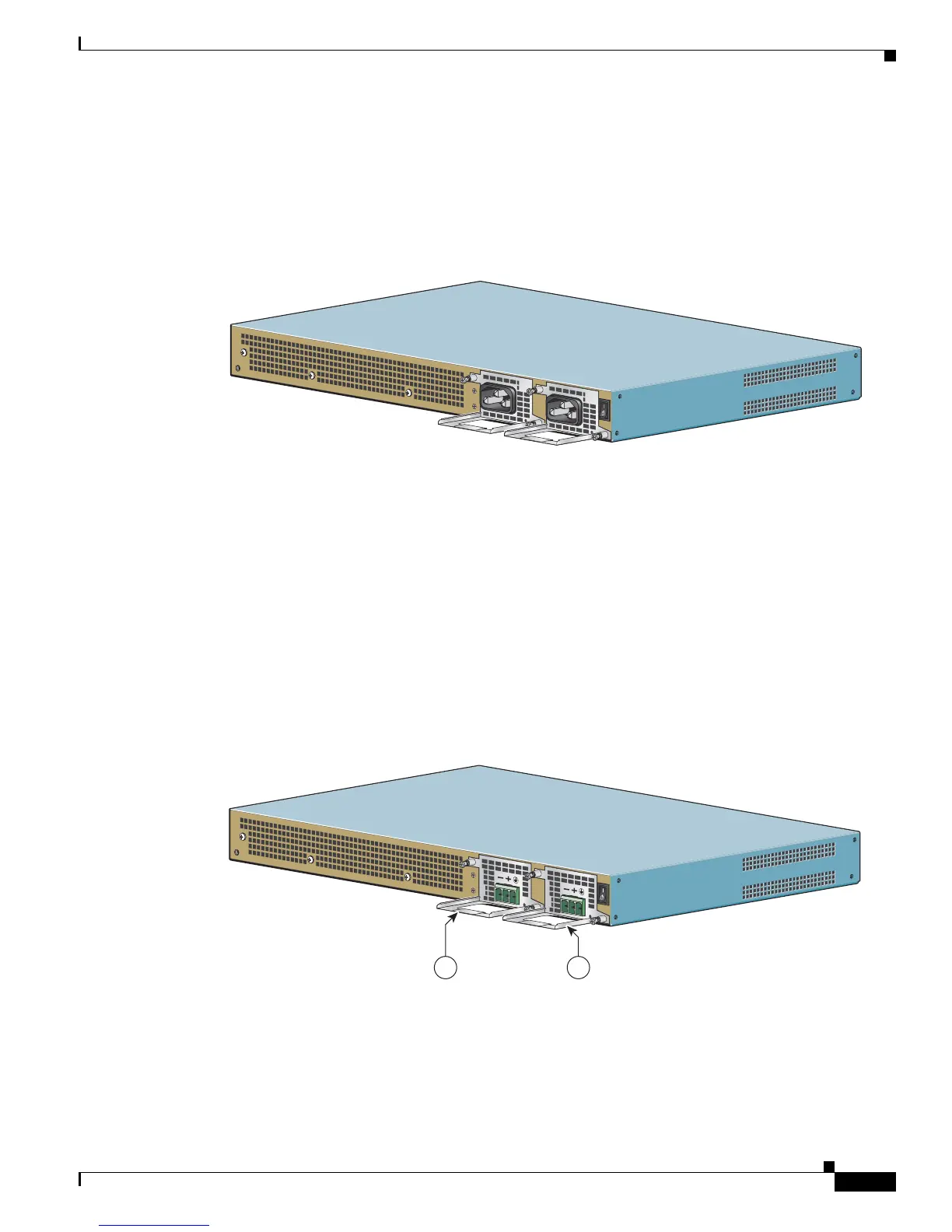

Figure 12-11 shows the AC power supply for the Cisco ASR 1001 Router.
Figure 12-11 AC Power Supply for the Cisco ASR 1001 Router
–48 VDC Power Supply for Cisco ASR 1001 Router
The –48 VDC power supply input connector accepts a Euro-style terminal block. It is compliant with
safety agencies’ guidelines and electrical requirements of the supply. The DC power supply operates
within specification from –40.5 to –72 VDC continuously once the power supply DC input reaches the
threshold of –43.5 V.
The –48 VDC power input connector Euro-style terminal block will accept three wires: one positive
polarity, one negative polarity, and one ground wire. The connection order is negative (–), positive (+),
and GND. The DC power supply is secured into the system chassis with two captive screws mounted on
the faceplate.
Figure 12-12 shows the –48 VDC power supplies for the Cisco ASR 1001 Router.
Figure 12-12 –48 VDC Power Supply for the Cisco ASR 1001 Router
The output voltage alarm is declared when the output voltage is below the low end of the minimum or
above the high end of the maximum limits. When the output voltage is above the high end of the
minimum or below the low end of the maximum limits, the red state will not be activated.
Table 12-5 shows the –48 VDC power supply output voltage alarm ranges.
207700
0
1
207702
21
