2-37
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1002 Router
Cisco ASR 1002 AC Power Supply LEDs and Connector
Figure 2-11 shows the AC power supplies at the rear of the Cisco ASR 1002 Router. The Cisco
ASR 1002 Router supports up to two power supplies.

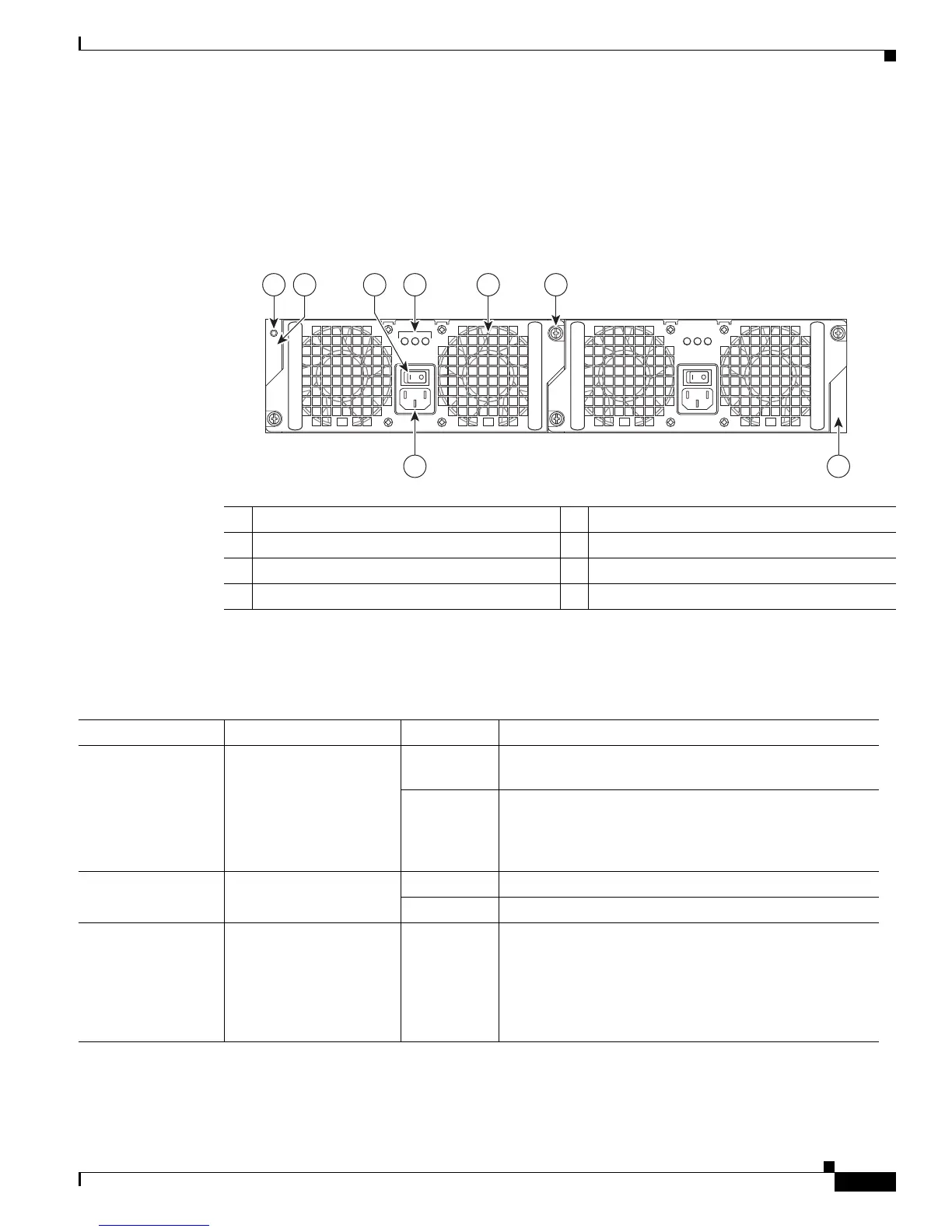

Figure 2-11 Cisco ASR 1002 Router AC Power Supply
Table 2-20 describes the power supply LEDs and connectors on the rear of the chassis.
1 Chassis ESD socket 5 AC power supply fan
2 AC power supply slot number 0 6 AC power supply captive installation screw
3 AC power supply On (|) /Off (O) switch 7 AC power supply slot number 1
4 AC power supply LEDs 8 AC power inlet
OUTPUT INPUT
FAIL
OK OK
FAN OUTPUT INPUT
FAIL
OK OK
FAN
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
0
1
8 7
280288
41 5 63
2
Table 2-20 Cisco ASR 1002 Router Power Supply LEDs
LED Label LED Color Description
INPUT OK Power supply activity Green LED illuminates green to signal that the power supply
input voltage is greater than 85 V.
None If LED is not illuminated, then the input voltage is less
than 70 V or the power supply is turned off. For an AC
input voltage between 70 V and 85V, the INPUT OK LED
can be either on, off, or flashing
FAN OK Bi-color LED indicates
fan status
Green LED illuminates green when all fans are operational.
Red The LED illuminates red when a fan failure is detected.
OUTPUT FAIL Power supply activity Red LED is red and turned off to signal that the AC output
voltages are within the normal operating range; output
voltage between the minimum and maximum limits will
not create an output fail alarm, and output voltages below
the minimum or above the maximum will create an output
fail alarm.
