Chapter 3 Switch Installation
Installing the Switch

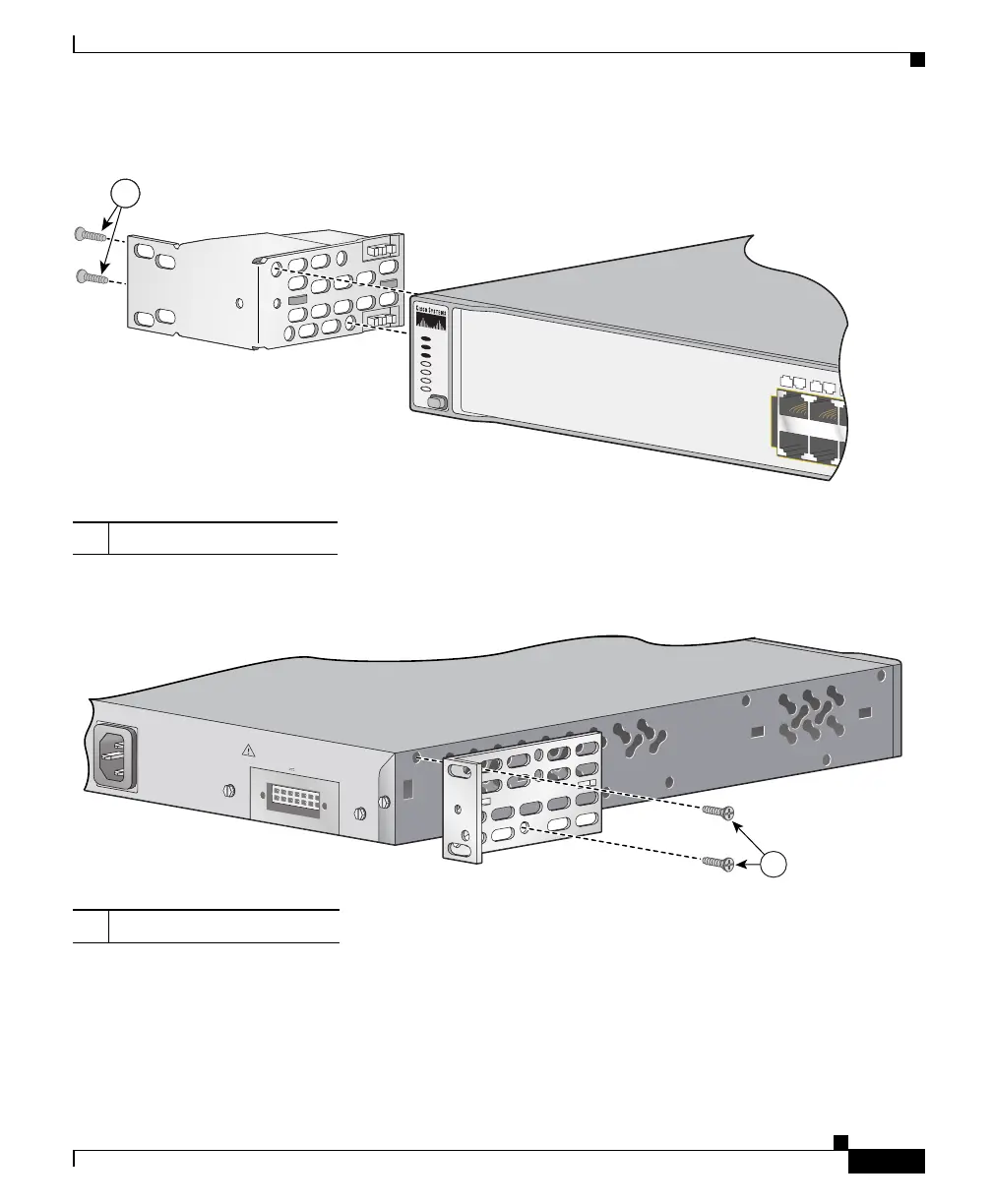

Figure 3-20 Attaching Brackets for 24-Inch Racks, Front Panel Forward
Figure 3-21 Attaching Brackets for 19-Inch Racks, Rear Panel Forward
1 Phillips flat-head screws
1 Phillips flat-head screws
