Cisco Catalyst 3750 Hardware Installation Guide

Chapter 3 Switch Installation
Connecting to an SFP Module
3-58
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Connecting to 1000BASE-T SFP Modules
Follow these steps to connect a Category 5 cable to a 1000BASE-T SFP module:
Caution To prevent ESD damage, follow your normal board and component handling
procedures.
Step 1 When connecting to servers, workstations, and routers, insert a four twisted-pair,
straight-through cable in the RJ-45 connector. When connecting to switches or
repeaters, insert a four twisted-pair, crossover cable.
Note When connecting to a 1000BASE-T device, be sure to use a four twisted-pair,
Category 5 cable.

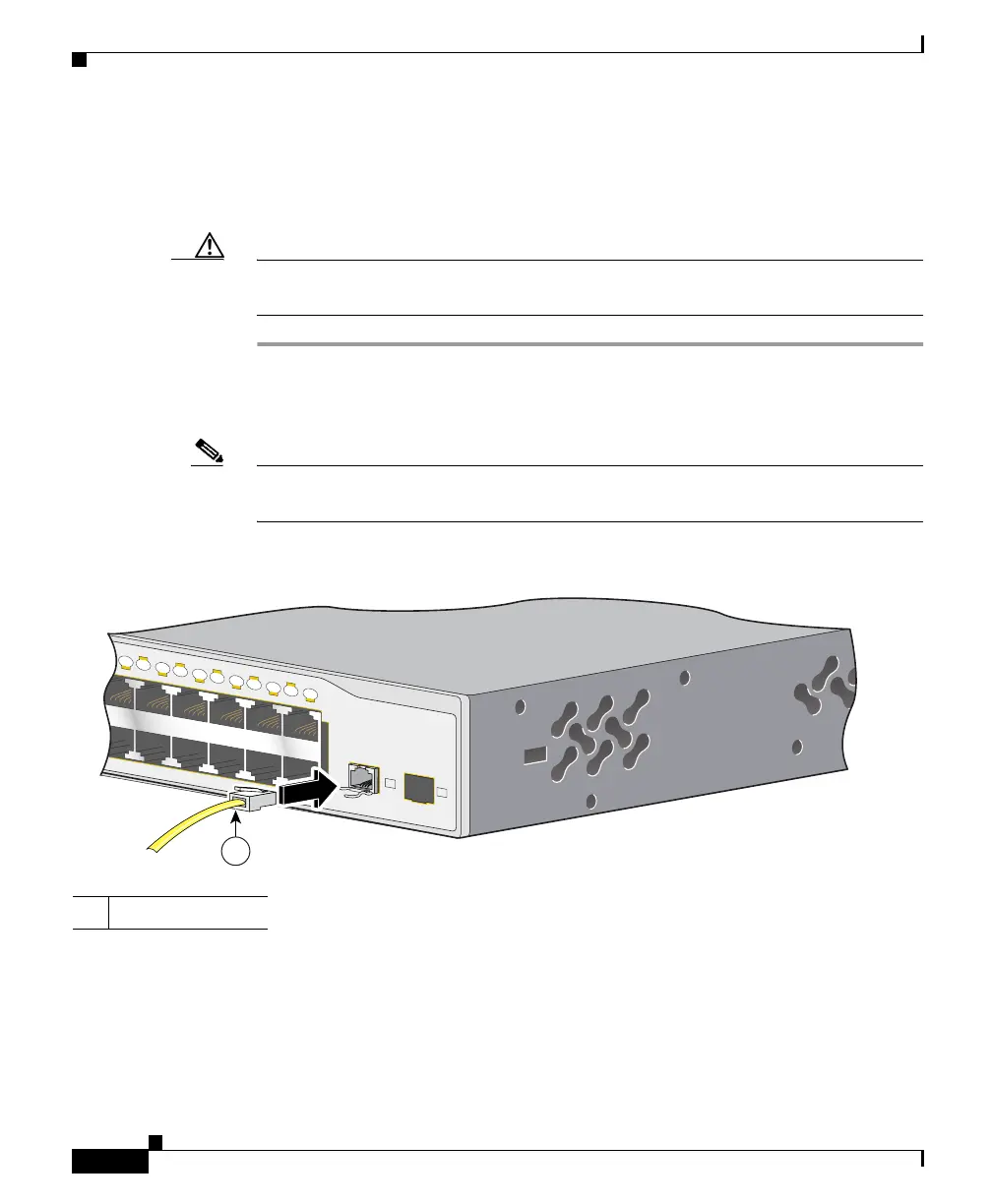

Figure 3-47 Connecting to an SFP Module Port
Step 2
Insert the other cable end in an RJ-45 connector on a target device.
Step 3 Observe the port status LED.
The LED turns green when the switch and the target device have an established
link.
1 RJ-45 connector
Catalyst 3750
SERIES
13
X
1
4X
2
3X
24X
13
14
15
16
17
18
19
20
21
22
23
24
1
2
97348
1

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
