Cisco Catalyst 3750 Hardware Installation Guide

Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
B-6
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Four Twisted-Pair Cable Pinouts for 10/100 Ports

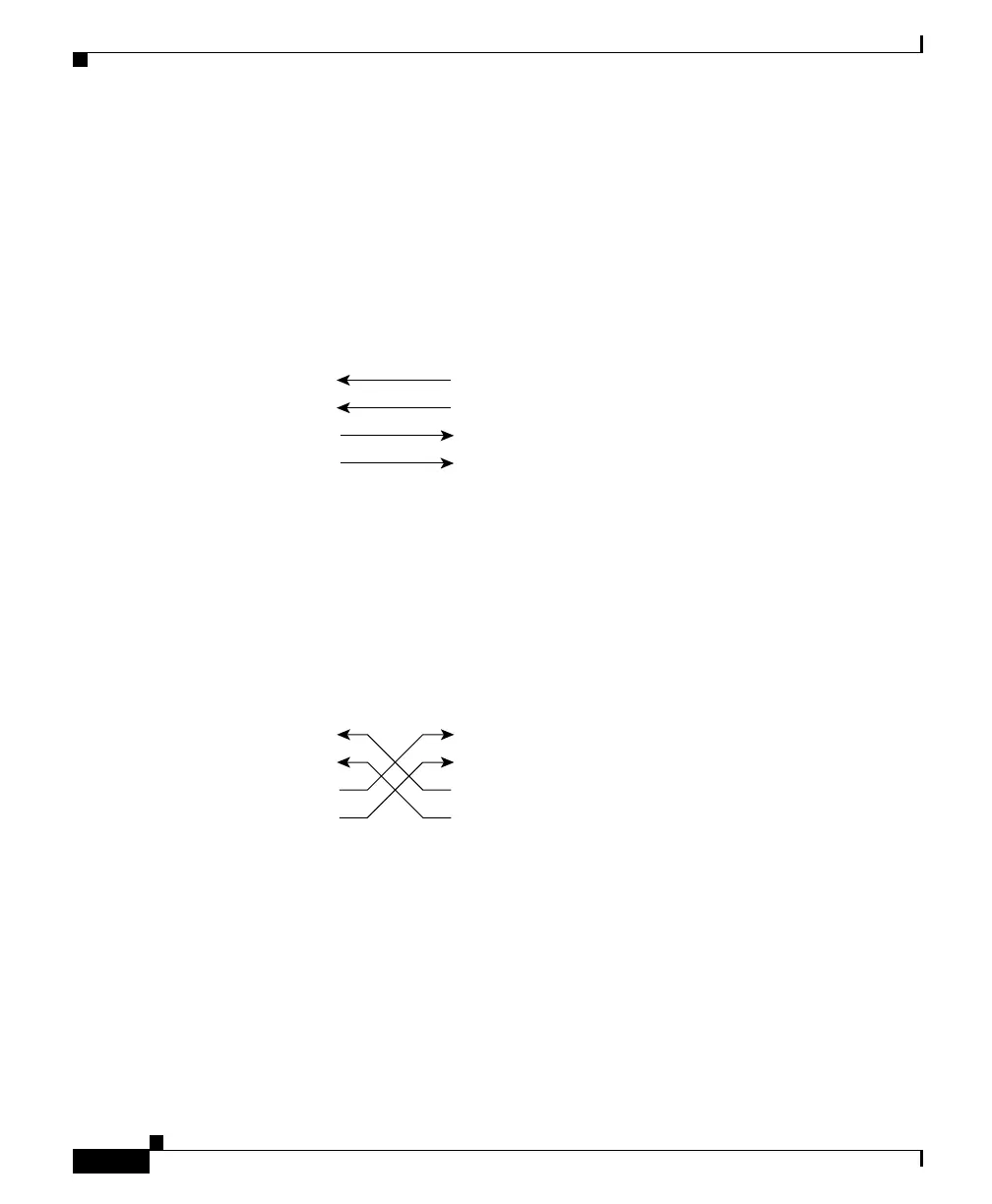

Figure B-8 and Figure B-9 show the schematics of four twisted-pair cables for
10/100 ports.
Figure B-8 Four Twisted-Pair Straight-Through Cable Schematic for
10/100 Ports
Figure B-9 Four Twisted-Pair Crossover Cable Schematic for 10/100 Ports
1 RD+
2 RD-
3 TD+
6 TD-
1 TD+
Switch Router or PC
2 TD-
3 RD+
6 RD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65271
1 RD+
2 RD-
3 TD+
6 TD-
1 RD+
Switch Switch
2 RD-
3 TD+
6 TD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65273

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
