Cisco Catalyst 3750 Hardware Installation Guide

3-41
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Chapter 3 Switch Installation
Installing and Removing SFP Modules

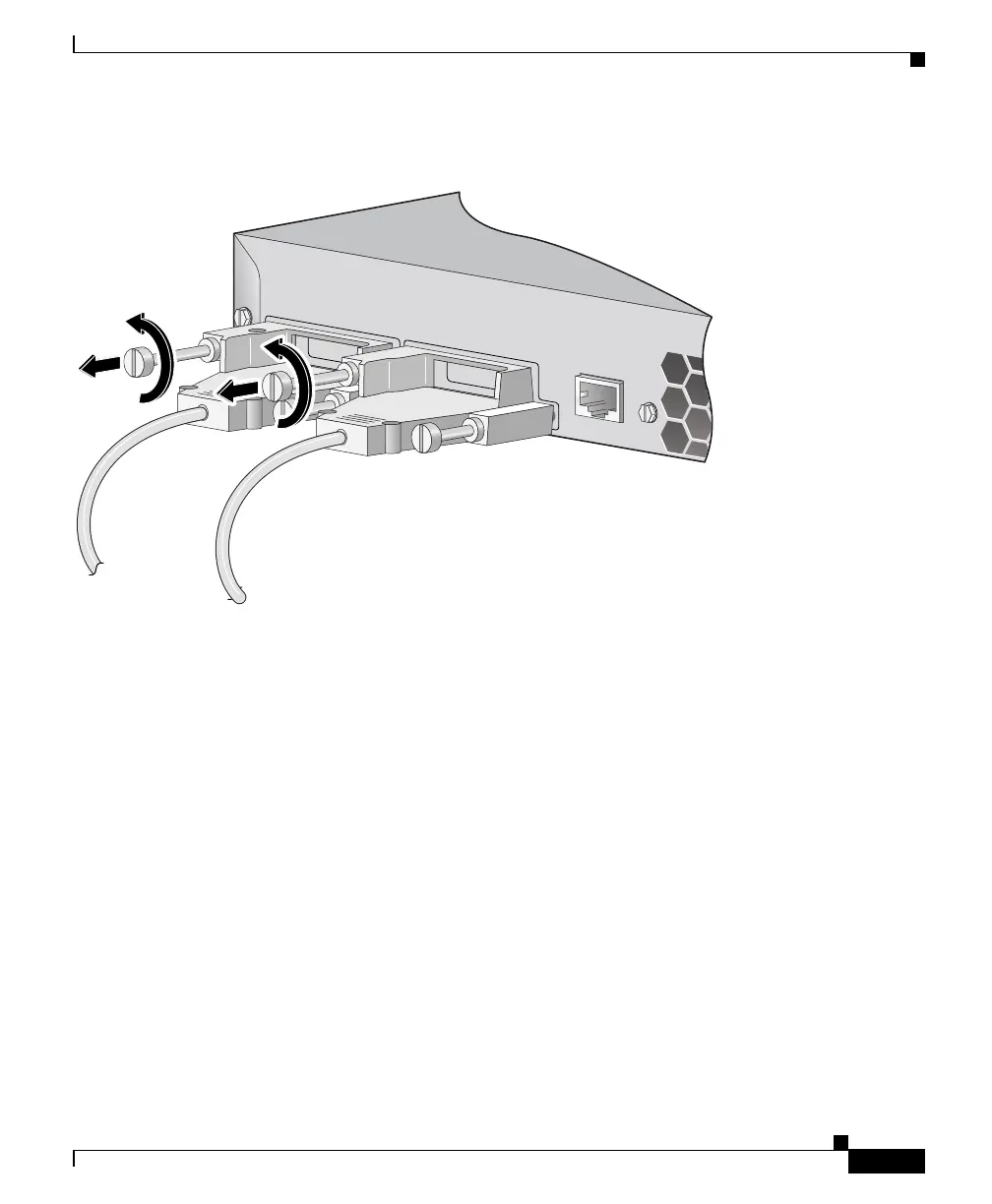

Figure 3-36 Incorrect Removal of a StackWise Cable from a StackWise Port
Installing and Removing SFP Modules
These sections describe how to install and remove SFP modules. SFP modules are
inserted into SFP module slots on the front of the Catalyst 3750 switches. These
field-replaceable modules provide uplink interfaces.
You can use any combination of SFP modules. Refer to the Catalyst 3750 release
notes for the list of SFP modules that the Catalyst 3750 switch supports. Each port
must match the wave-length specifications on the other end of the cable, and the
cable must not exceed the stipulated cable length for reliable communications.
See the “Installation Guidelines” section on page 3-7 for cable stipulations for
SFP connections.
Use only Cisco SFP modules on the Catalyst 3750 switch. Each SFP module has
an internal serial EEPROM that is encoded with security information. This
encoding provides a way for Cisco to identify and validate that the SFP module
meets the requirements for the switch.
CONSOLE
STACK 1
STACK 2
86827

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
