Cisco Catalyst 3750 Hardware Installation Guide

Chapter 3 Switch Installation
Installing the Switch
3-20
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Note Installing the switch in a 24-inch rack requires an optional bracket kit not included
with the switch. You can order a kit containing the 24-inch rack-mounting
brackets and hardware from Cisco. For the Catalyst 3750G-24TS switches, order
part number RCKMNT-3550-1.5RU=. For the Catalyst 3750-24TS, 3750G-24T,
3750G-12S, and 3750-48TS switches, order part number RCKMNT-1RU=.
Removing Screws from the Switch
If you plan to install the switch in a rack, you must first remove screws in the
switch chassis so that mounting brackets can be attached. Figure 3-10 and
Figure 3-11 show how to remove the chassis screws in a one-rack-unit (RU)
switch.

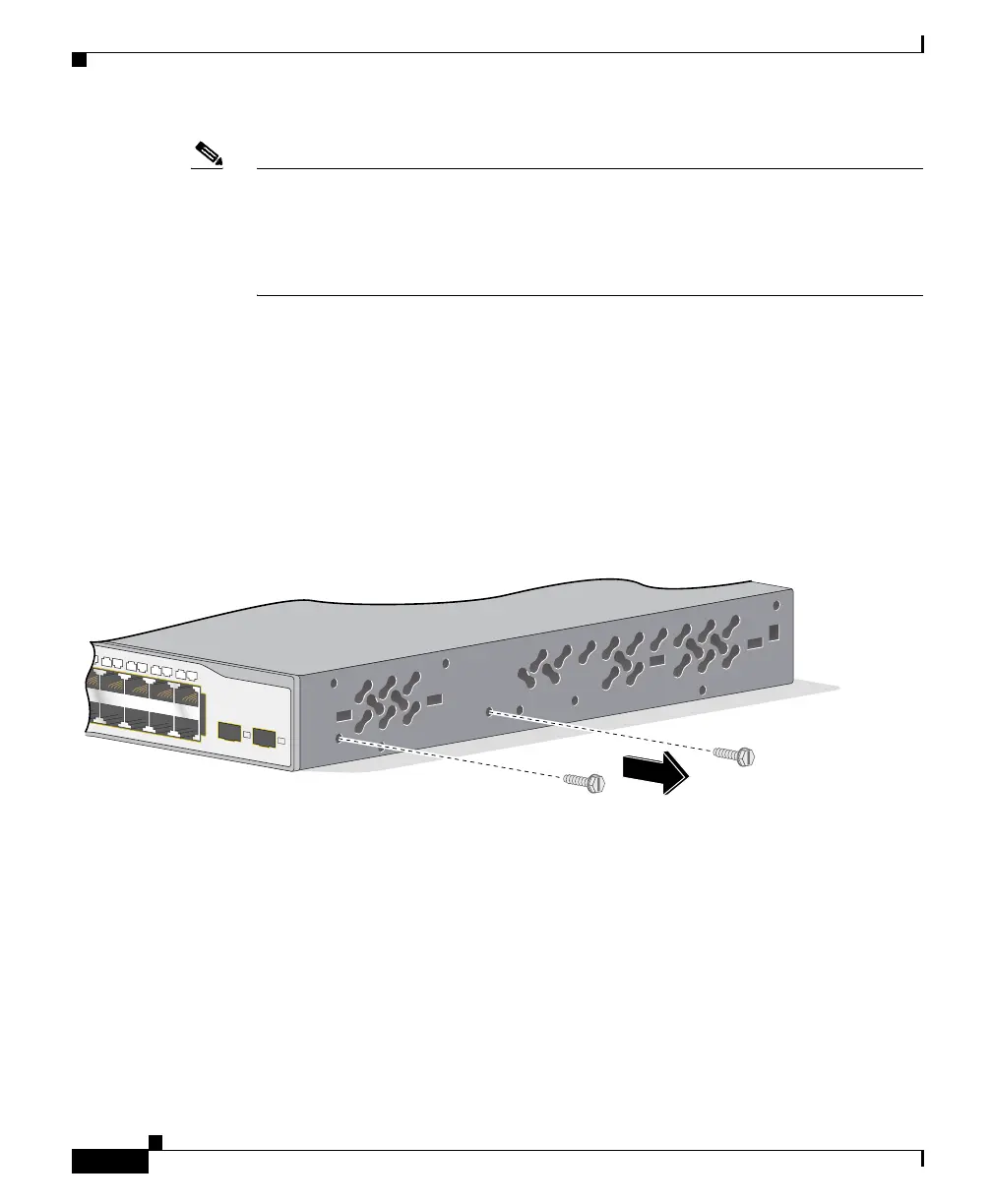

Figure 3-10 Removing Screws from the Catalyst 3750-24TS, 3750G-24T, 3750-24PS, 3750-48PS,
3750G-16TD, and 3750-48TS Switches
Catalyst 3750
SERIES
23X
24X
1
2
16
17
18
19
20
21
22
23
24
86819

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
