Chapter 3 Switch Installation
Installing the Switch

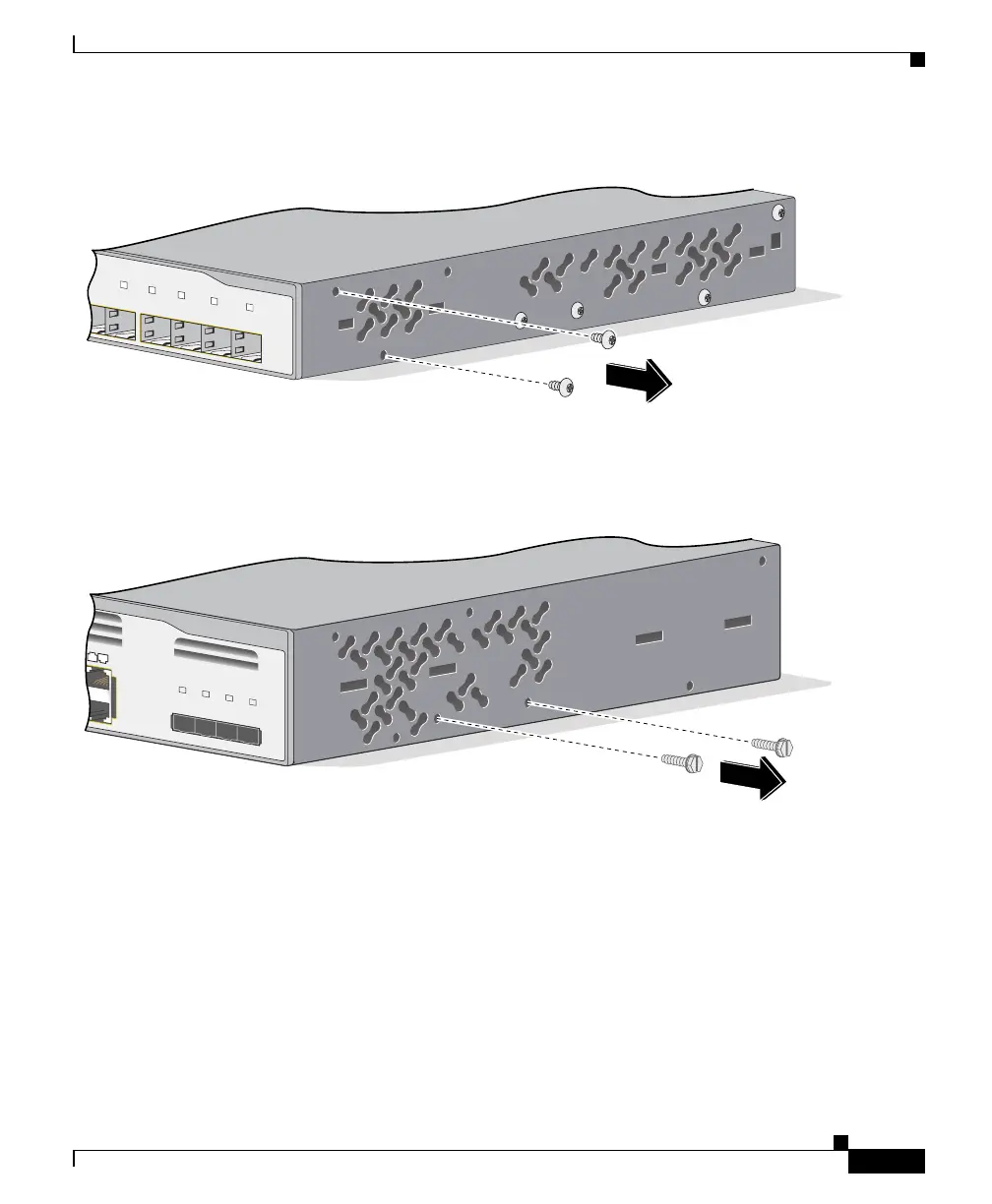

Figure 3-11 Removing Screws from the Catalyst 3750G-12S Switch
Figure 3-12 shows how to remove the chassis screws in a 1.5-RU switch.
Figure 3-12 Removing Screws from the 3750G-24TS Switch
Attaching Brackets to the Catalyst 3750G-24TS Switch
The bracket orientation and the brackets that you use depend on whether you are
attaching the brackets for a 19-inch or a 24-inch rack. For 19-inch racks, use part
number 700-11523-XX; for 24-inch racks, use part number 700-12398-XX.
Figure 3-13 through Figure 3-18 show how to attach each type bracket to one side
of the switch. Follow the same steps to attach the second bracket to the opposite
side.
Catalyst 3750
SERIES
16
8
12
9
10
11
97170
Catalyst 3750
SERIES
23X
24X
23
24
25
2
6
27
28
86820

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
