Cisco Catalyst 3750 Hardware Installation Guide

Appendix B Connector and Cable Specifications
Connector Specifications
B-2
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
10/100 and 10/100 /1000 Ports
The 10/100 and 10/100/1000 Ethernet ports on Catalyst 3750 switches use
standard RJ-45 connectors and Ethernet pinouts with internal crossovers.

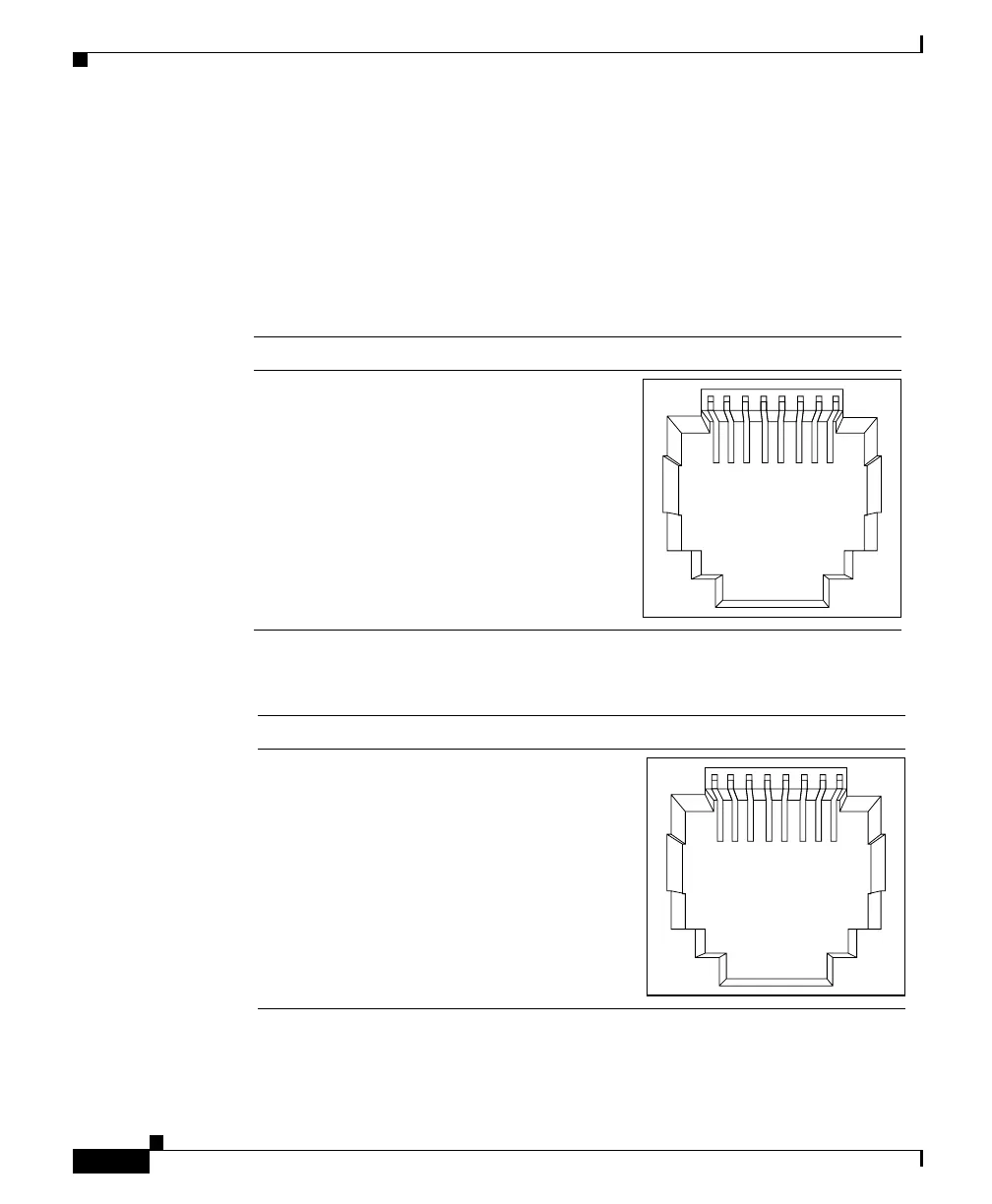

Figure B-2 and Figure B-1 show the pinouts.
Figure B-1 10/100 Port Pinouts
Figure B-2 10/100/1000 Port Pinouts
H5318
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
