Installing the Switch
Wall Mounting
To install the switch on a wall, follow the instructions in these procedures:
• Attaching the Brackets to the Switch for Wall-Mounting, page 3-33
• Attaching the RPS Connector Cover, page 3-34
• Mounting the Switch on a Wall, page 3-35
Note The illustrations in this section show the Catalyst 3750G-24TS switch as an
example. All the Catalyst 3750 switches are wall-mounted following the same
procedures.
Attaching the Brackets to the Switch for Wall-Mounting
Figure 3-30 shows how to attach a 19-inch bracket to one side of the switch.
Follow the same steps to attach the second bracket to the opposite side.

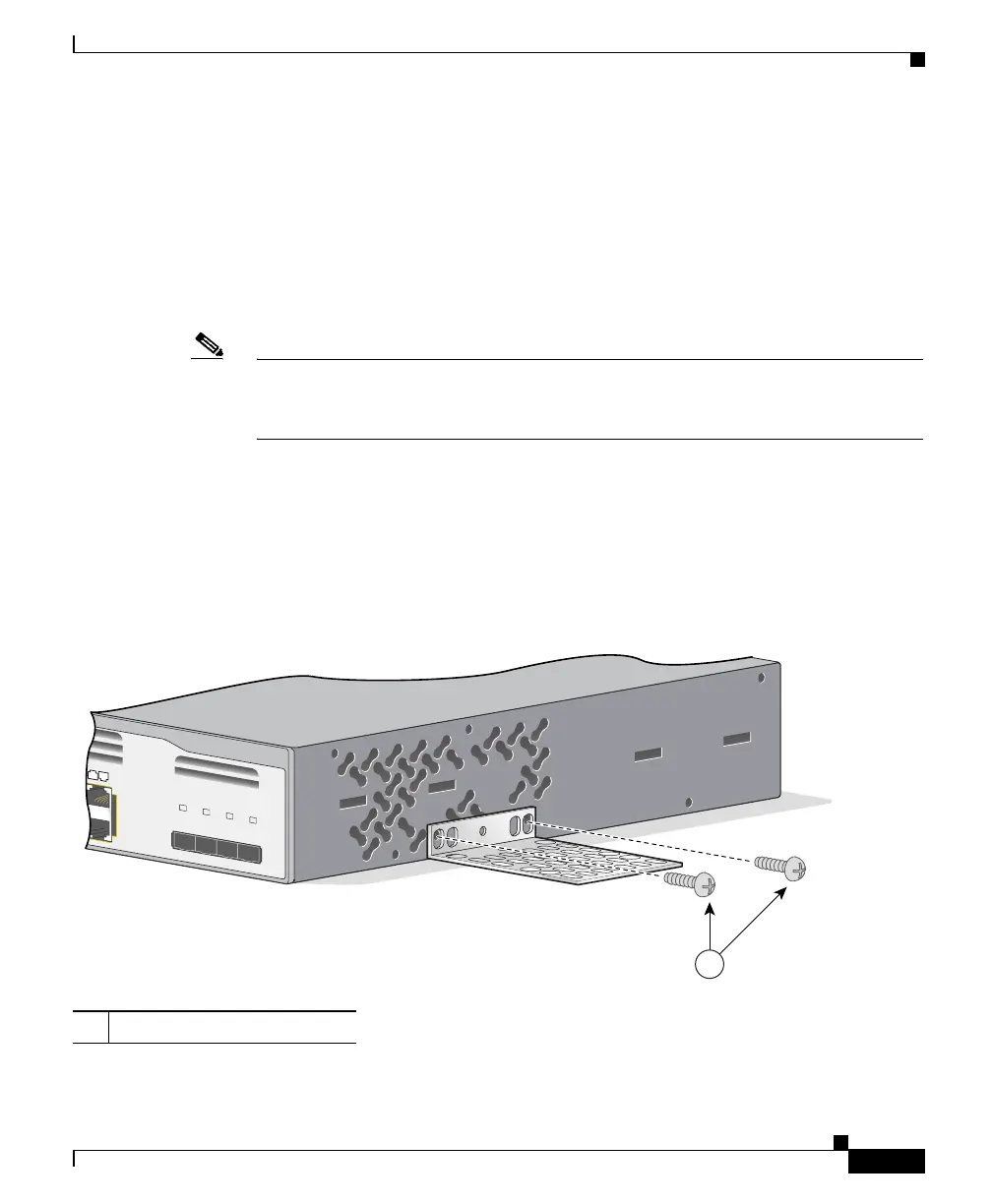

Figure 3-30 Attaching the 19-inch Brackets for Wall-Mounting
1 Phillips truss-head screws
Catalyst 3750
SERIES
23X
24X
23
24
25
26
27
28
1
86687

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
