Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
Cable and Adapter Specifications
These sections describe the cables and adapters used with Catalyst 3750 switches.
Two Twisted-Pair Cable Pinouts

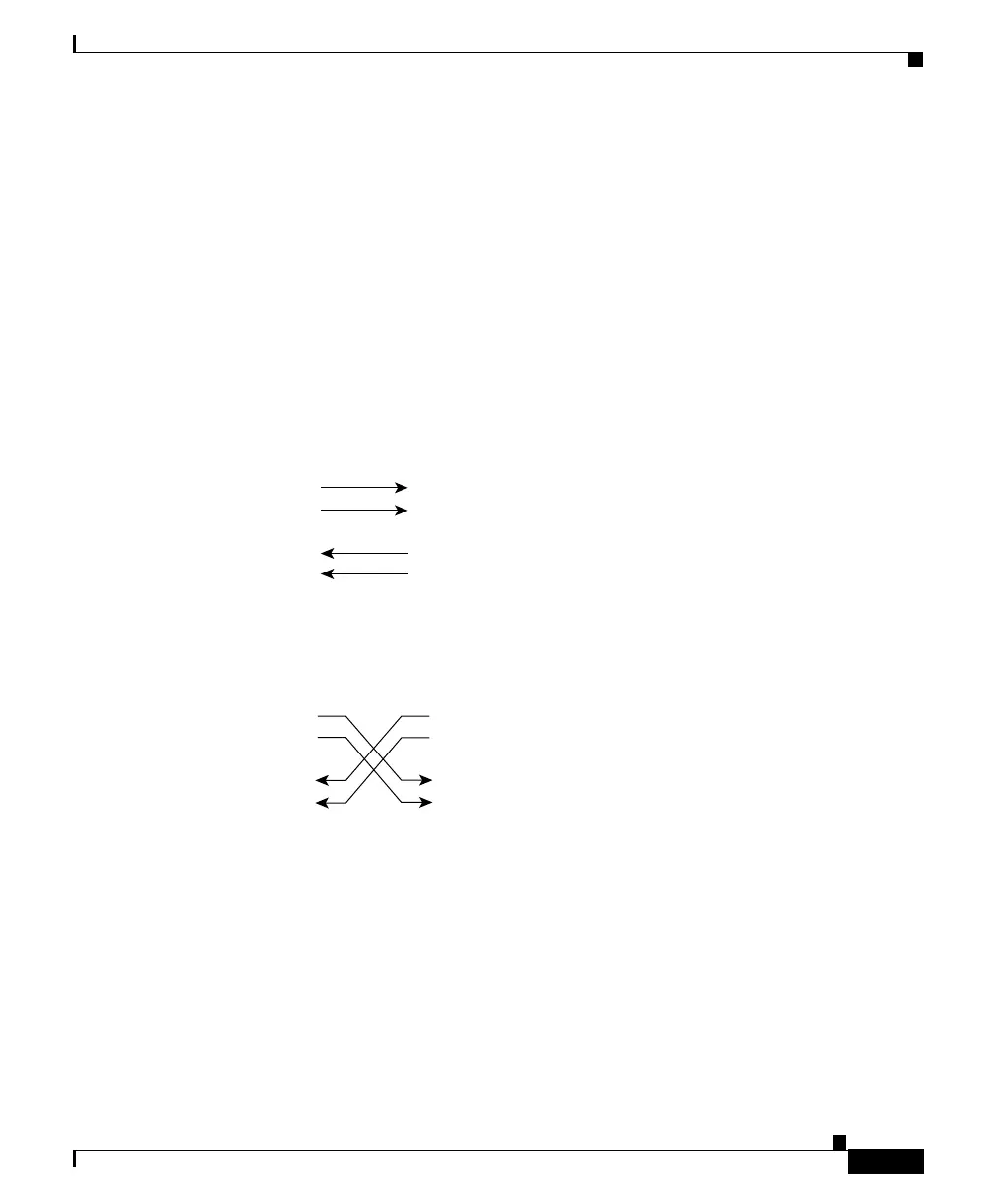

Figure B-6 and Figure B-7 show the schematics of two twisted-pair cables for
10/100 ports.
Figure B-6 Two Twisted-Pair Straight-Through Cable Schematic
Figure B-7 Two Twisted-Pair Crossover Cable Schematic
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
