3-45
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Chapter 3 Switch Installation
Installing and Removing XENPAK Modules

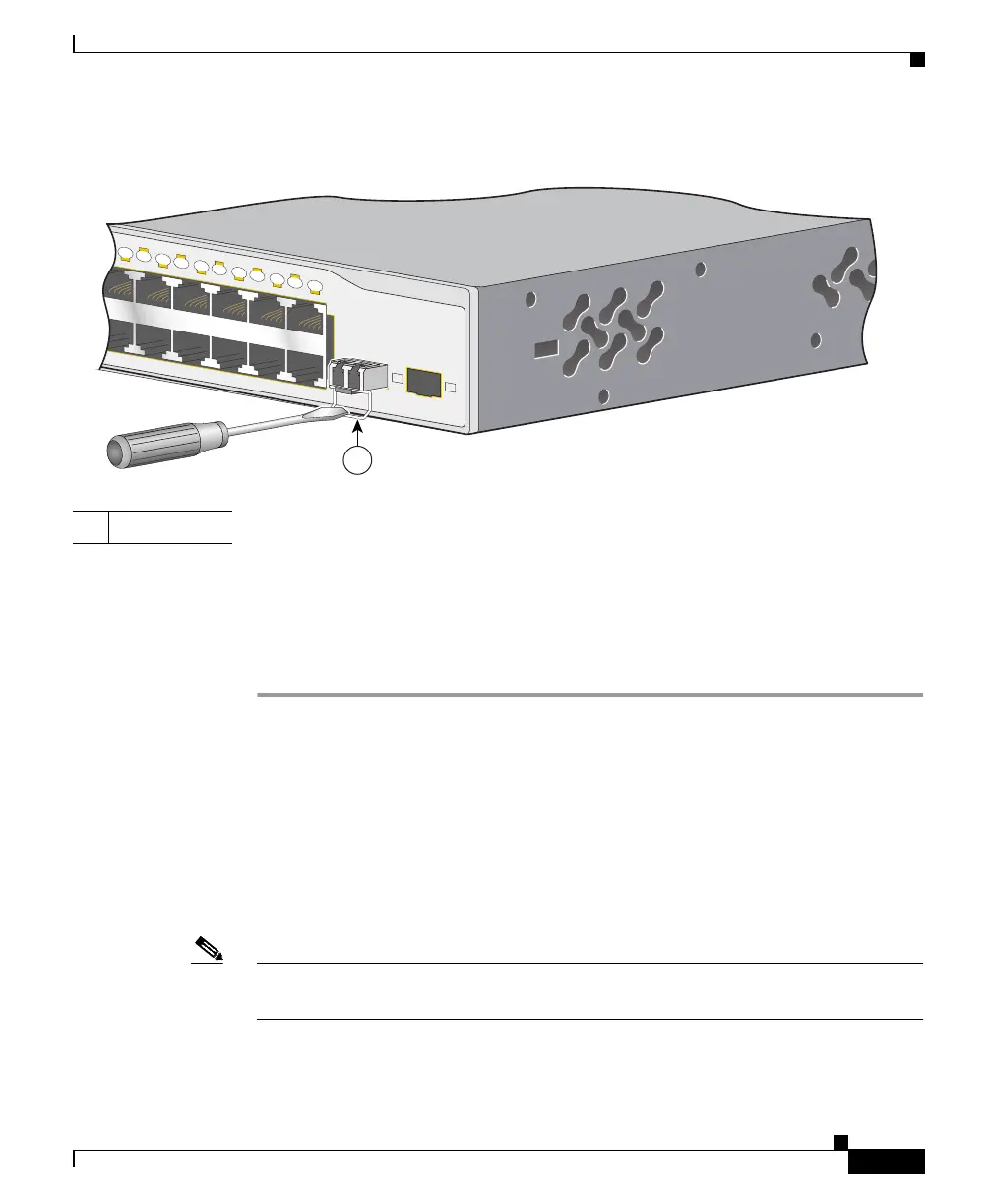

Figure 3-39 Removing a Bale-Clasp Latch SFP Module by Using a Flat-Blade Screwdriver
Step 5
Grasp the SFP module between your thumb and index finger, and carefully
remove it from the module slot.
Step 6 Place the removed SFP module in an antistatic bag or other protective
environment.
Installing and Removing XENPAK Modules
These sections describe how to install and remove XENPAK modules. XENPAK
modules are inserted into the XENPAK module slot on the front panel of the
Catalyst 3750G-16TD switch. These field-replaceable transceiver modules
provide 10-Gigabit interfaces.
Note The 10-Gigabit Ethernet XENPAK modules are referred to as 10-Gigabit Ethernet
module ports in the switch software documentation.
1 Bale clasp
Catalyst 3750
SERIES
13X
14X
23X
24X
13
14
15
16
17
18
19
20
21
22
23
24
1
2
86554
1
