Connecting StackWise Cable to StackWise Ports
Note When the connectors are not being used, replace the dust covers on them
to protect them from dust.

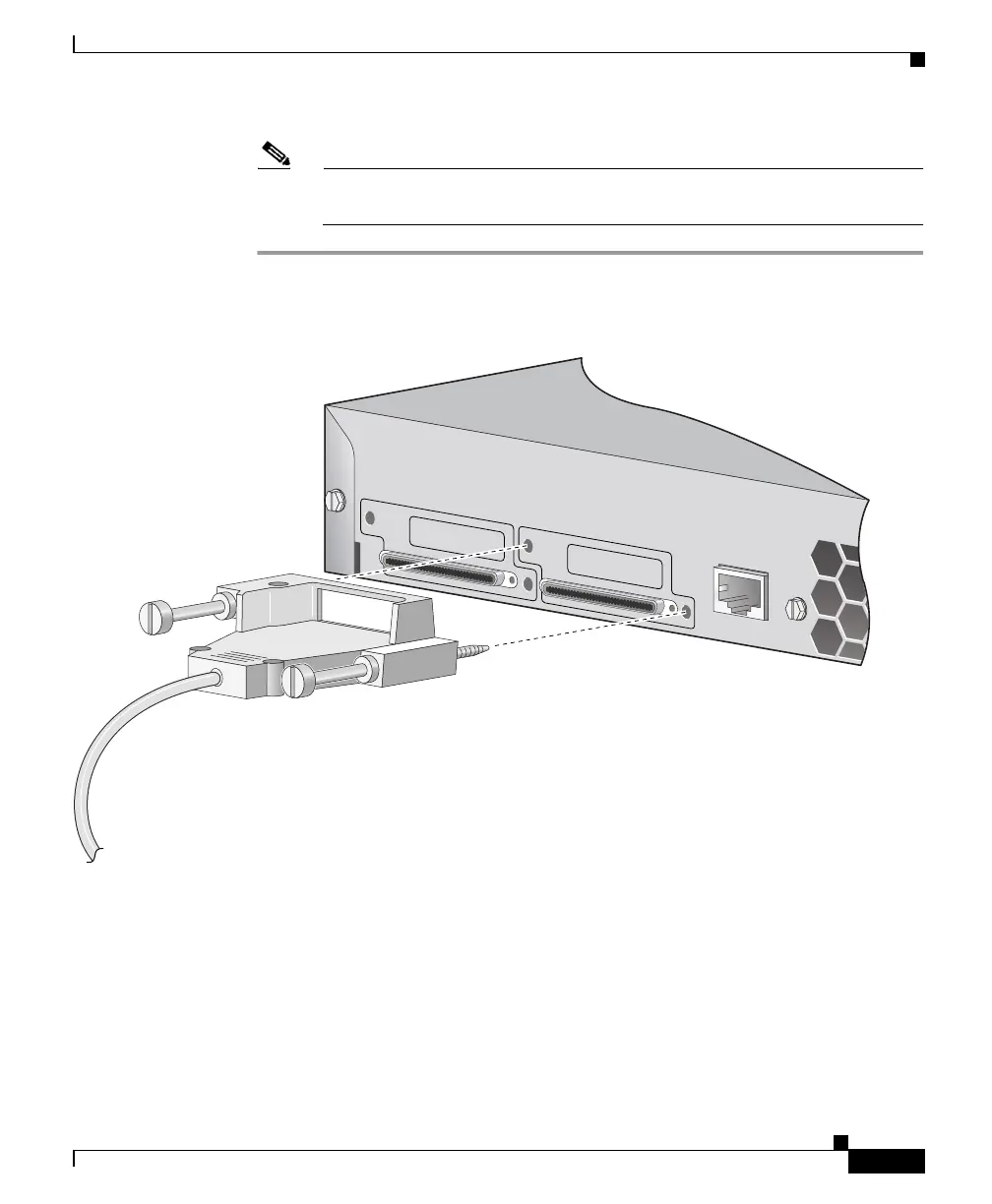

Figure 3-34 Inserting the StackWise Cable in a StackWise Port
When you need to remove the StackWise cable from the connector, make sure to
fully unscrew the screws before removing the connector. Also make sure that you
remove the correct screws from the StackWise port. See Figure 3-35 for correct
removal procedures and Figure 3-36 for incorrect removal procedures.
